Knock Sensor Replacement

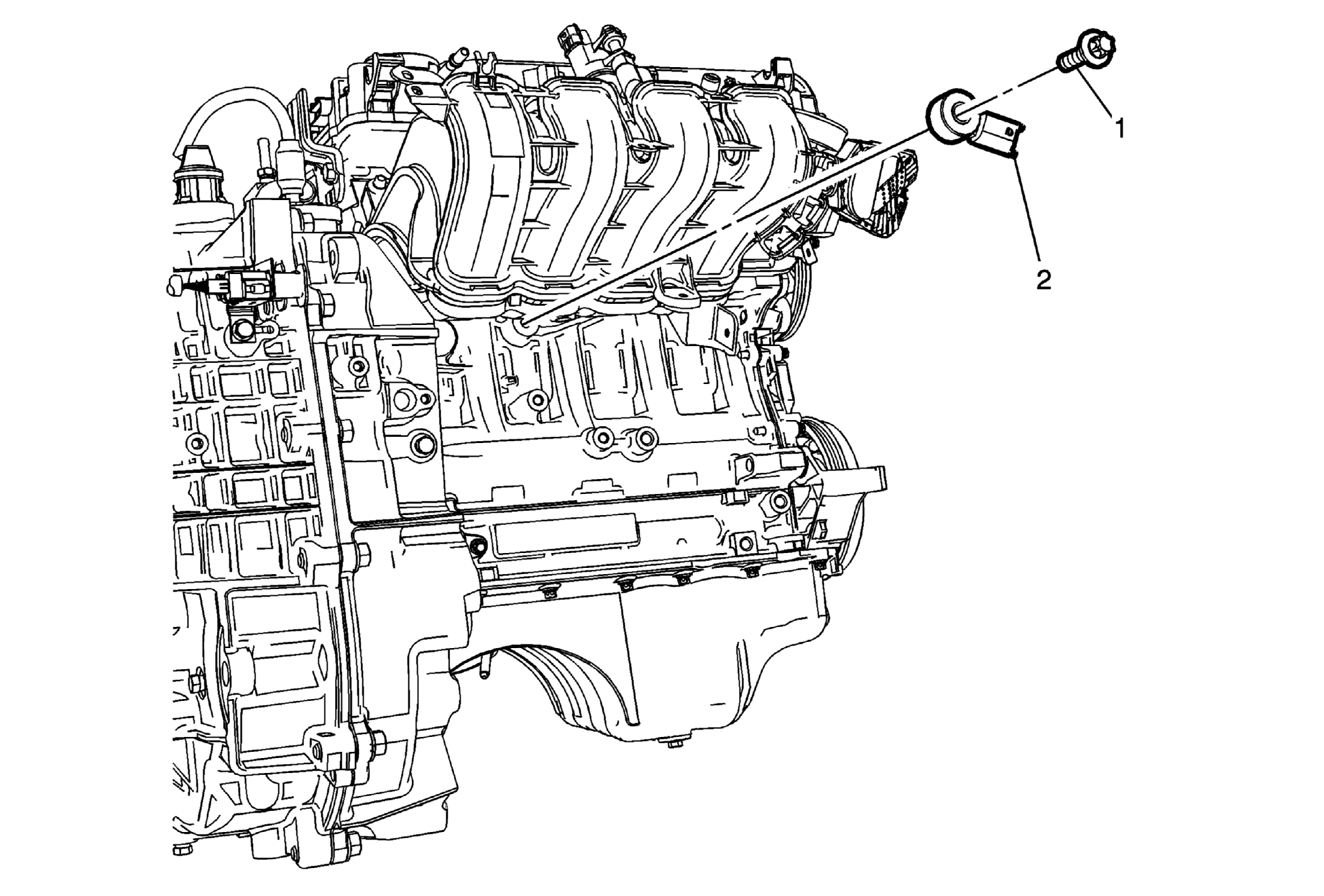

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.Do not use a service jack in locations other than those specified to lift this vehicle. Lifting the vehicle with a jack in those other locations could cause the vehicle to slip off the jack and roll; this could cause injury or death. |
|
| 1 | Knock Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 20 N.m (15 lb ft) |
| 2 | Knock Sensor Procedure Disconnect the electrical connector. |
