2012 Chevrolet VoltFACTORY OEM SERVICE PROCEDURE
Installation Procedure

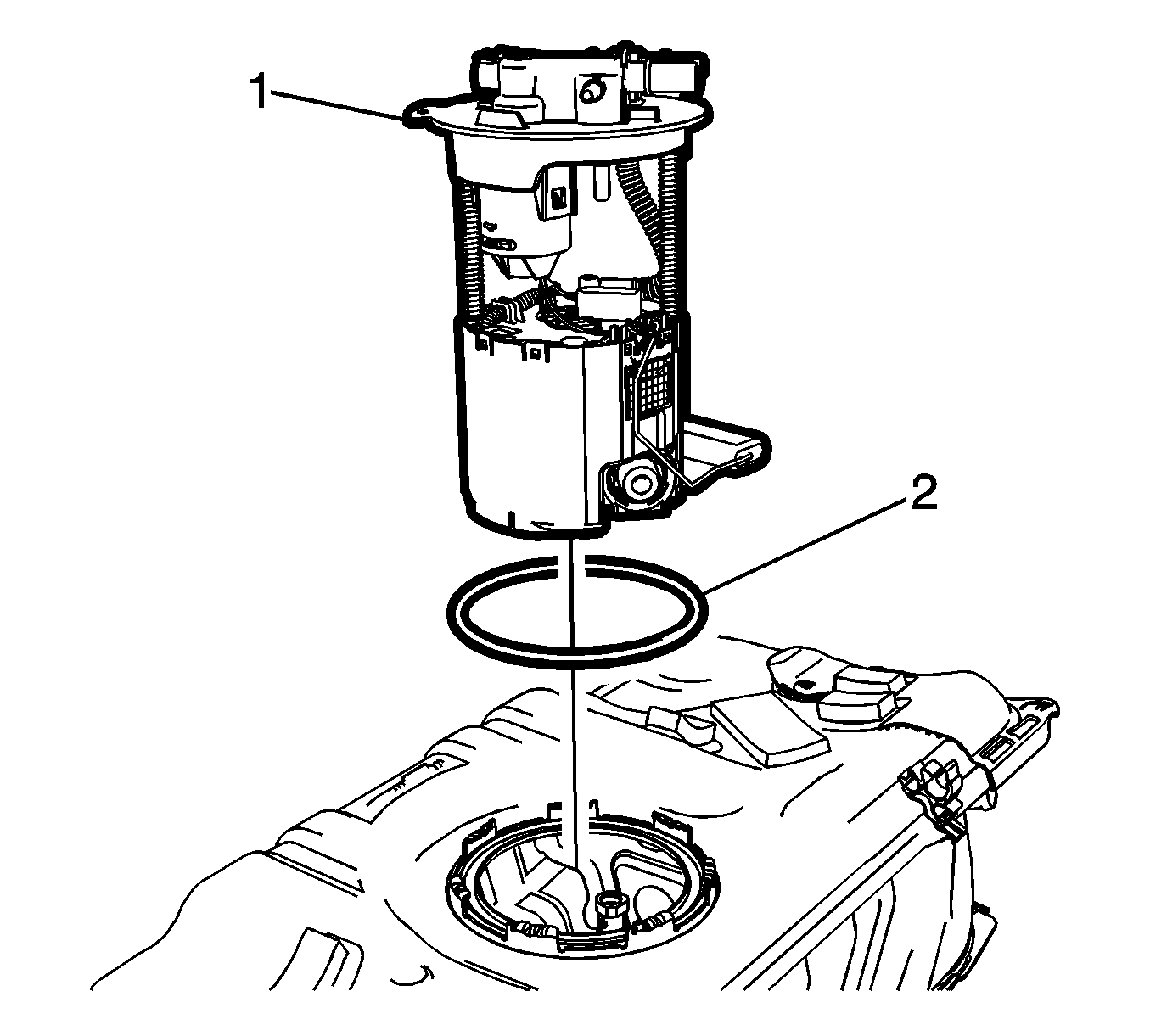

- Install a NEW O-ring (2) and the fuel pump module (1).
- Connect the vent valve connector (1). Refer to Plastic Collar Quick Connect Fitting Service .

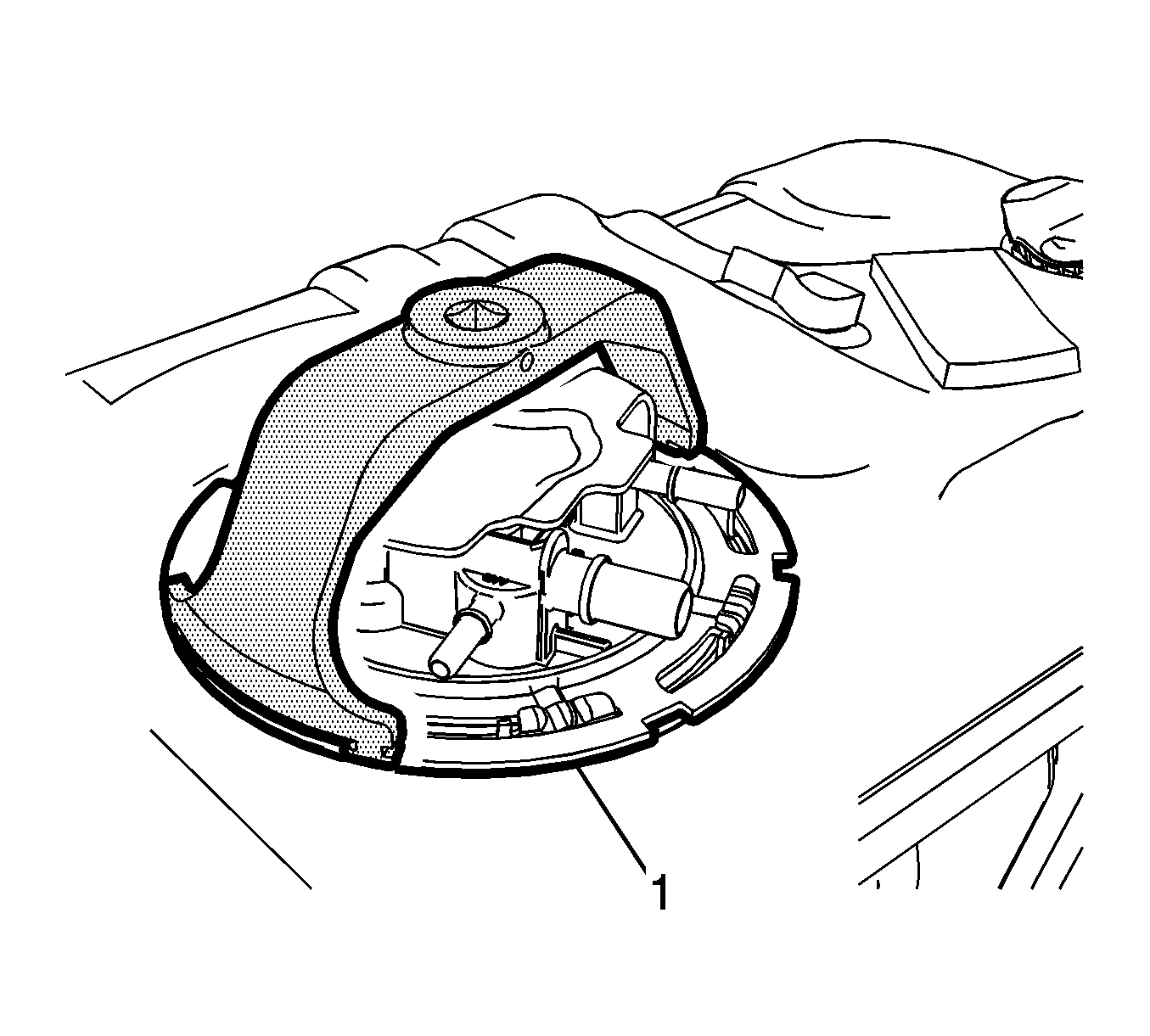

- Using the CH 45722 wrench, install the lock ring (1) by turning clockwise.

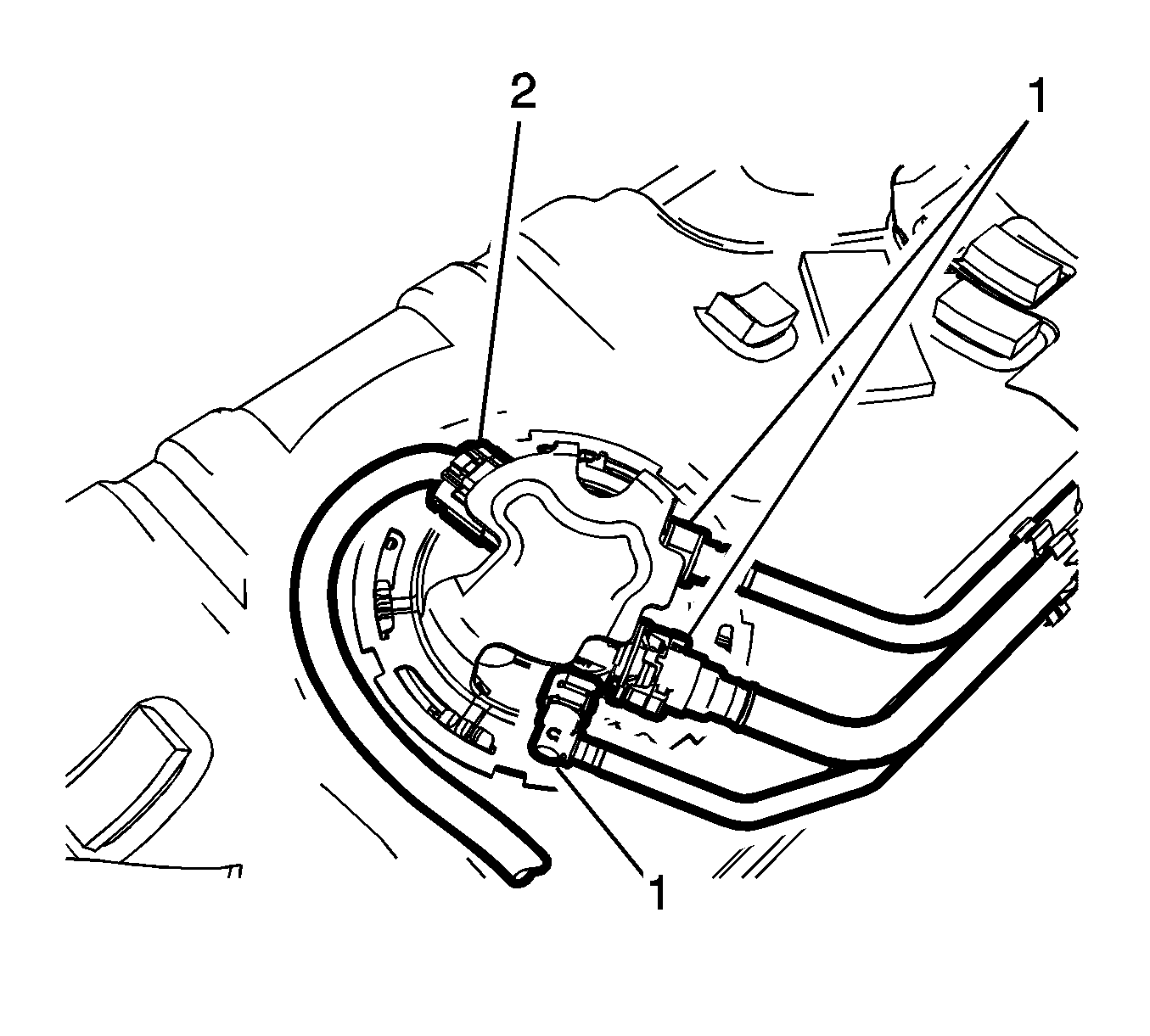

- Connect the electrical connector (2).
- Connect the evaporative emission and fuel lines (1). Refer to Plastic Collar Quick Connect Fitting Service .
- Install the fuel tank. Refer to Fuel Tank Replacement .
