2012 Chevrolet VoltFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor Replacement (Intake)
Camshaft Position Sensor Replacement (Intake)

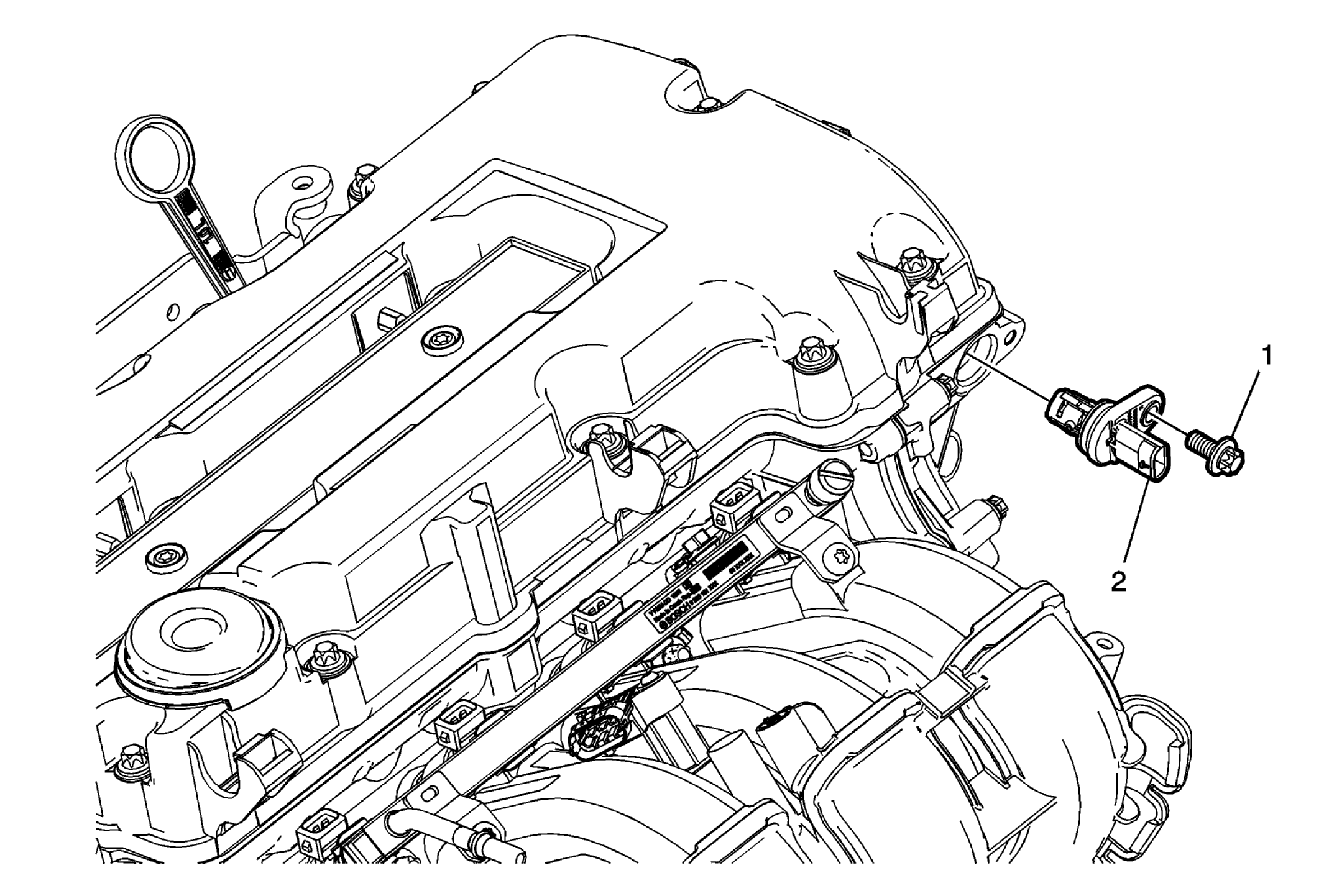

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air cleaner resonator duct. Refer to Air Cleaner Resonator Outlet Duct Replacement . |
|
| 1 | Camshaft Position Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 8 N.m (71 lb in) |
| 2 | Camshaft Position Sensor Procedure Disconnect the electrical connector. |
