Air Cleaner Assembly Replacement

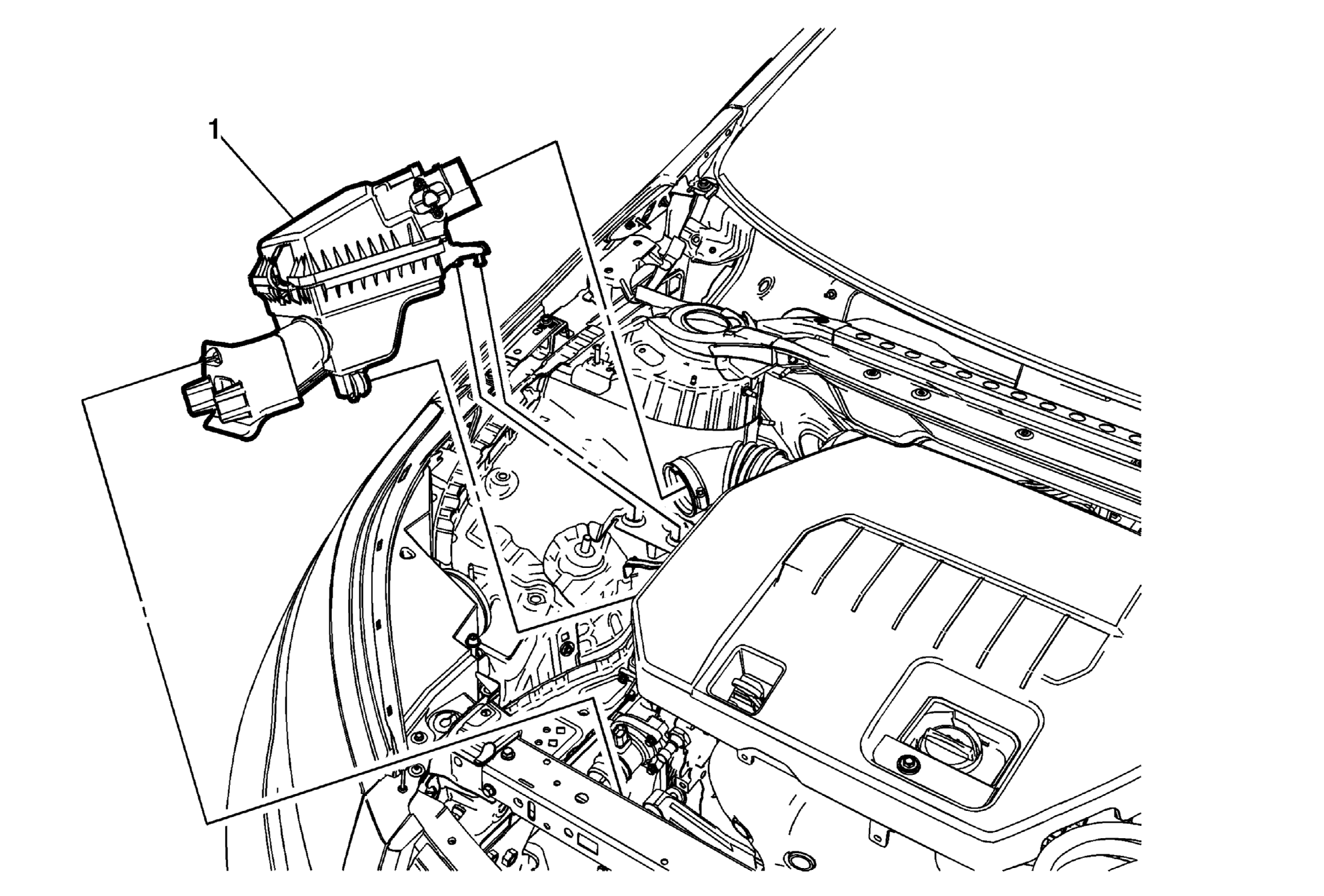

| Callout | Component Name |
|---|---|
|
Preliminary Procedures
|
|
| 1 | Air Cleaner Assembly Procedure
NOTE:
Ensure lower flap of Air Inlet Tube is positioned between Wiring Harness and CRFM, the Flap should not overlap harness. Squeezing the air inlet tube (squeezing the lower flap upward) during install, the flap will clear the harness and fall into the correct location when the upper retainer is secured. |
