2012 Chevrolet VoltFACTORY OEM SERVICE PROCEDURE

Theft Deterrent Module Replacement

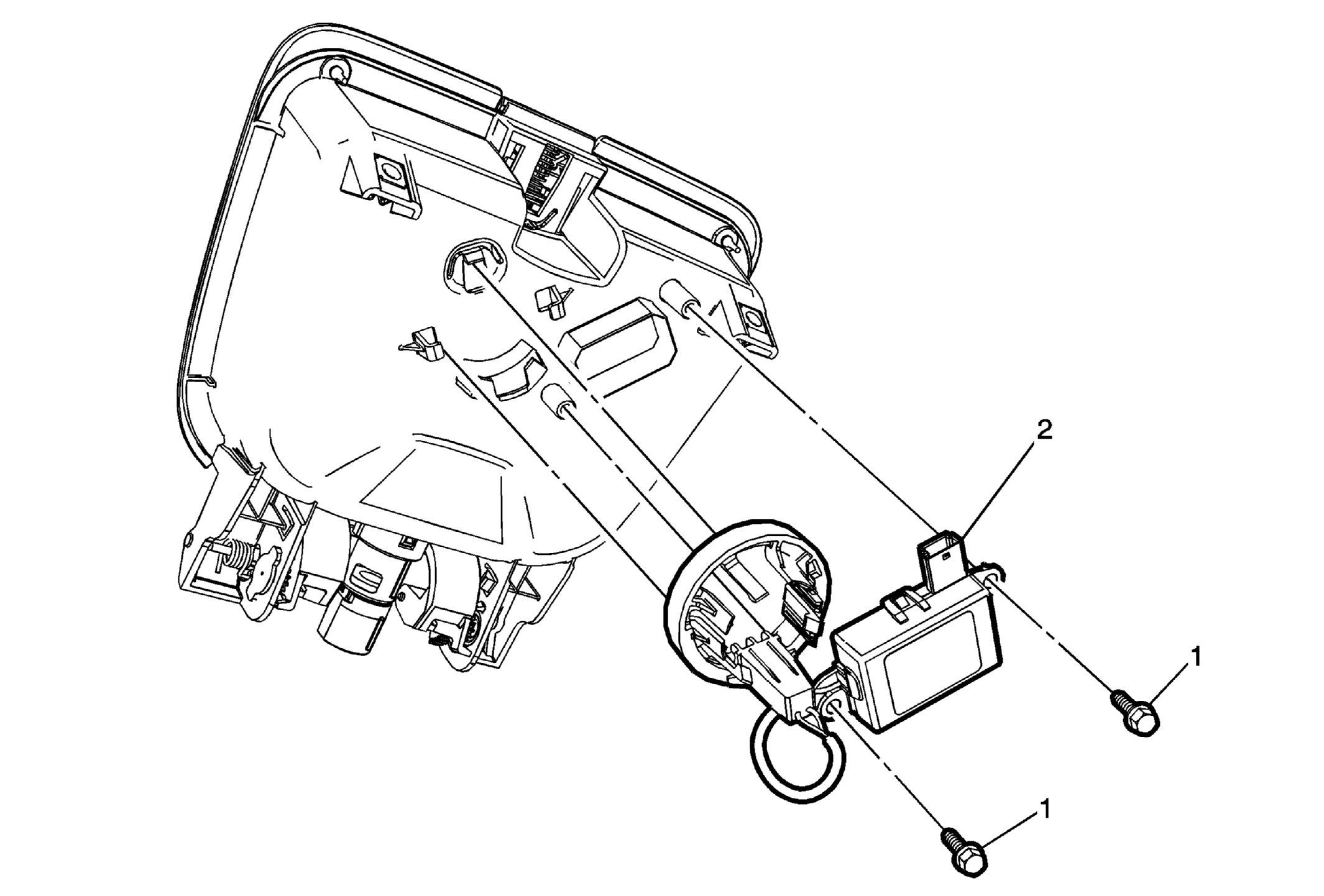

Fig 1: Theft Deterrent Module

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the instrument panel upper center compartment. Refer to Instrument Panel Upper Center Compartment Replacement .

Theft Deterrent Module Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Theft Deterrent Module

Procedure

Disconnect the electrical connector.
Disengage the tabs on the module.
Refer to Control Module References for programming and set up procedures.
