2012 Chevrolet VoltFACTORY OEM SERVICE PROCEDURE

Center Console Components

Component Name	Callout
T10E Keyless Entry Antenna - Rear Compartment	1
T10K Keyless Entry Antenna - Center Console Rear	2
X80H Accessory Power Receptacle - Center Console	3
X92 USB Receptacle	4
X83 Auxiliary Audio Input	5
X80L Accessory Power Receptacle - Rear Console	6

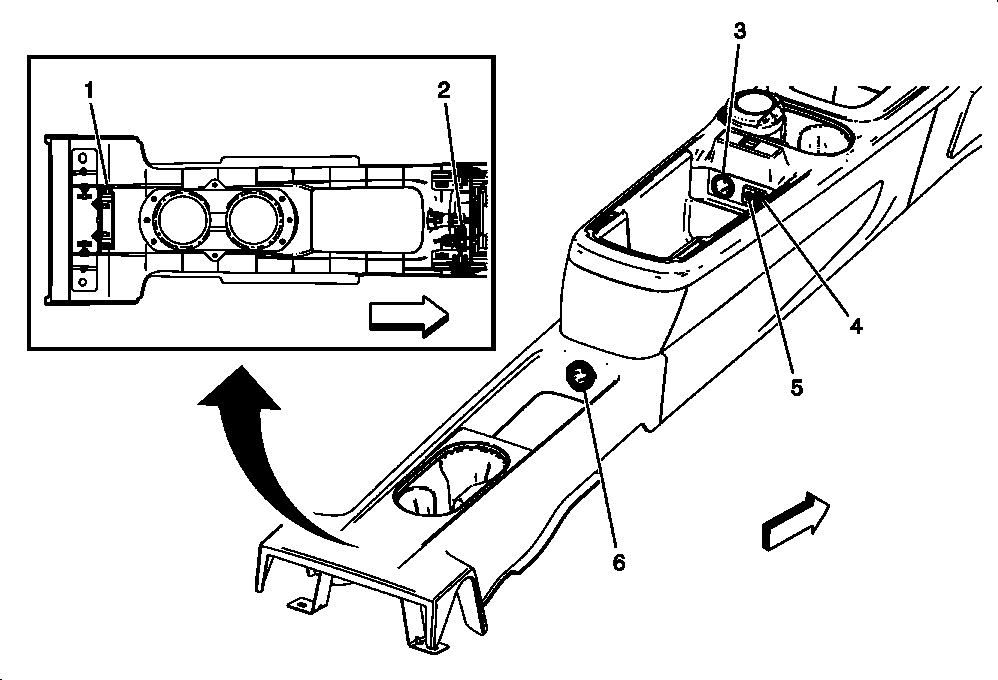

Fig 1: Locating Center Console Components

Courtesy of GENERAL MOTORS COMPANY
