2012 Chevrolet Volt L4-1.4L ElectFACTORY OEM SERVICE PROCEDURE
Battery Control Module: Locations
Wheels/Vehicle Underbody Component Views

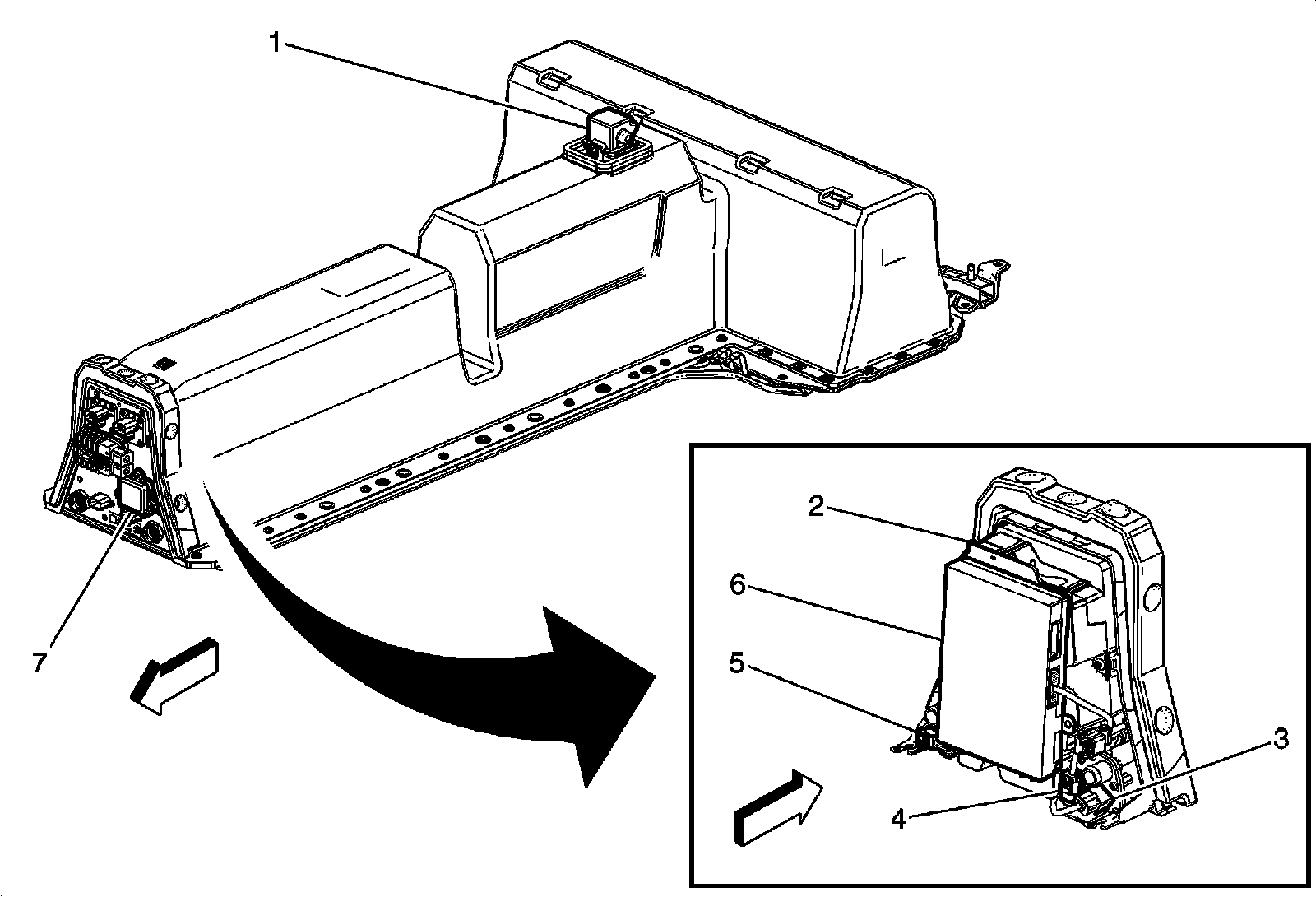

Underbody - Hybrid/EV Battery Pack Assembly Components
1 - S15 Hybrid/EV Battery Pack High Voltage Manual Disconnect Lever
2 - A28 Hybrid/EV Battery Contactor Assembly
3 - E54 Hybrid/EV Battery Pack Coolant Heater
4 - B204A Hybrid/EV Battery Pack Coolant Temperature Sensor 1
5 - B204B Hybrid/EV Battery Pack Coolant Temperature Sensor 2
6 - K16 Battery Energy Control Module
7 - F115 Hybrid/EV Battery Pack Fuse Cover
