2012 Chevrolet Volt L4-1.4L ElectFACTORY OEM SERVICE PROCEDURE
Steering Column Components
Instrument Panel/Center Console Component Views

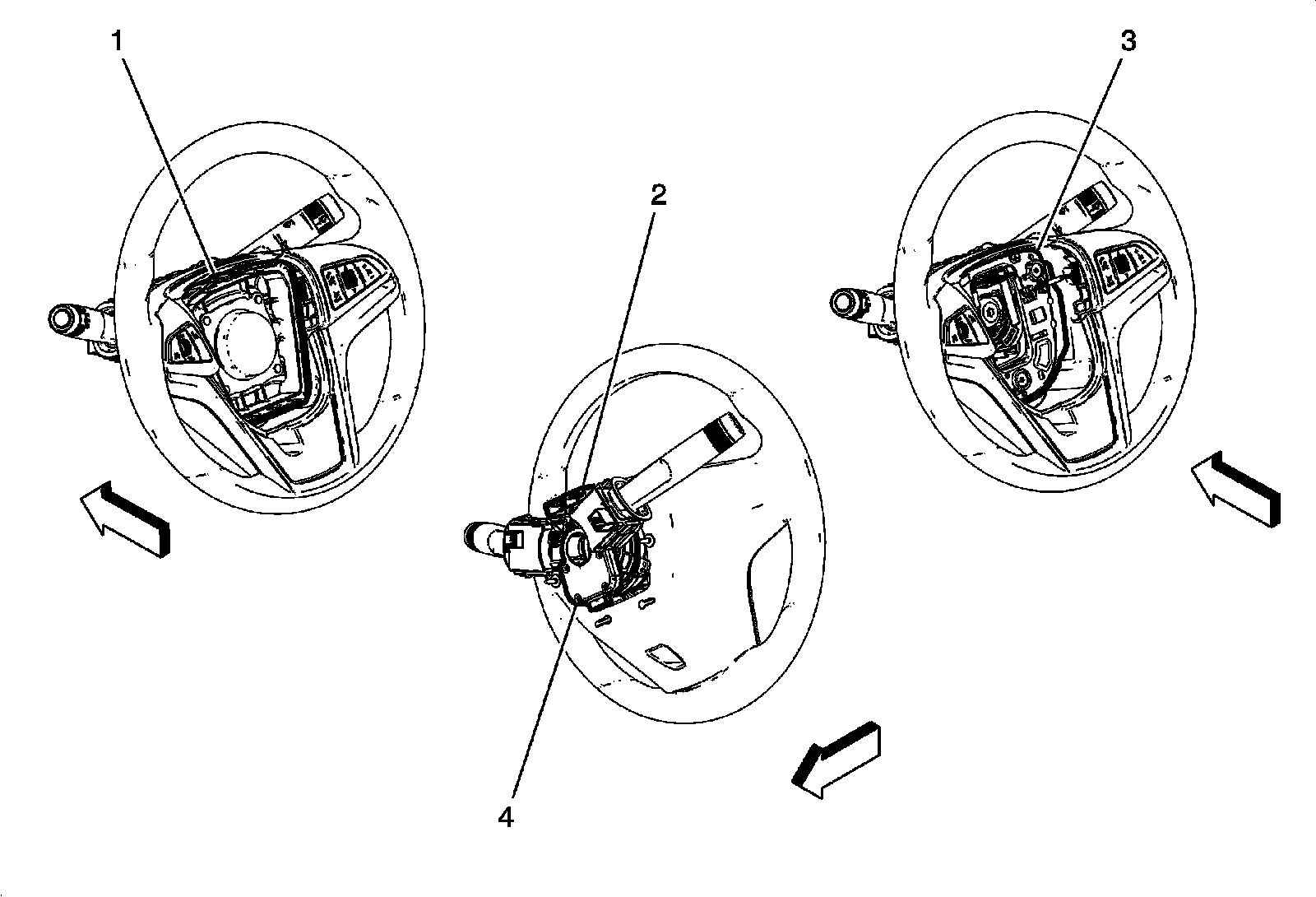

Steering Column Components
1 - F107 Steering Wheel Air Bag
2 - X85 Steering Wheel Air Bag Coil
3 - S33 Horn Switch
4 - B99 Steering Wheel Angle Sensor
