2012 Chevrolet Traverse LS, AWDFACTORY OEM SERVICE PROCEDURE
Headlamp Control Module Replacement (Enclave)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

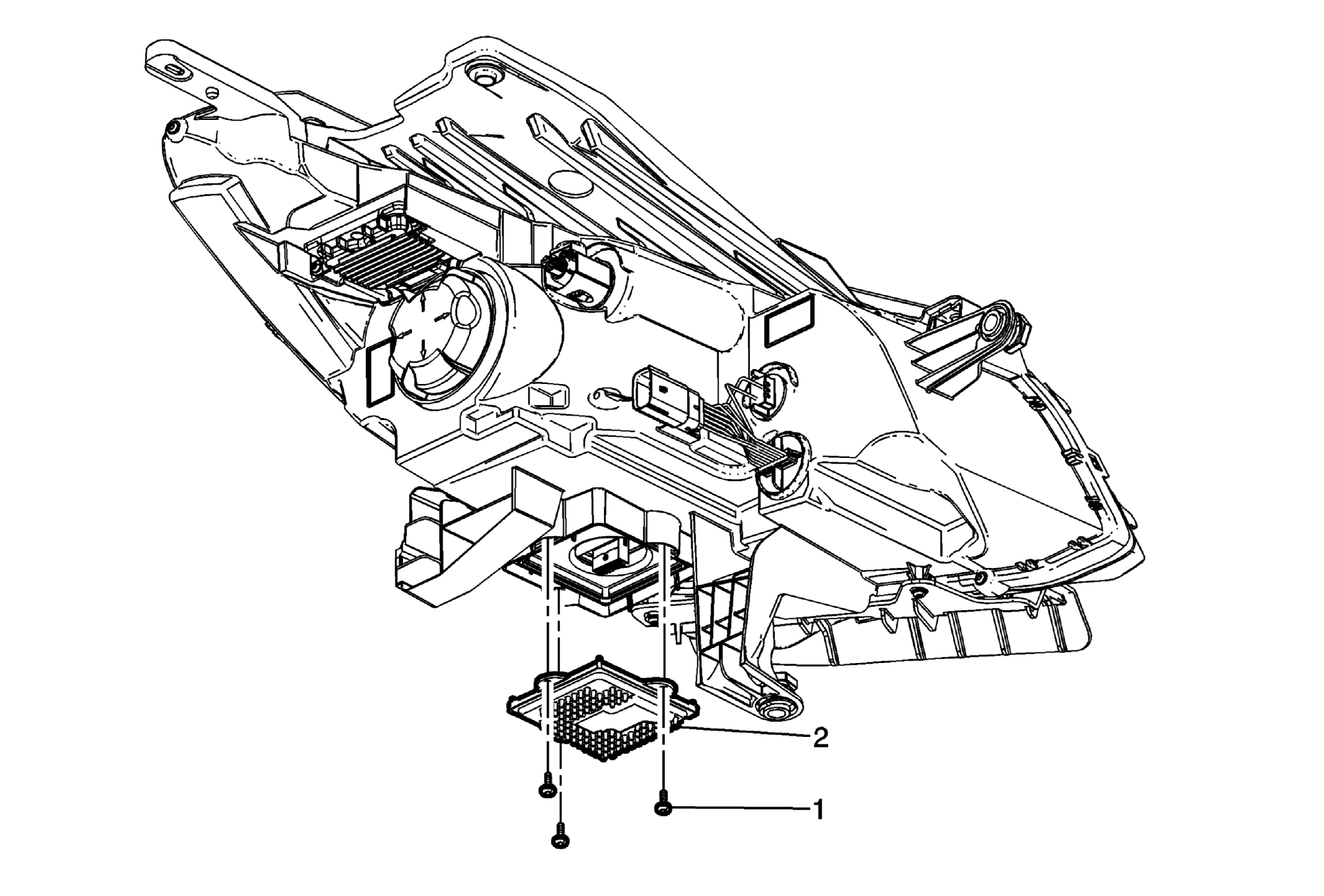

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the headlamp. Refer to Headlamp Replacement (Enclave) . |
|
| 1 | Headlamp Control Module Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . |
| 2 | Headlamp Control Module Procedure Disconnect the electrical connector. |
