2012 Chevrolet Traverse LS, AWDFACTORY OEM SERVICE PROCEDURE
Audio System Transceiver Module Replacement (U42/C3U)
WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Audio System Transceiver Module Replacement (U42/C3U)

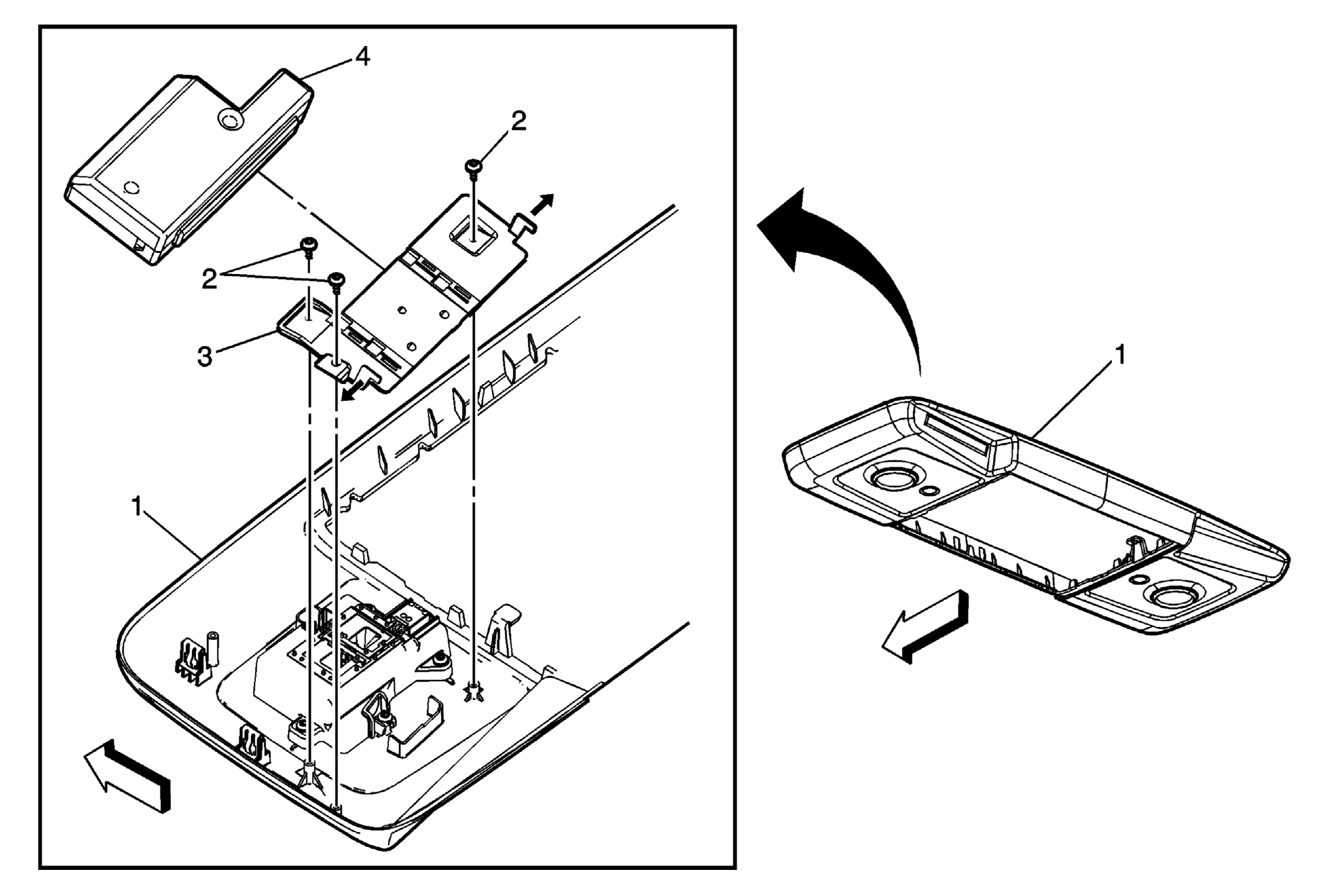

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the video display assembly. Refer to Video Display Replacement (U42) or Video Display Replacement (U42/C3U) . |
|
| 1 | Roof Console Assembly Refer to Roof Rear Console Replacement (with RPO C3U) or Roof Rear Console Replacement (without RPO C3U) . |
| 2 | Audio System Transceiver Module Mounting Bracket Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 3 | Audio System Transceiver Module Mounting Bracket |
| 4 | Audio System Transceiver Module Assembly Procedure
|
