Installation Procedure

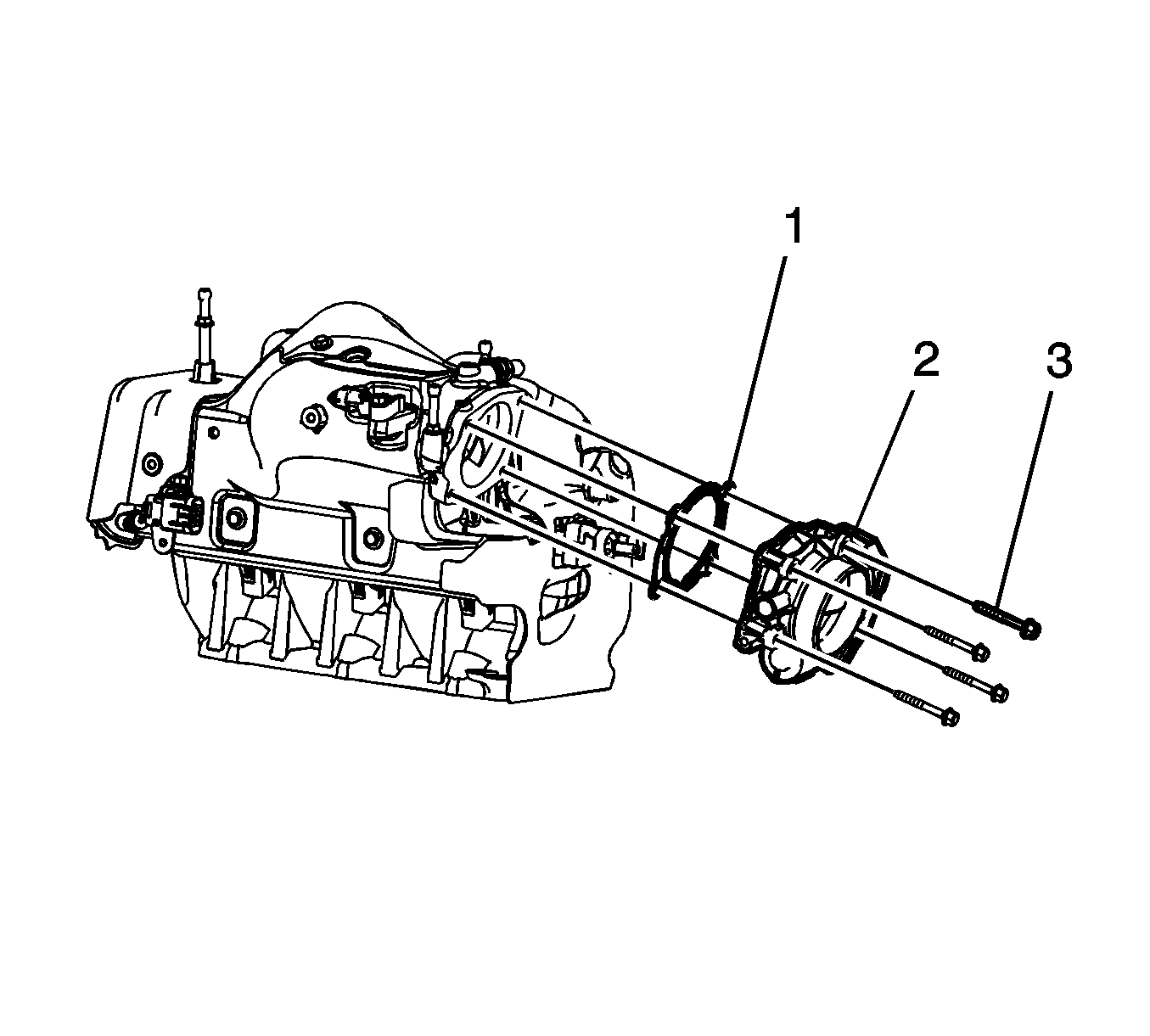

- Position a NEW throttle body gasket (1) and throttle body (2) to the upper intake manifold.
- Install the throttle body bolts (3).
Tighten
Tighten the bolts to 10 N.m (89 lb in).

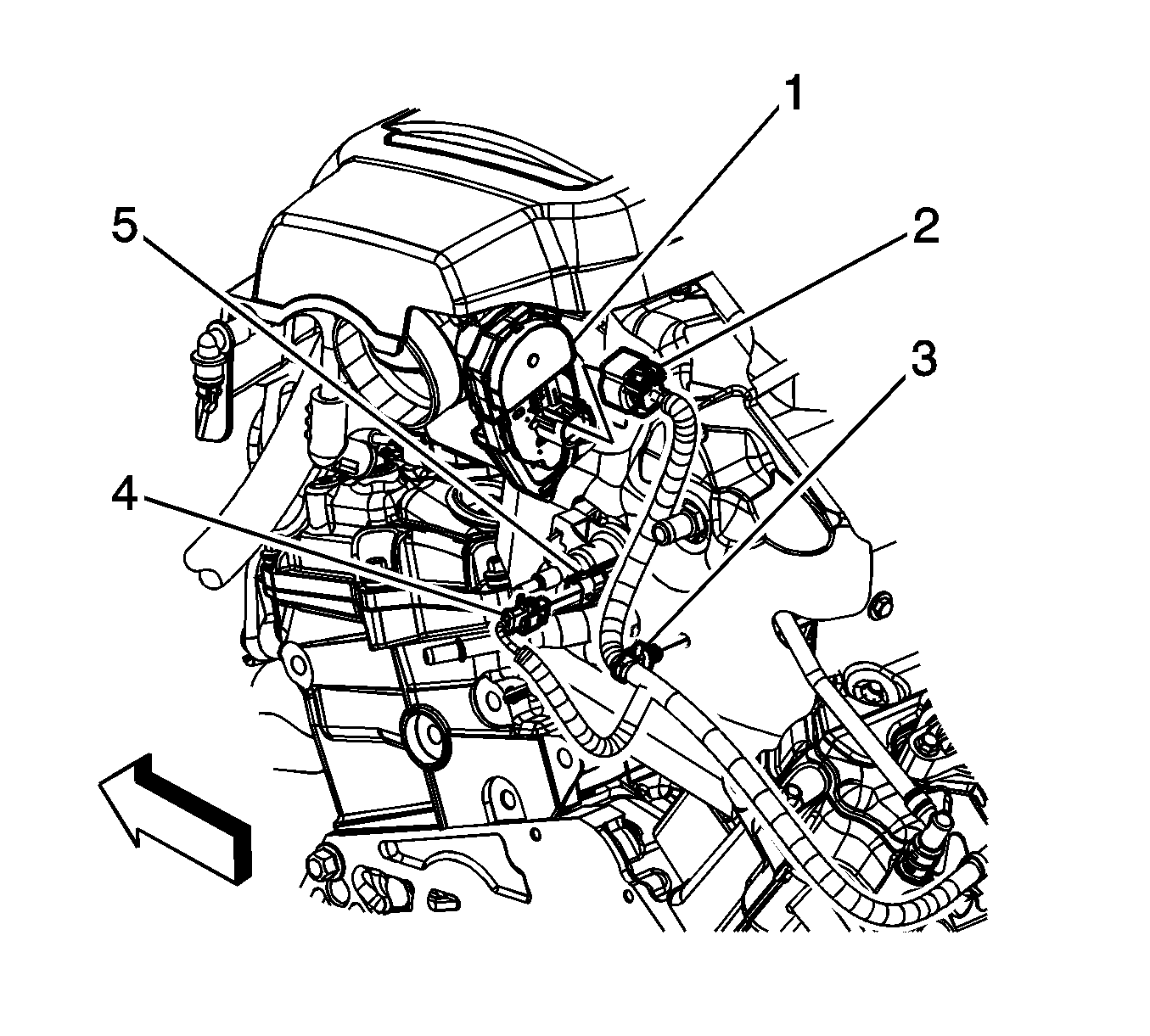

- Connect the engine wiring harness electrical connector (2) to the electronic throttle control (1).
- Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
- Perform the throttle learn procedure. Refer to Throttle/Idle Learn .
Refer to Fastener Caution .
