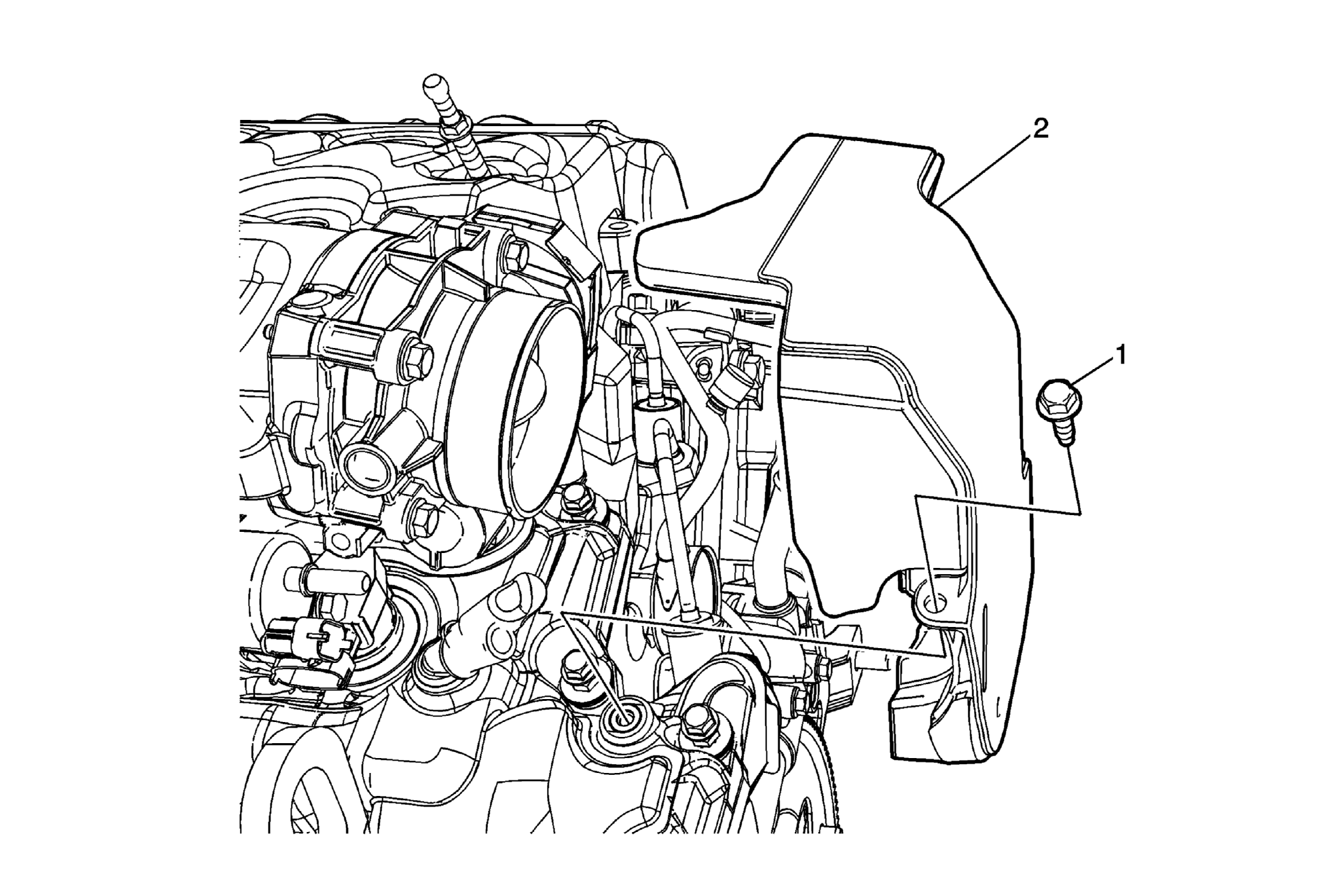

Fuel Pipe Shield Replacement
| Callout | Component Name |
|---|---|
|
Preliminary Procedures
|
|
| 1 | Fuel Pump Shield Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10Y (89 lb in) |
| 2 | Fuel Pump Shield |
