2012 Chevrolet Traverse LS, AWDFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the fuel tank module. Refer to Fuel Tank Module Replacement .
- Push down on the fuel level sensor electrical connector tab (1), disengaging the retainer, and disconnect the electrical connector.
- Remove the fuel level sensor wiring from under the module clip (2).

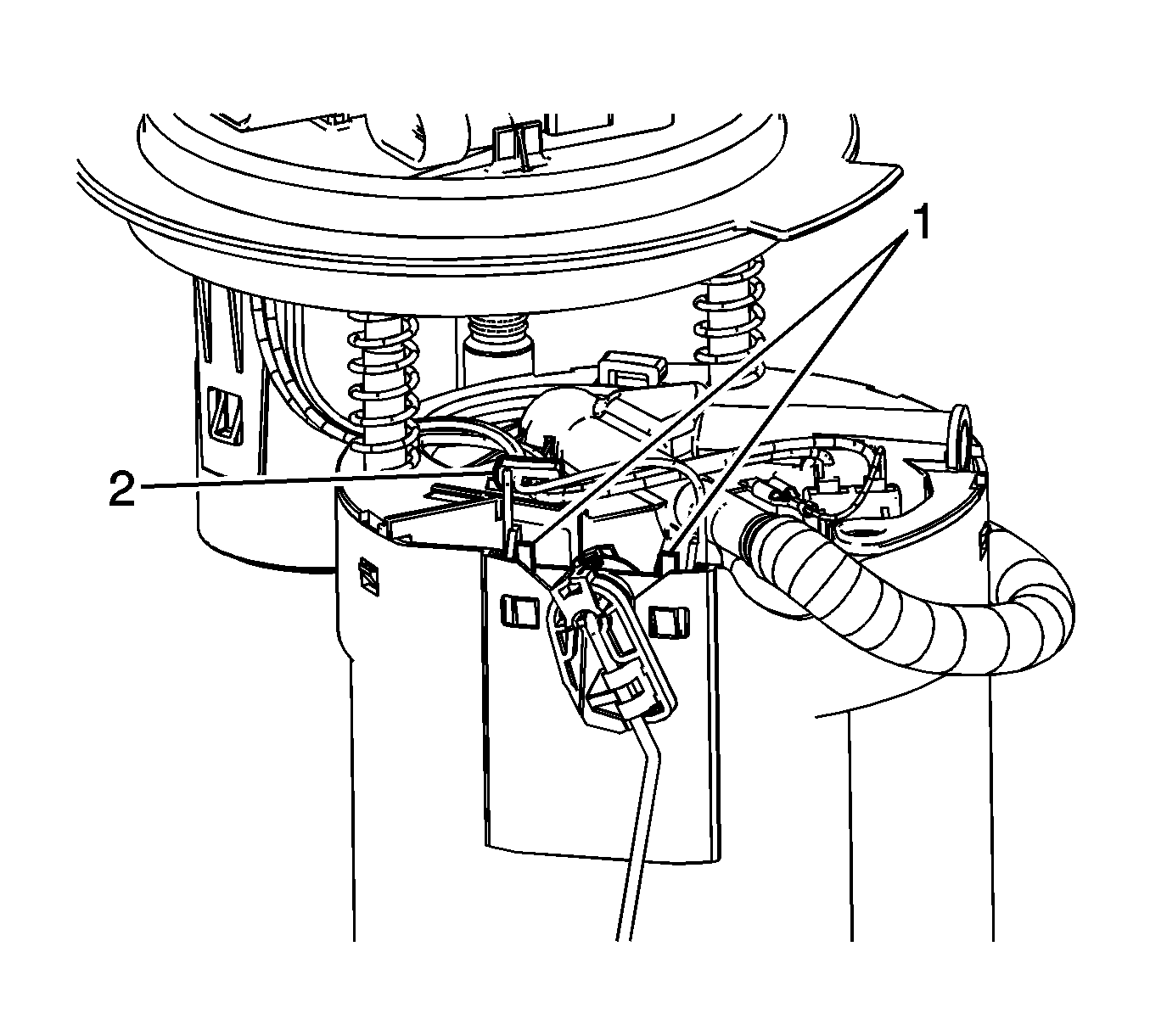

- Push in the fuel level sensor tabs (1) disengaging the sensor clips from the module bucket.

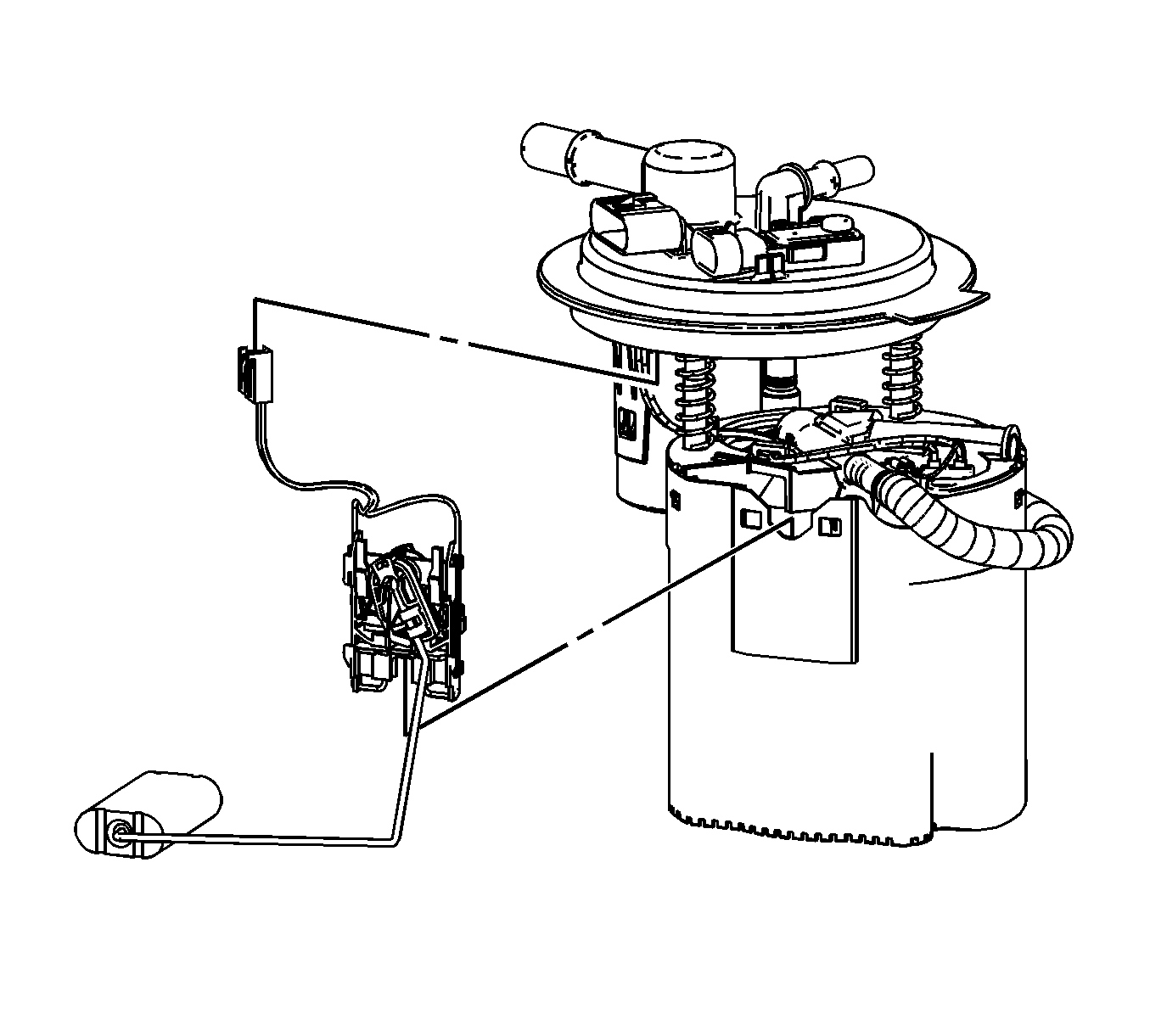

- Slide the fuel level sensor up out from the module bucket.
