2012 Chevrolet Traverse LS, AWDFACTORY OEM SERVICE PROCEDURE
Installation Procedure

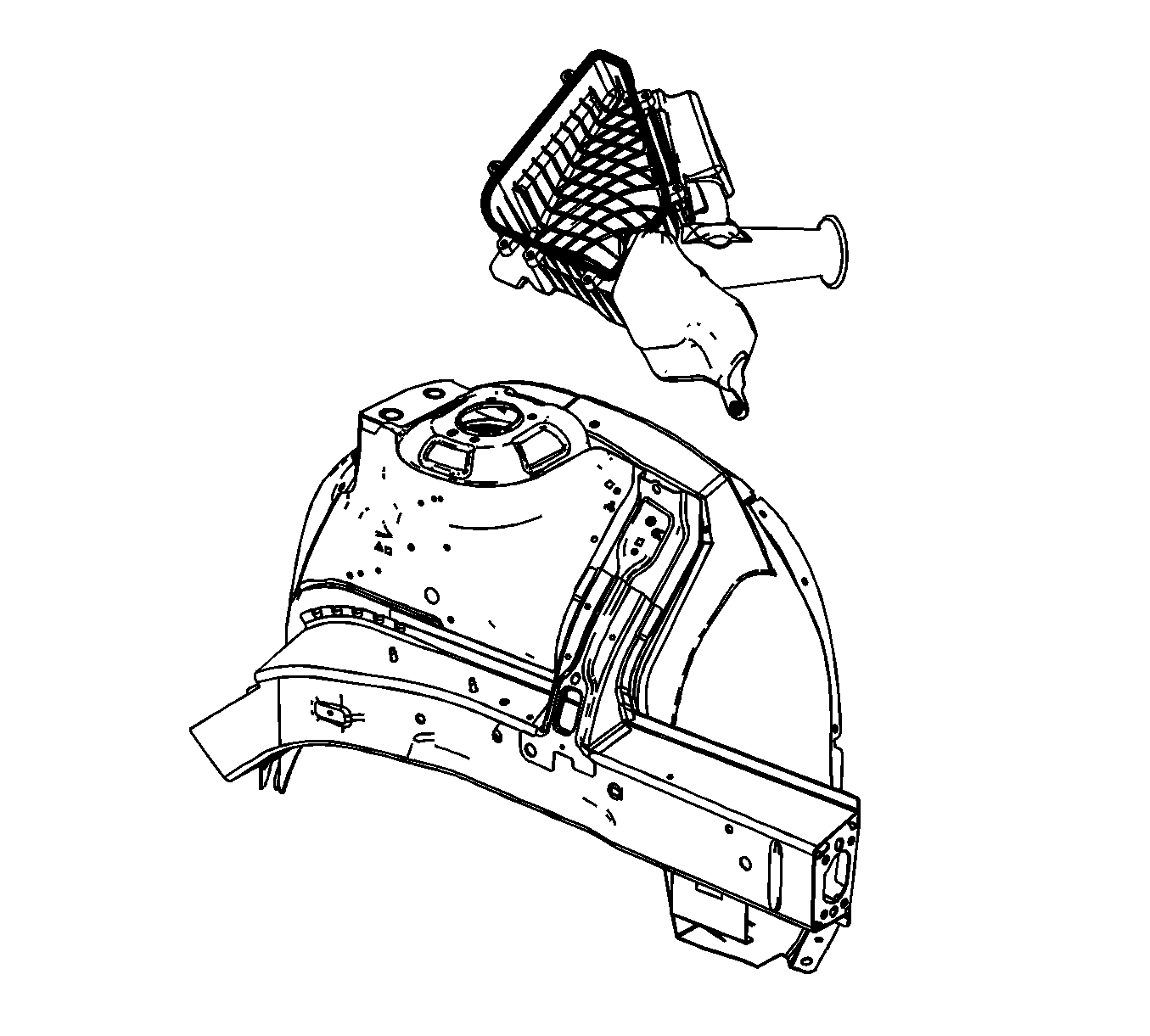

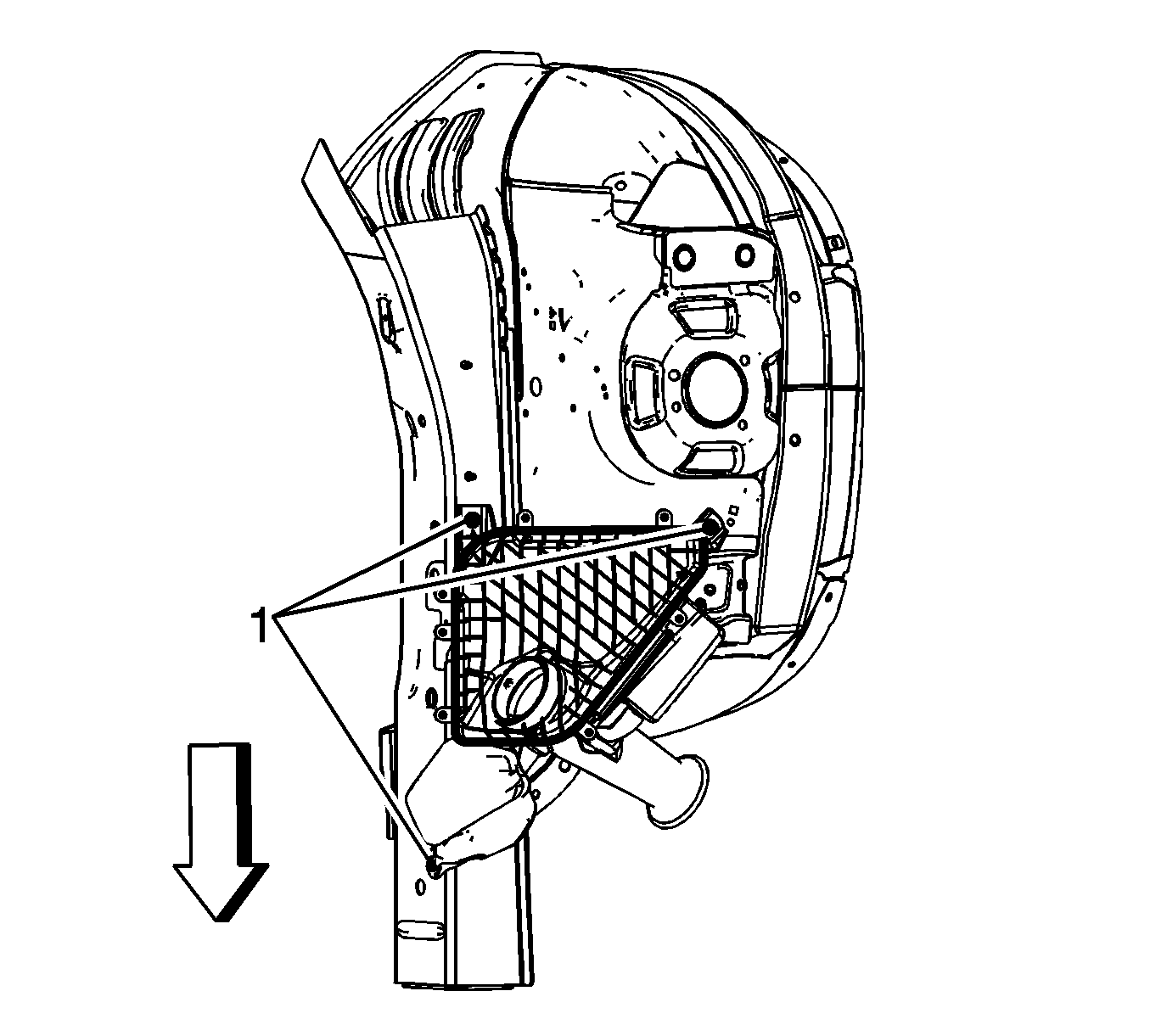

- Position the air cleaner lower housing to the side rail.
- Position and install the ECM to the bracket.

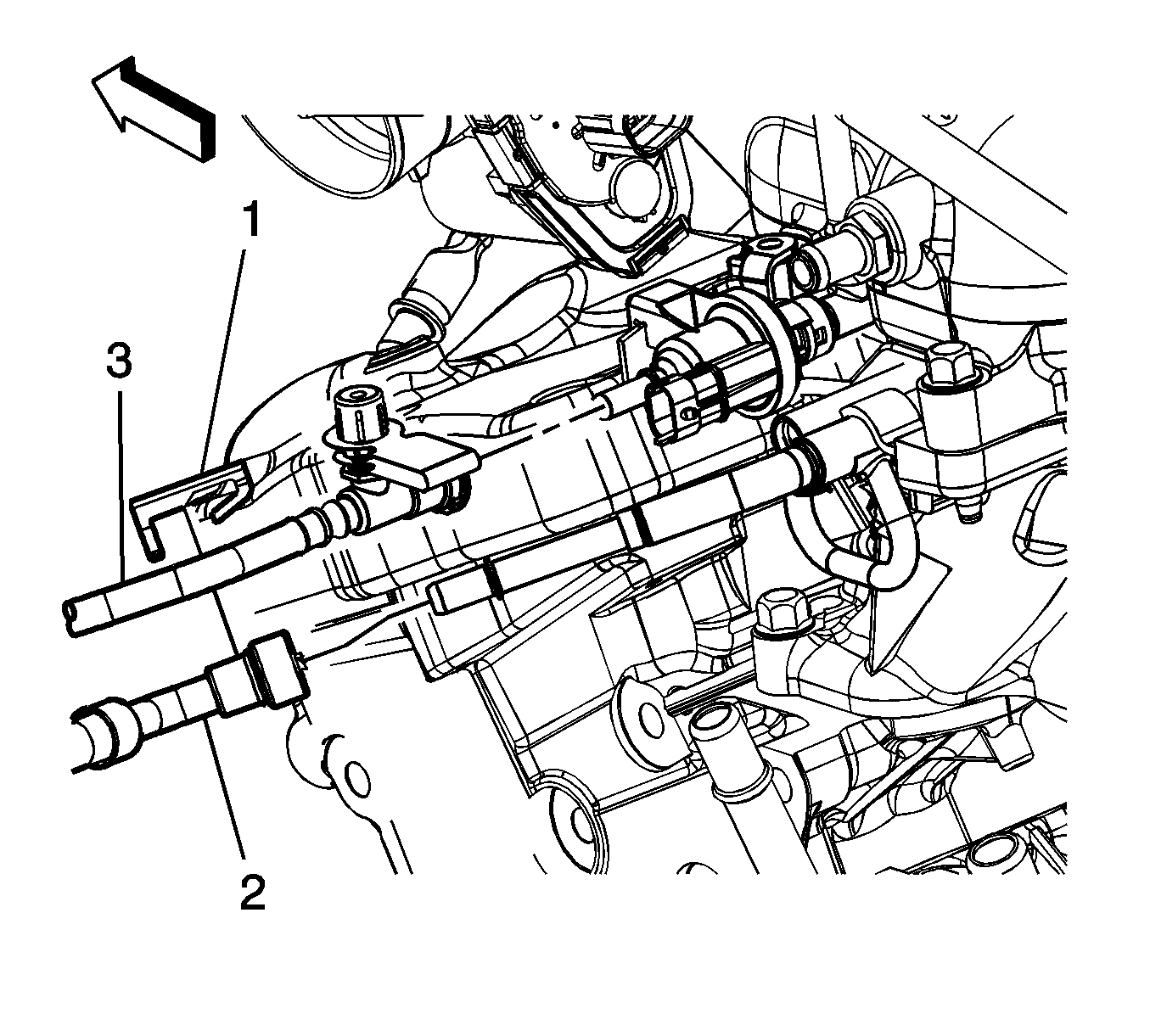

- Connect the evaporative emission (EVAP) pipe (3) quick connect fitting to the EVAP purge solenoid. Refer to Plastic Collar Quick Connect Fitting Service .
- Connect the fuel feed pipe (2) quick connect fitting to the fuel rail. Refer to Metal Collar Quick Connect Fitting Service .

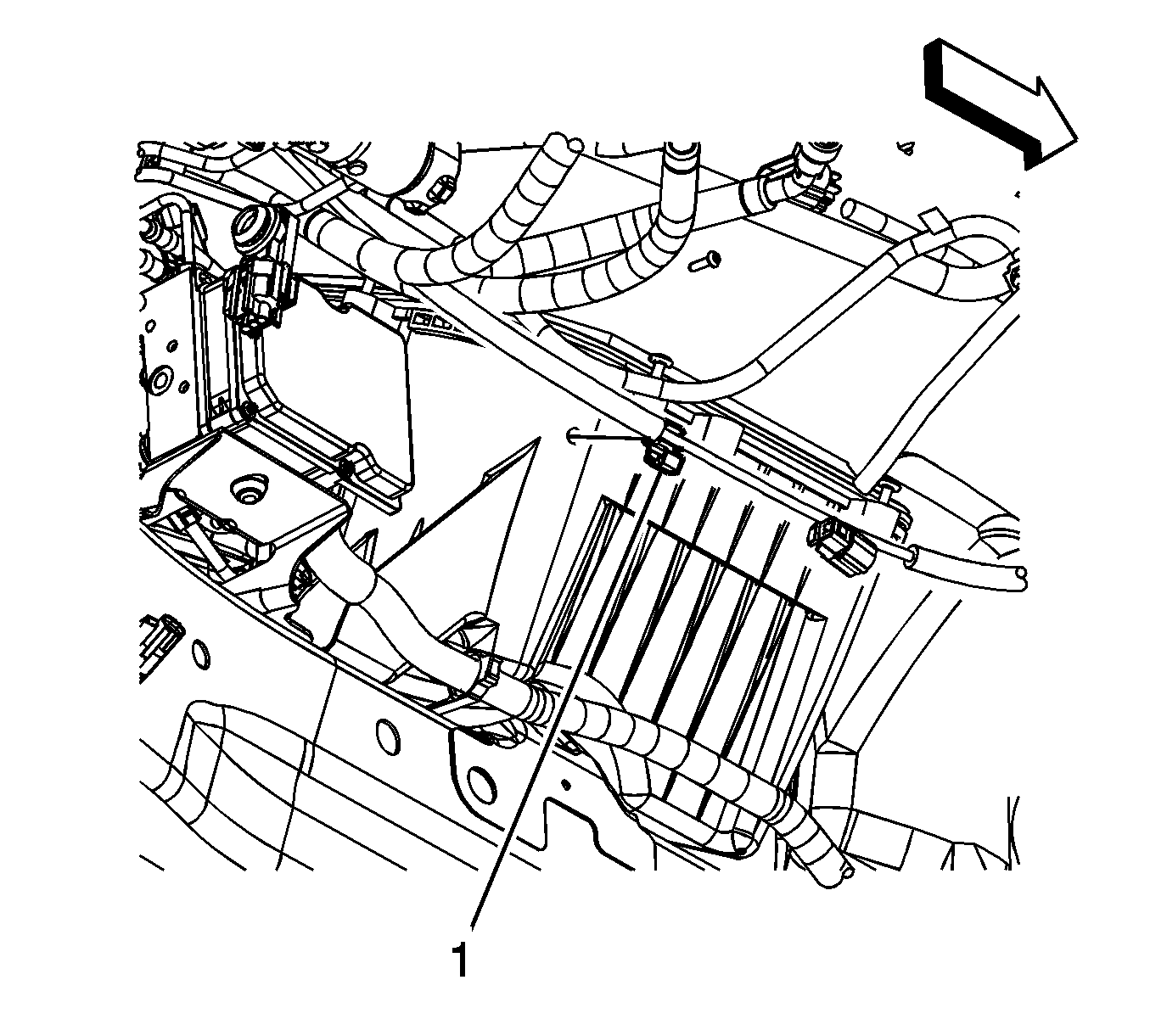

- Install the hood release cable clip (1) to the air cleaner lower housing.
