2012 Chevrolet Traverse LS, AWDFACTORY OEM SERVICE PROCEDURE
Installation Procedure

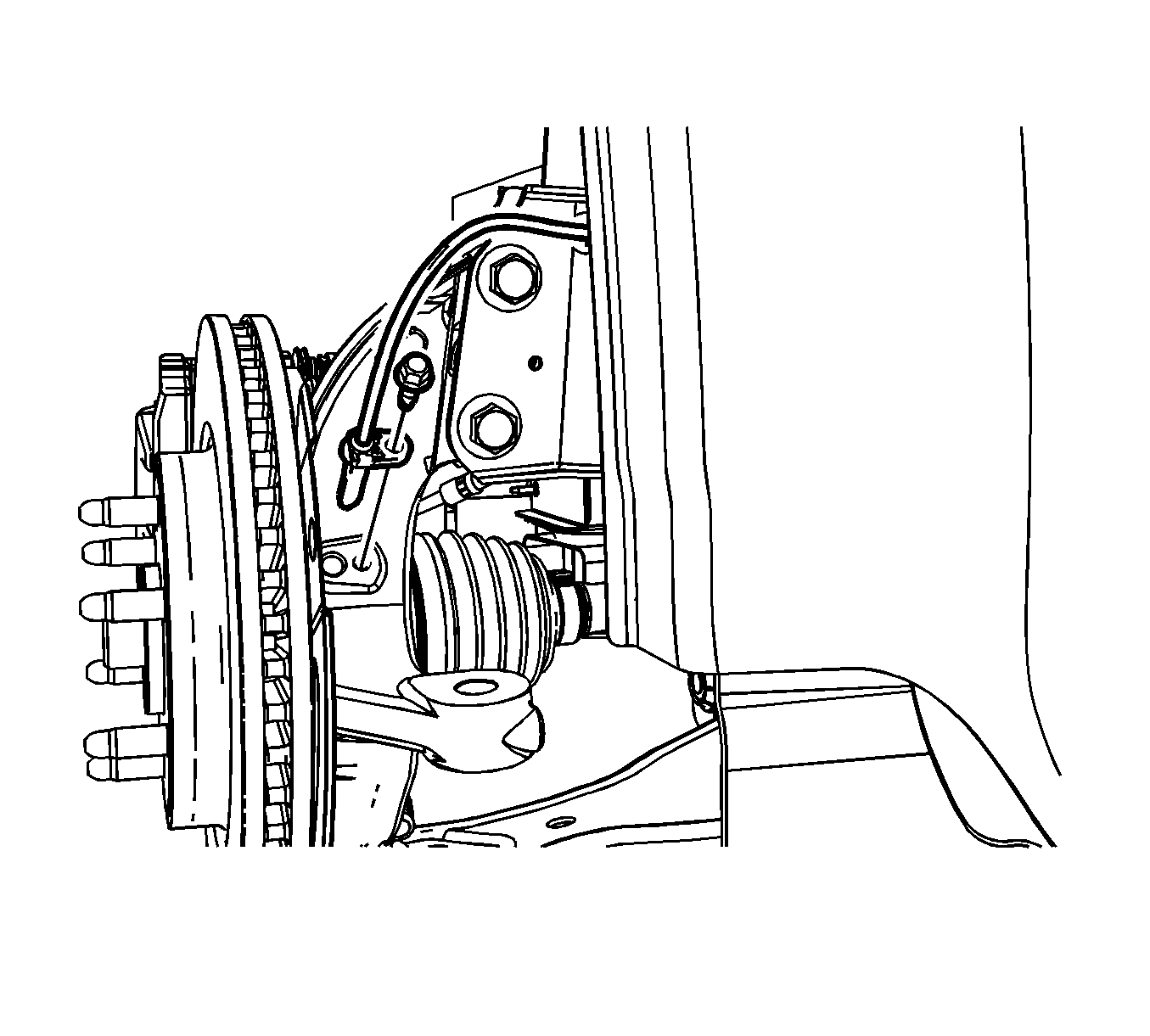

- Install the wheel speed sensor to the steering knuckle.
- Install the wheel speed sensor bolt.
Tighten
Tighten the bolt to 9 N.m (80 lb in).

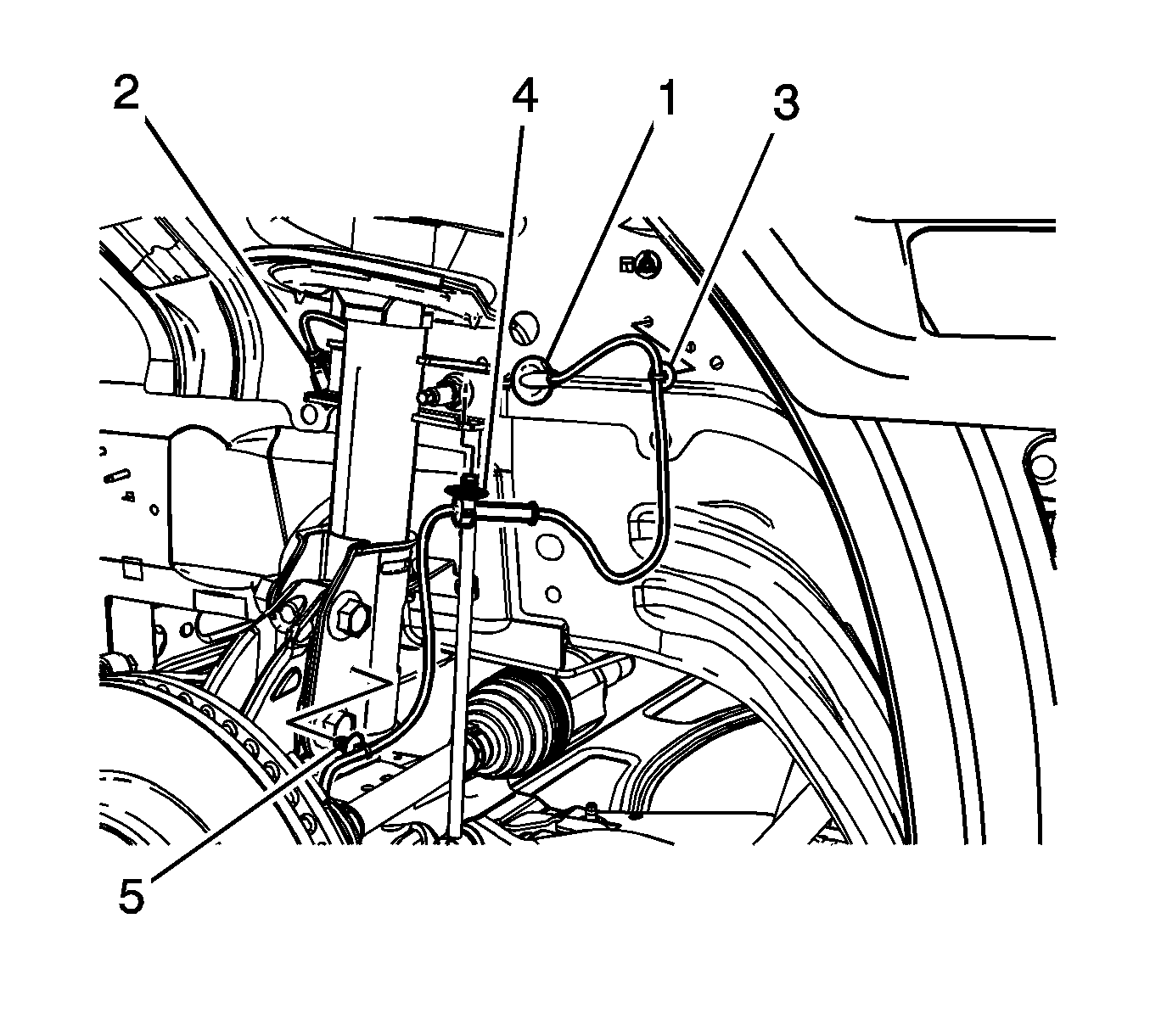

- Install the wheel speed sensor wire harness routing clips (4) and (5) to the suspension strut.
- Insert the wheel speed sensor wire electrical connector (2) through the wheel house hole.
- Seat the wheel speed sensor wire harness grommet (1) to the wheel house.

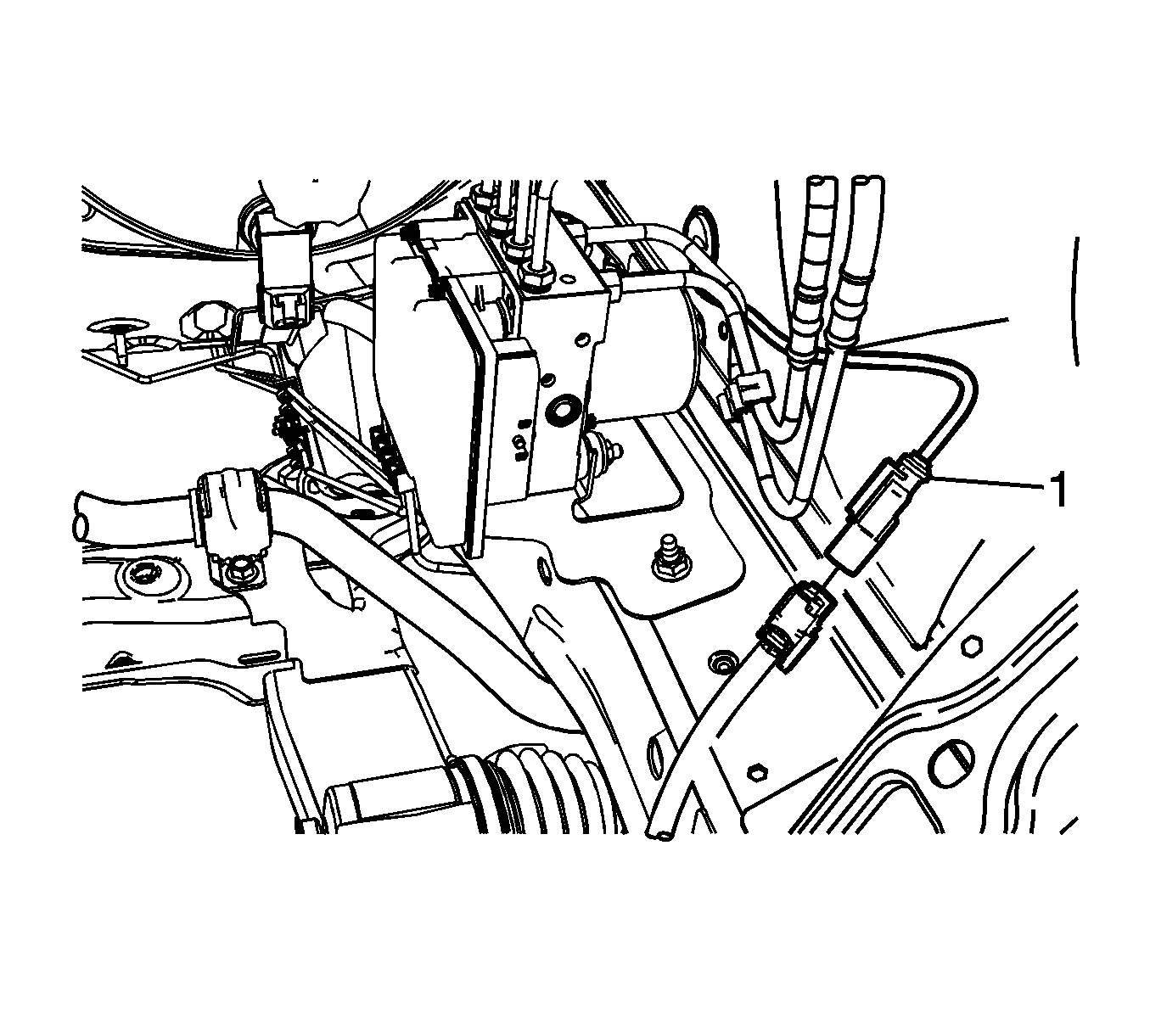

- Connect the wheel speed sensor electrical connector (1).
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- If replacing the right front wheel speed sensor, connect the battery positive junction block cables. Refer to Battery Positive Junction Block Cable Replacement .
- If replacing the left front wheel speed sensor, install the air cleaner element. Refer to Air Cleaner Element Replacement .
- Perform the Diagnostic System Check - Vehicle .
CAUTION:
Refer to Fastener Caution .
