2012 Chevrolet Traverse FWD V6-3.6LFACTORY OEM SERVICE PROCEDURE

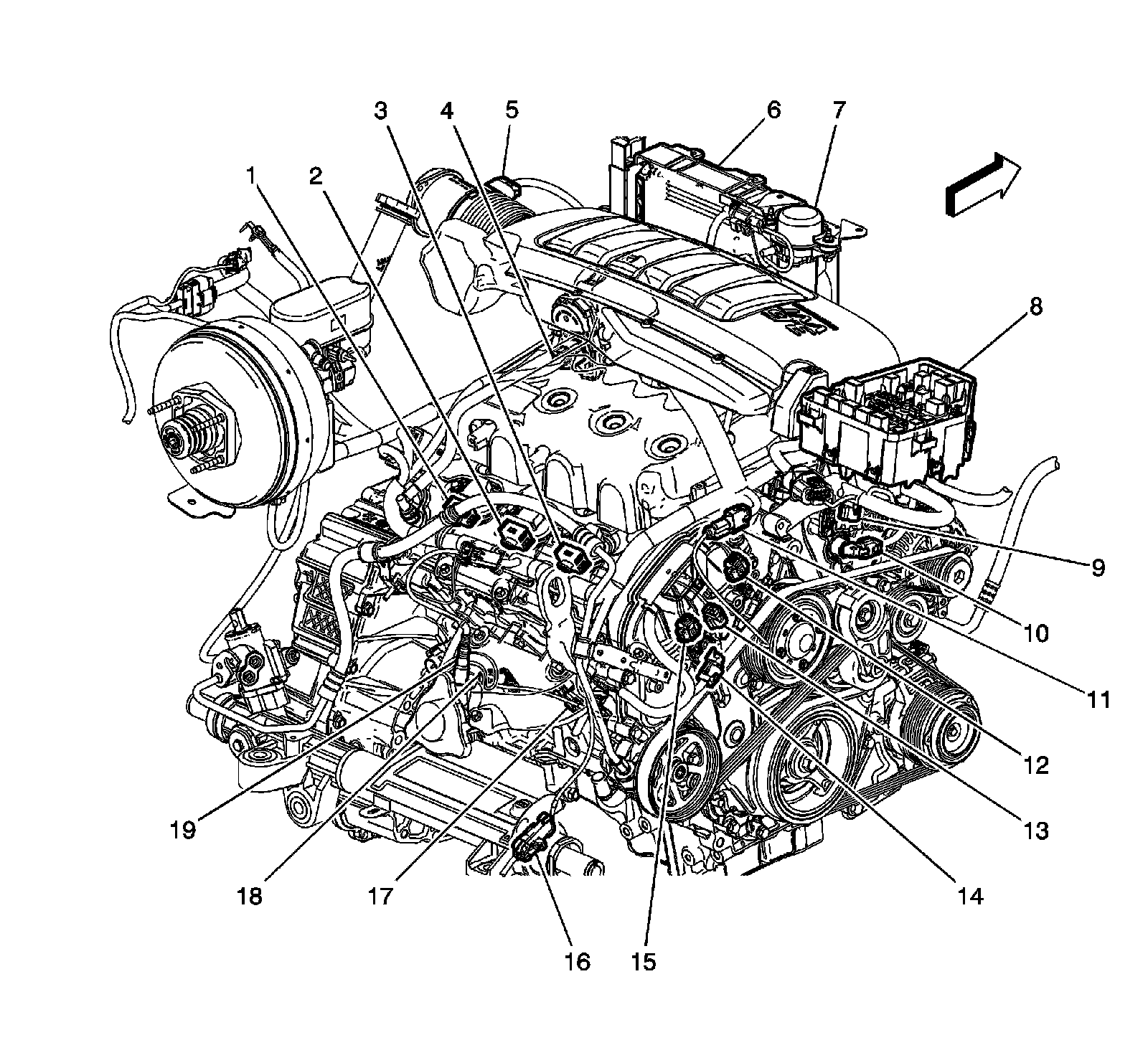

Engine Components - Right Rear
Powertrain Component Views
Engine Components - Right Rear
1 - Ignition Coil 5
2 - Ignition Coil 3
3 - Ignition Coil 1
4 - Throttle Body
5 - Multifunction Intake Air Sensor
6 - Engine Control Module (ECM)
7 - Brake Booster Pump - Auxiliary
8 - Fuse Block - Underhood
9 - Camshaft Position (CMP) Actuator Solenoid - Bank 2 Intake
10 - Camshaft Position (CMP) Actuator Solenoid - Bank 2 Exhaust
11 - Wheel Speed Sensor (WSS) - Right Front Connector
12 - Camshaft Position (CMP) Sensor - Bank 1 Intake
13 - Camshaft Position (CMP) Actuator Solenoid - Bank 1 Intake
14 - Camshaft Position (CMP) Actuator Solenoid - Bank 1 Exhaust
15 - Camshaft Position (CMP) Sensor - Bank 1 Exhaust
16 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 Connector
17 - Knock Sensor (KS) 1
18 - Crankshaft Position (CKP) Sensor
19 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
