2012 Chevrolet Traverse FWD V6-3.6LFACTORY OEM SERVICE PROCEDURE
Engine Components - Front Left
Powertrain Component Views

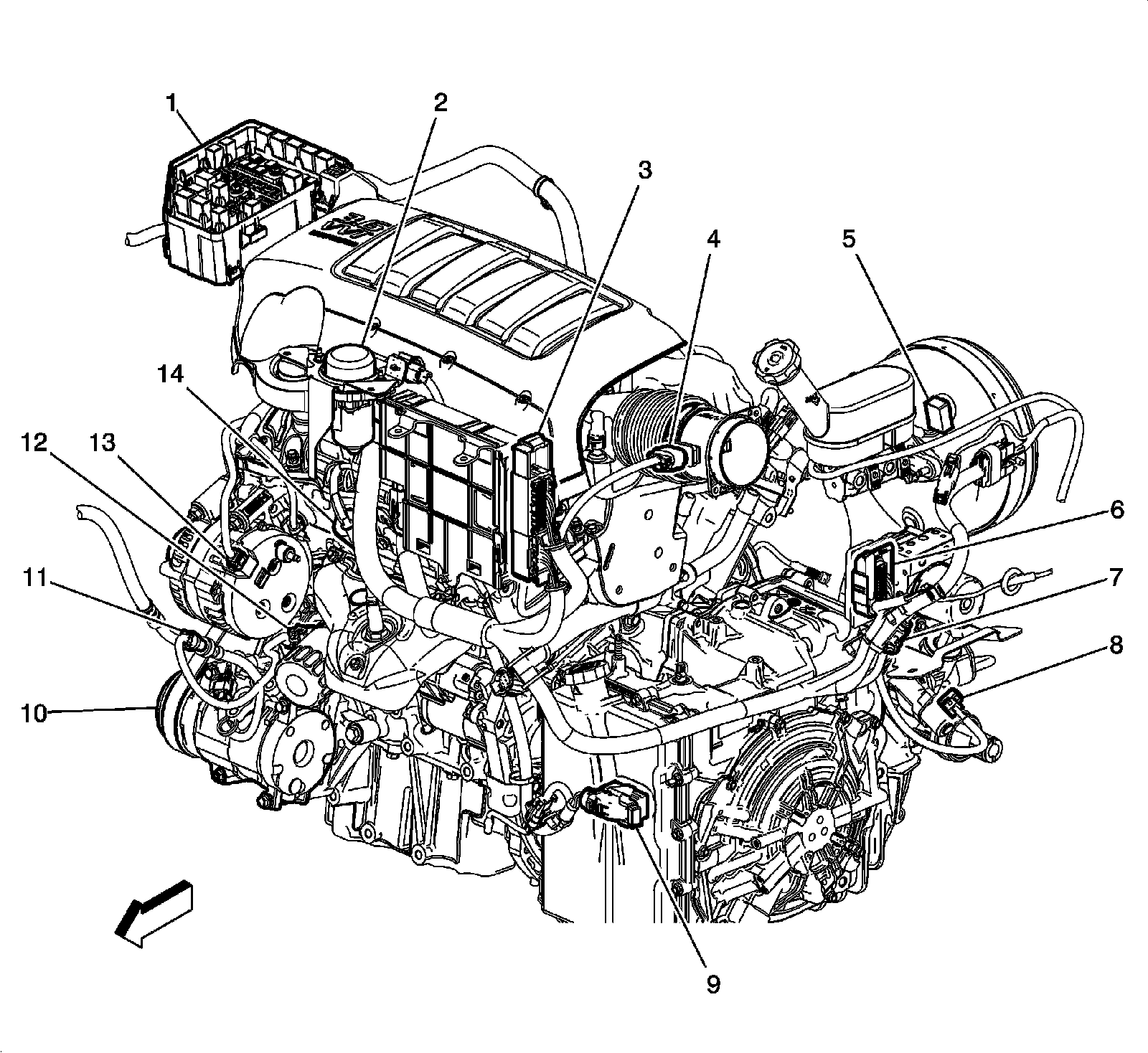

Engine Components - Front Left
1 - Fuse Block- Underhood
2 - Brake Booster Pump- Auxiliary
3 - Engine Control Module (ECM)
4 - Multifunction Intake Air Sensor
5 - Brake Booster Vacuum Sensor
6 - Electronic Brake Control Module (EBCM) Connector
7 - Wheel Speed Sensor (WSS) - Left Front Connector
8 - Variable Effort Steering Actuator (NV7) Connector
9 - Control Solenoid Valve Assembly
10 - A/C Compressor Clutch
11 - A/C Refrigerant Pressure Sensor
12 - Engine Oil Pressure (EOP) Switch
13 - Generator
14 - Engine Coolant Temperature (ECT) Sensor
