2012 Chevrolet Traverse FWD V6-3.6LFACTORY OEM SERVICE PROCEDURE
Air Flow Meter/Sensor: Service and Repair
Mass Airflow Sensor with Intake Air Temperature Sensor Replacement
Removal Procedure

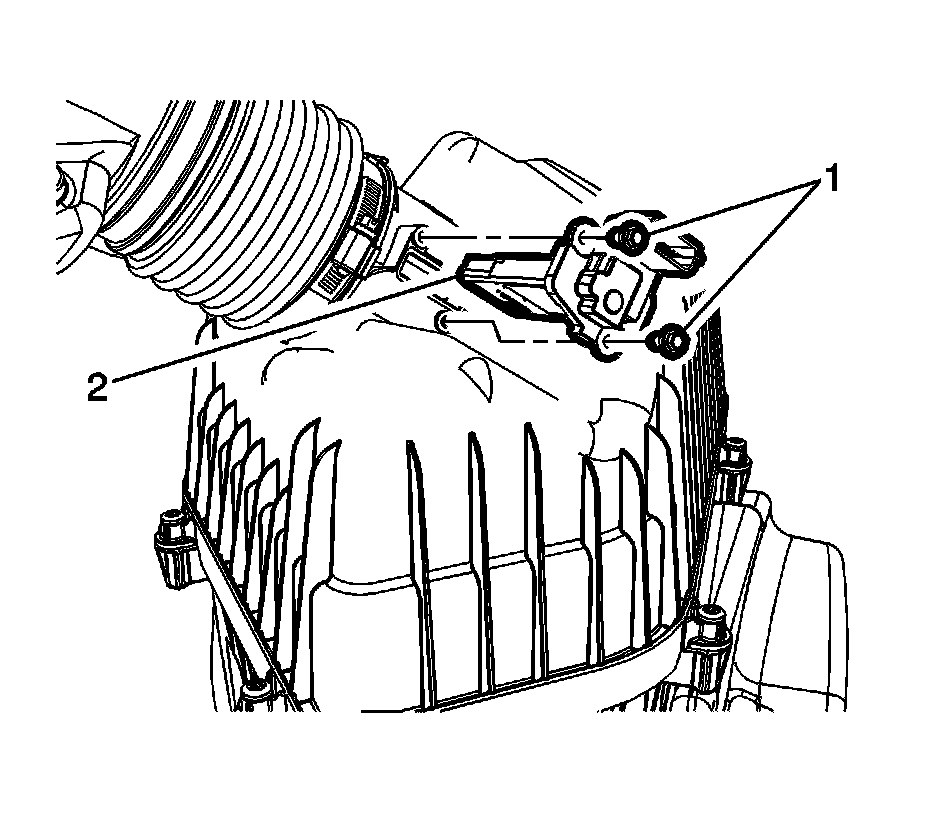

1. Disconnect the engine wiring harness electrical connector from the mass air flow (MAF)/intake air temperature (IAT) sensor.
2. Remove the MAF/IAT sensor screws (1).
3. Remove the MAF/IAT sensor (2) from the air cleaner assembly.
Installation Procedure
1. Install the MAF/IAT sensor (2) to the air cleaner assembly.
Caution: Refer to Fastener Caution Fastener Caution.
2. Install the MAF/IAT sensor screws (1).
Tighten the screws to 4 Nm (35 lb in).
3. Connect the engine wiring harness electrical connector to the MAF/IAT sensor.
