2012 Chevrolet Traverse FWD V6-3.6LFACTORY OEM SERVICE PROCEDURE
Accelerator Pedal Position Sensor: Service and Repair
Accelerator Pedal Position Sensor Replacement
Removal Procedure
1. Remove the left instrument panel (I/P) insulator. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Enclave) Instrument Panel Insulator Panel Replacement - Left SideInstrument Panel Insulator Panel Replacement - Left Side (Acadia) Instrument Panel Insulator Panel Replacement - Left SideInstrument Panel Insulator Panel Replacement - Left Side (Traverse) Instrument Panel Insulator Panel Replacement - Left Side.
2. Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement (Acadia) Service and RepairDriver Knee Bolster Replacement (Traverse) Service and RepairDriver Knee Bolster Replacement (Enclave) Service and Repair.

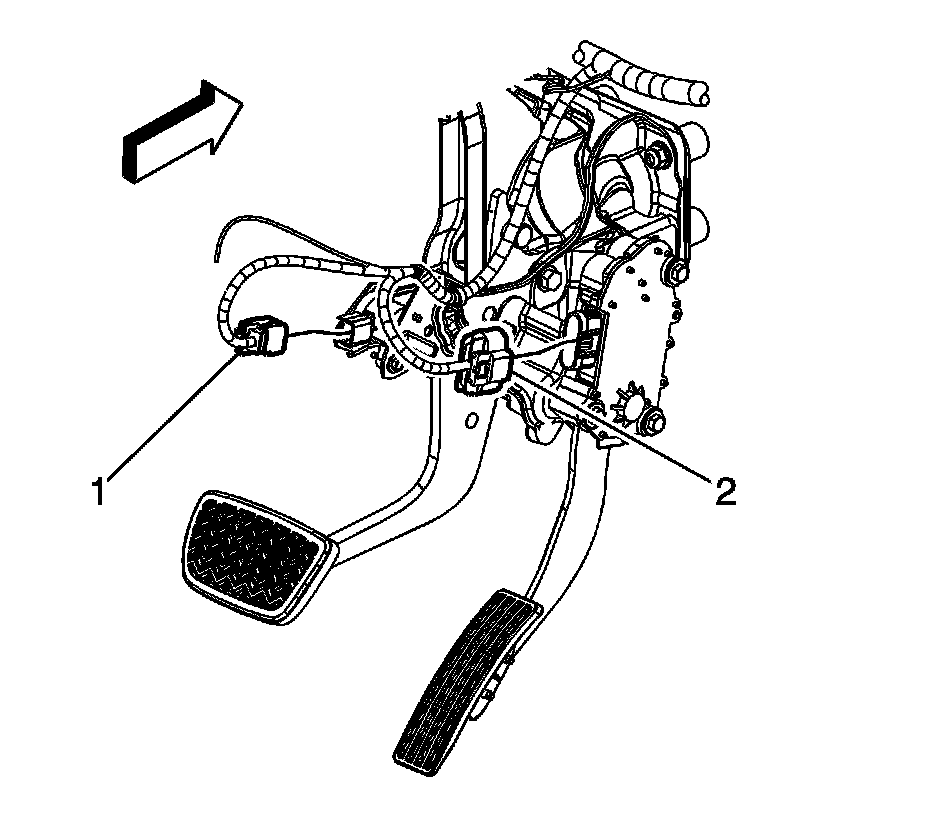

3. Remove the I/P wiring harness electrical connector (2) from the accelerator pedal position (APP) sensor assembly.
Note: Due to clearance issues, the upper attachment bolt cannot be removed from the APP sensor assembly. Loosen the bolt completely and leave the bolt in the component until the assembly is removed from the vehicle.

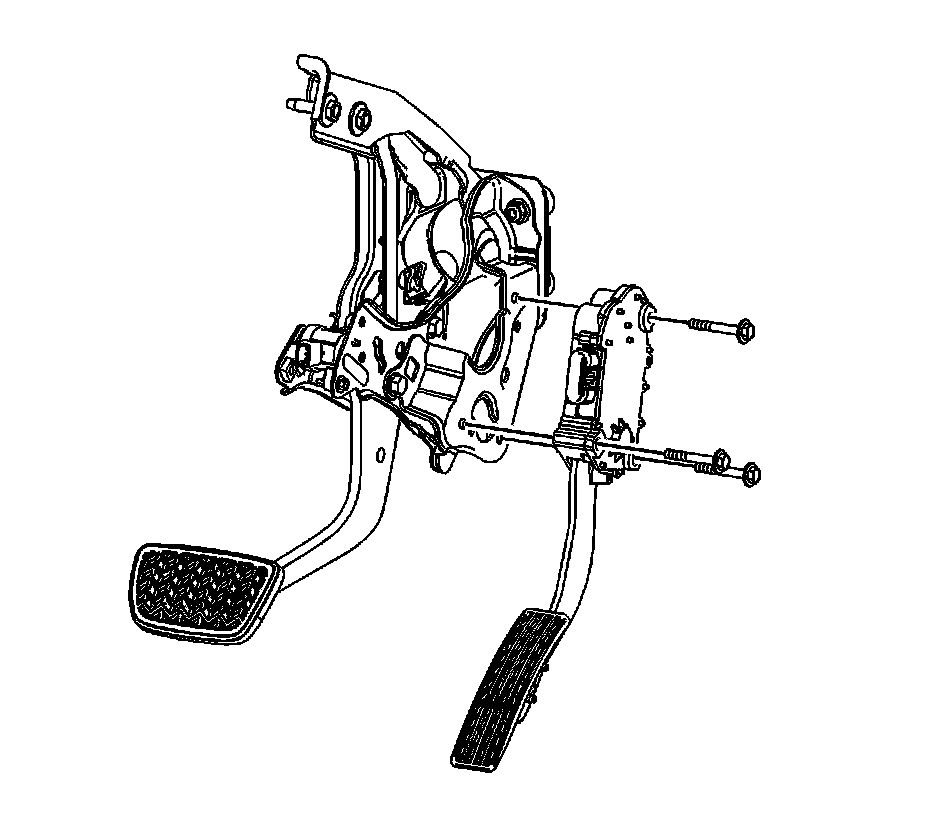

4. Remove the APP sensor bolts and sensor assembly from the vehicle.
Installation Procedure
1. Install the upper bolt into the APP sensor assembly.
2. Install the APP sensor assembly into the vehicle.
Caution: Refer to Fastener Caution Fastener Caution.
3. Install the remaining 2 lower APP sensor assembly bolts.
Tighten the bolts to 8 Nm (71 lb in).
4. Install the I/P wiring harness electrical connector (2) to the APP sensor assembly.
5. Install the driver knee bolster. Refer to Driver Knee Bolster Replacement (Acadia) Service and RepairDriver Knee Bolster Replacement (Traverse) Service and RepairDriver Knee Bolster Replacement (Enclave) Service and Repair.
6. Install the left I/P insulator. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Enclave) Instrument Panel Insulator Panel Replacement - Left SideInstrument Panel Insulator Panel Replacement - Left Side (Acadia) Instrument Panel Insulator Panel Replacement - Left SideInstrument Panel Insulator Panel Replacement - Left Side (Traverse) Instrument Panel Insulator Panel Replacement - Left Side.
