2012 Chevrolet Traverse FWD V6-3.6LFACTORY OEM SERVICE PROCEDURE
Power Distribution Module: Locations

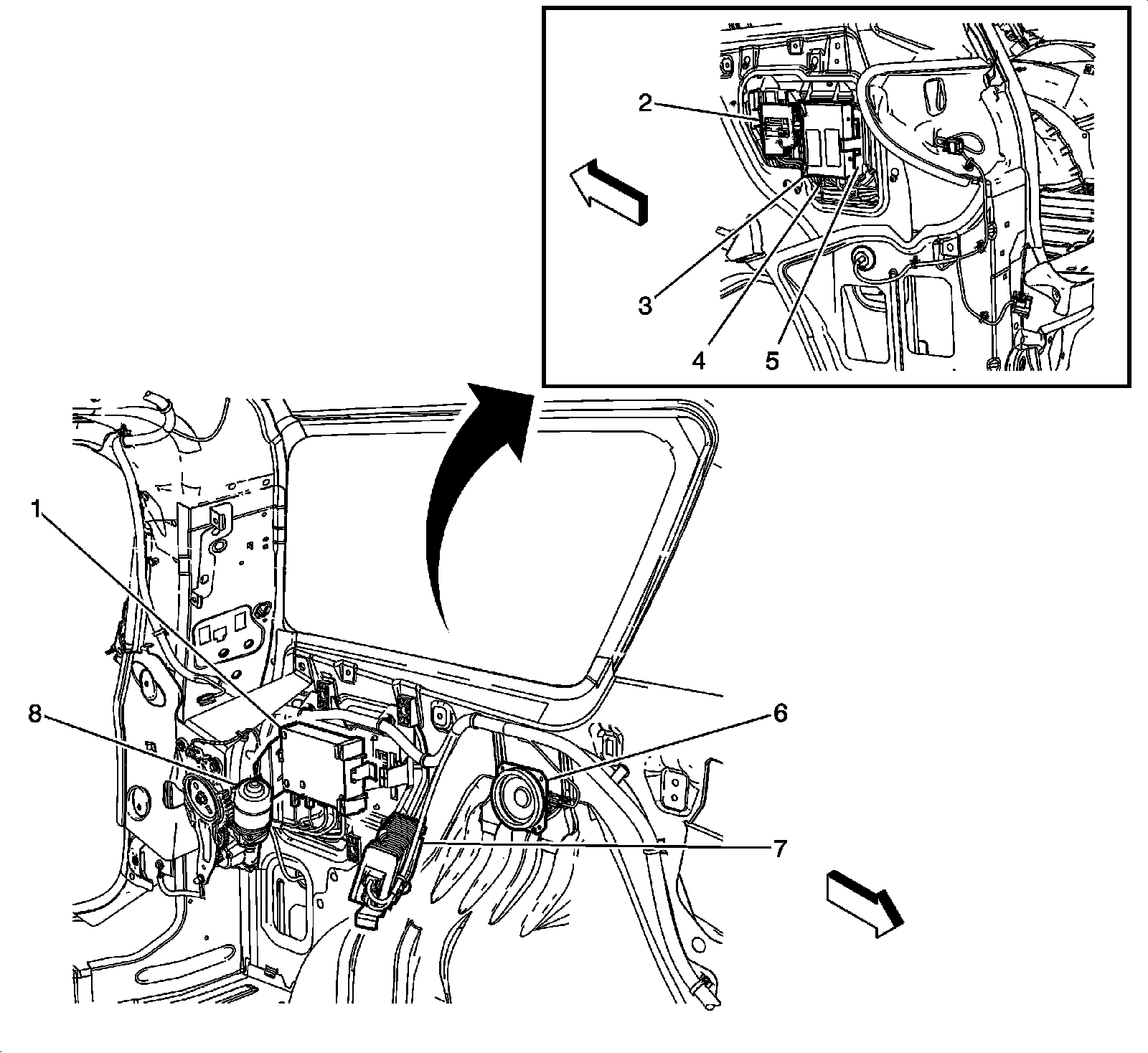

Luggage Compartment/Rear of Vehicle Component Views
Left Rear of the Passenger Compartment
1 - Liftgate Module (LGM) (TB5)
2 - Object Alarm Module (UD7)
3 - Vehicle Communications Interface Module (VCIM) (UE1)
4 - Wireless Communication Interface Antenna- Bluetooth (UPF)
5 - Digital Radio Receiver (U2K or UBS)
6 - Speaker- Left Rear Compartment (UQA or UQS)
7 - Accessory AC/DC Power Control Module (KV1)
8 - Liftgate Actuator Assembly (TB5)
