Engine Oil: Service and Repair

Engine Oil and Oil Filter Replacement

Removal Procedure





Warning:
Refer to Hot Exhaust System Warning Hot Exhaust System Warning.

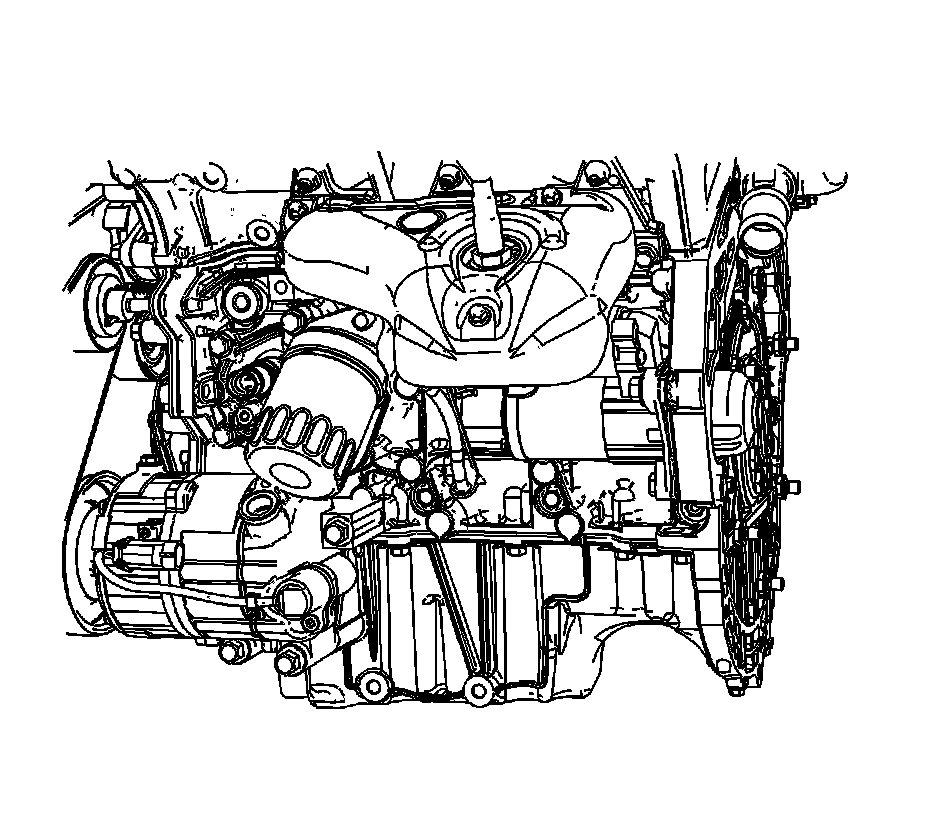

1. Place the drain pan under the oil filter.

2. Loosen the oil filter. Allow the oil to drain completely.

3. Wrap the oil filter in a disposable towel or rag. Remove the oil filter, keep it upright until it is clear of the vehicle.

4. Thoroughly clean all oil spillage.

5. Lubricate the NEW oil filter gasket with clean engine oil and tighten the oil filter to 25 Nm (18 lb ft).





6. Place a drain pan under the oil pan drain plug.

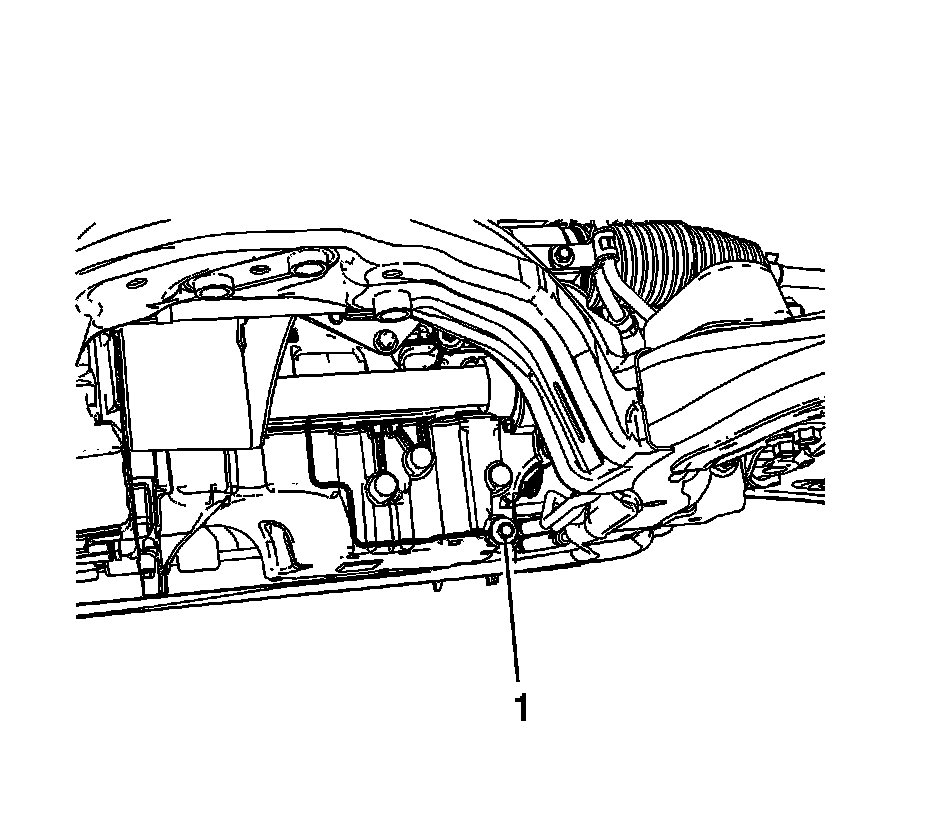

7. Remove the oil pan drain plug (1). Allow the oil to drain completely.

Installation Procedure

Caution:
Refer to Fastener Caution Fastener Caution.

1. Install the oil pan drain plug and tighten to 25 Nm (18 lb ft).

2. Clean the oil pan drain plug and oil filter areas from below.

3. Lower the vehicle.





4. Refill the engine oil. Refer to Approximate Fluid Capacities [1][2]Maintenance.

5. Start the engine and inspect for leaks.
