2012 Chevrolet Traverse FWD V6-3.6LFACTORY OEM SERVICE PROCEDURE

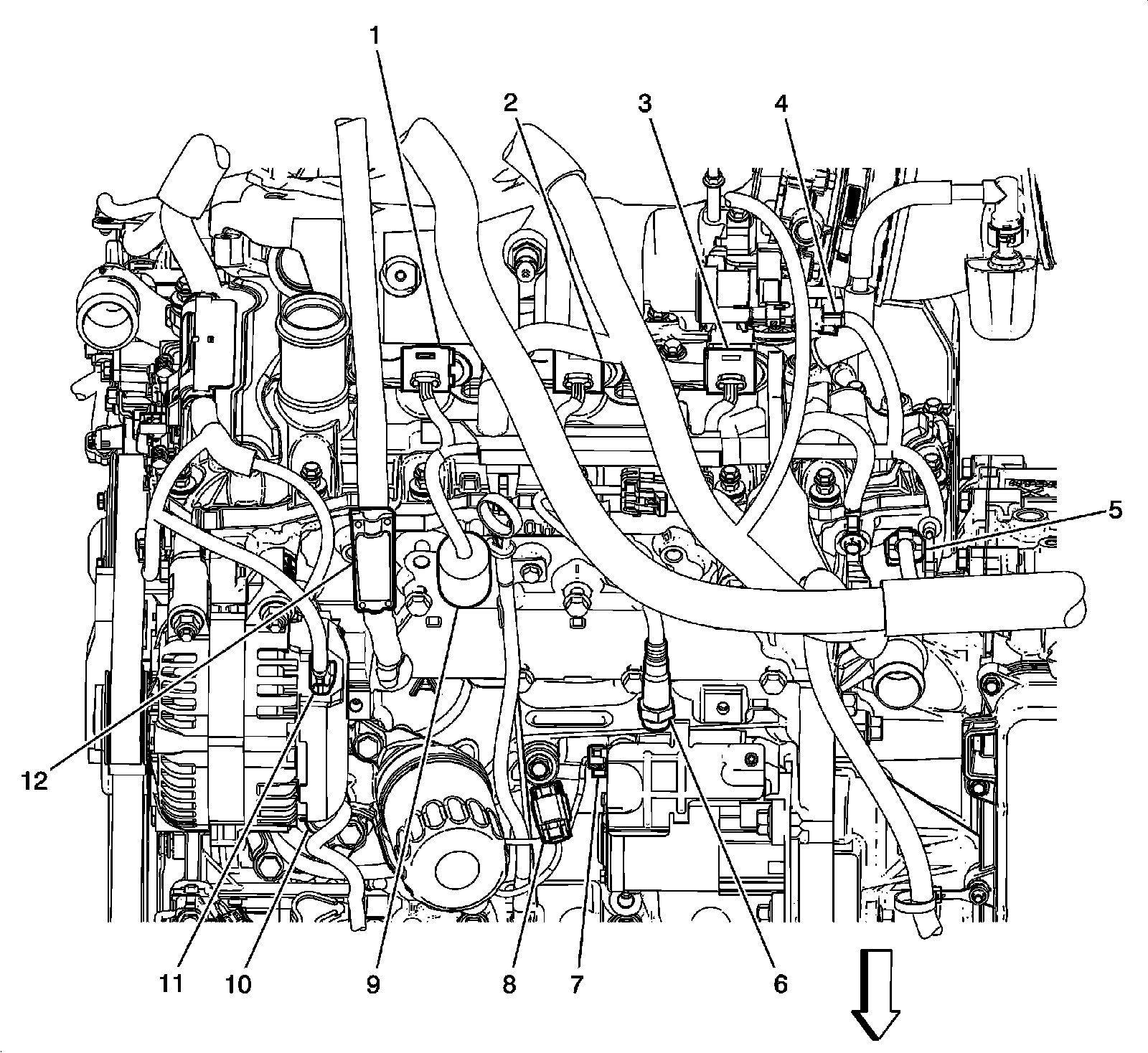

Engine Components - Front
Powertrain Component Views
Engine Components - Front
1 - Ignition Coil 2
2 - Ignition Coil 4
3 - Ignition Coil 6
4 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
5 - High Pressure Fuel Pump
6 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
7 - Starter Motor
8 - Knock Sensor (KS) 2
9 - Engine Coolant Temperature (ECT) Sensor
10 - Engine Oil Pressure (EOP) Switch
11 - Generator
12 - Fuse Holder - Generator
