2012 Chevrolet Traverse FWD V6-3.6LFACTORY OEM SERVICE PROCEDURE
Steering Column Components
Instrument Panel/Center Console Component Views

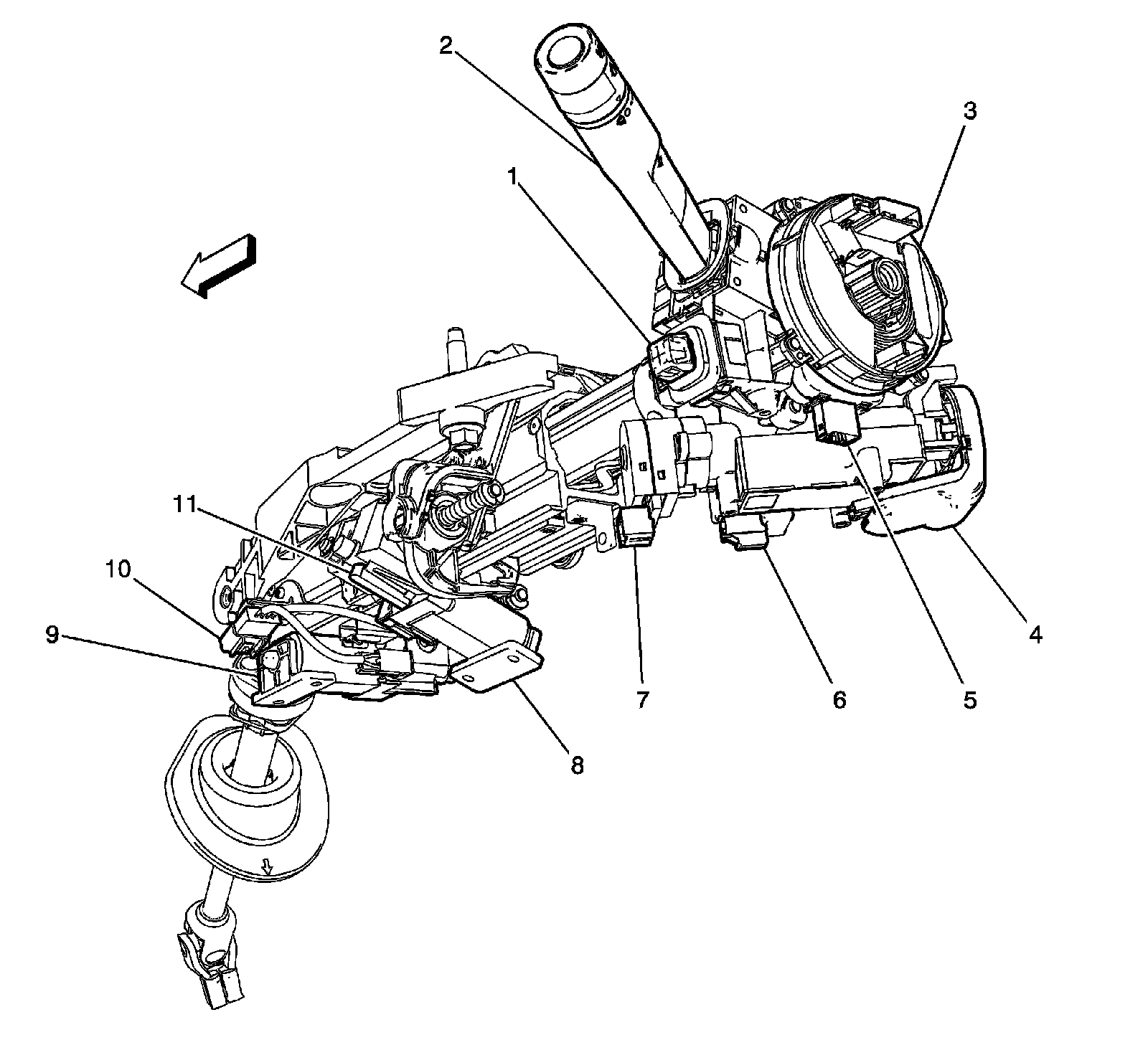

Steering Column Components
1 - Steering Wheel/Column Tilt/Telescope Switch (N38)
2 - Turn Signal/Multifunction Switch
3 - Inflatable Restraint Steering Wheel Module Coil
4 - Theft Deterrent Module (TDM)
5 - Steering Wheel Speed/Position Sensor
6 - Ignition Lock Cylinder Control Actuator
7 - Ignition Switch
8 - Steering Wheel Tilt Actuator (N38)
9 - Steering Column Telescope Actuator (N38)
10 - X295
11 - Steering Wheel Tilt Position Sensor (N38)
