2012 Chevrolet Traverse FWD V6-3.6LFACTORY OEM SERVICE PROCEDURE
Memory Positioning Module: Locations
Passenger Compartment/Roof Component Views

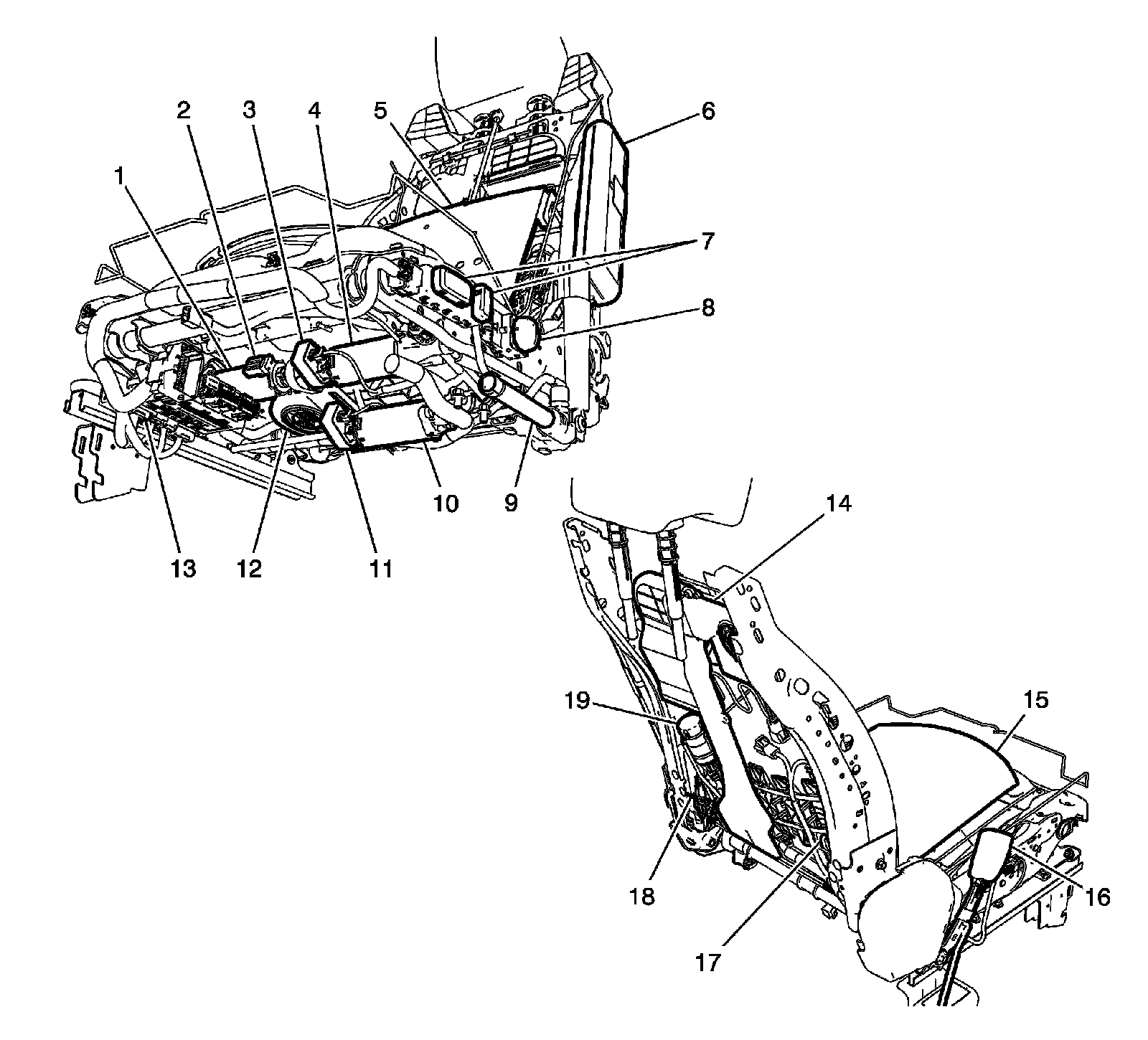

Driver Seat Components (A45)
1 - Seat Front Vertical Motor - Driver
2 - Seat Front Vertical Motor Position Sensor
3 - Seat Rear Vertical Motor Position Sensor - Driver
4 - Seat Rear Vertical Motor - Driver
5 - Heated Seat Element - Driver Back
6 - Inflatable Restraint Side Impact Module - Left
7 - Seat Adjuster Switch - Driver
8 - Seat Lumbar Switch - Driver
9 - Seat Belt Pretensioner - Driver
10 - Seat Horizontal Motor - Driver
11 - Seat Horizontal Motor Position Sensor - Driver
12 - Seat Cushion Ventilation Heating and Cooling Module - Driver (KB6)
13 - Memory Seat Module (MSM)
14 - Seat Back Ventilation Heating and Cooling Module - Driver (KB6)
15 - Heated Seat Element - Driver Cushion
16 - Seat Belt Buckle - Driver
17 - Seat Recline Position Sensor - Driver
18 - Seat Recline Motor - Driver
19 - Seat Lumbar Horizontal Motor - Driver
