2012 Chevrolet Sonic L4-1.8LFACTORY OEM SERVICE PROCEDURE
Center Console Components
Instrument Panel/Center Console Component Views

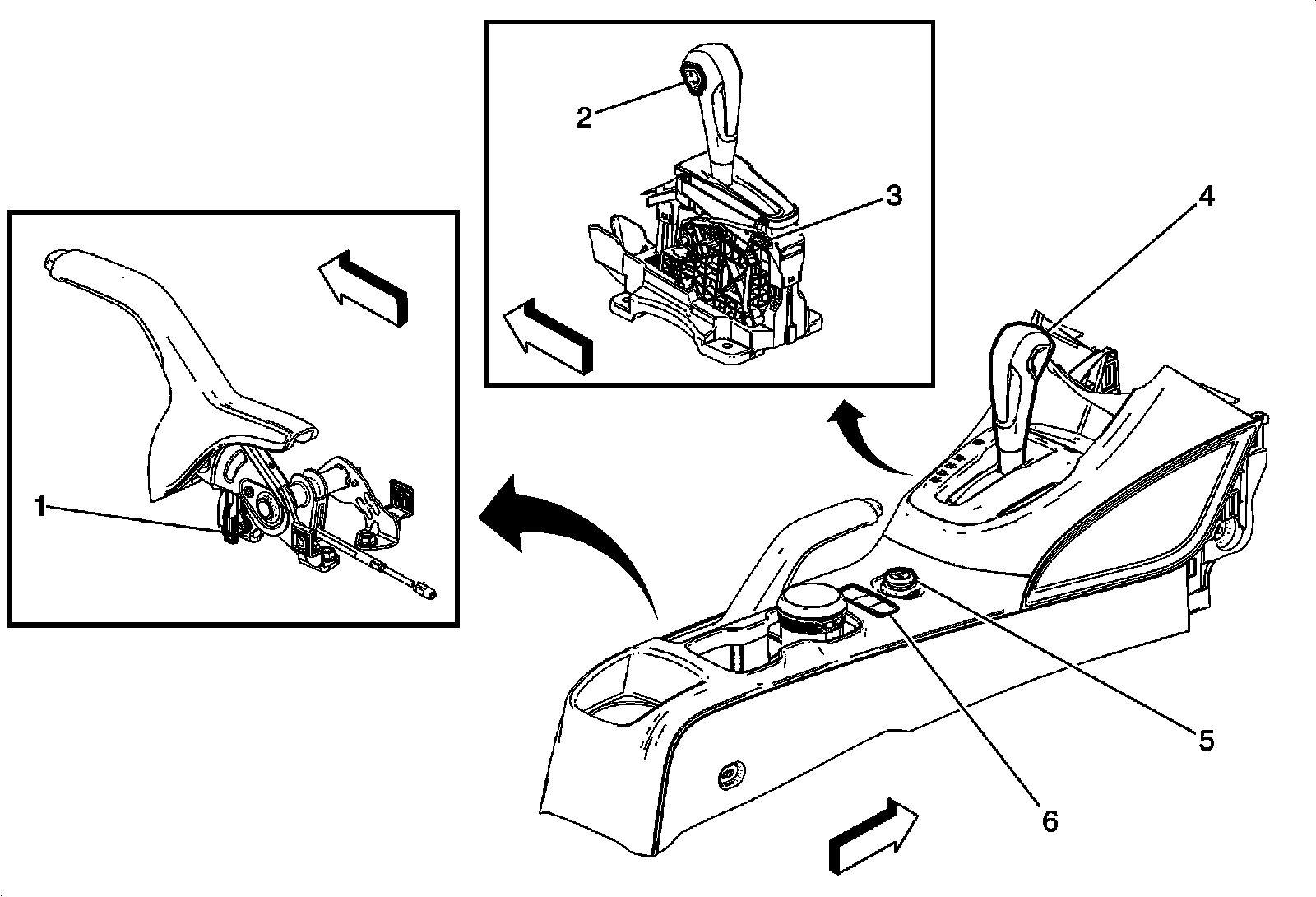

Center Console Components
1 - B80 Park Brake Switch
2 - S2 Transmission Manual Shift Switch (MH8 or MH9)
3 - P2 Transmission Shift Lever Position Indicator (MH8 or MH9)
4 - S3 Transmission Shift Lever (MH8 or MH9)
5 - E32 Cigarette Lighter Receptacle
6 - S48E Multifunction Switch - Center Console
