2012 Chevrolet Sonic L4-1.4L TurboFACTORY OEM SERVICE PROCEDURE
Knock Sensor: Locations
Powertrain Component Views

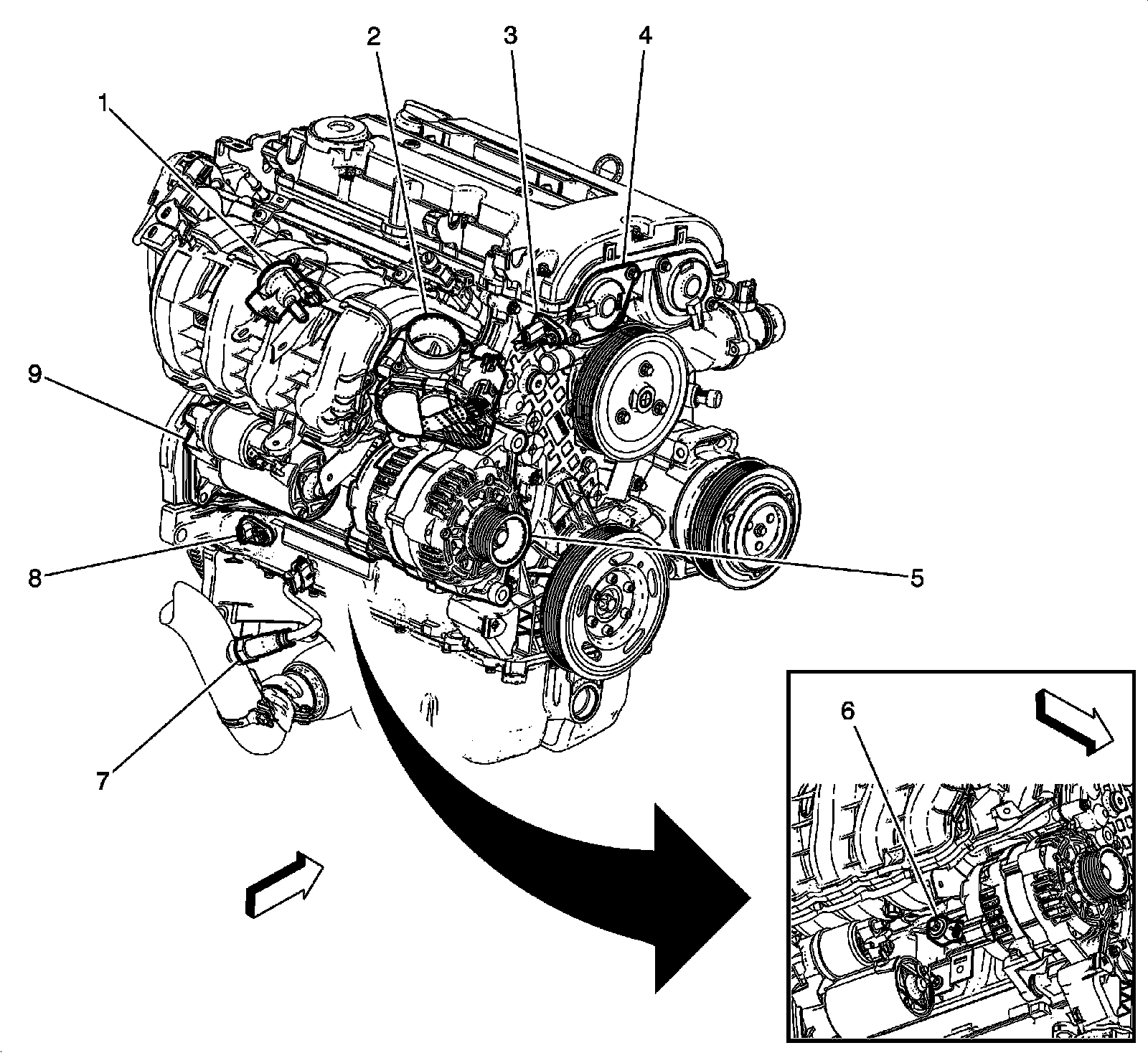

Right Rear of Engine Components- 1.4L (LUV)
1 - Q12 Evaporative Emission Purge Solenoid Valve
2 - Q38 Throttle Body
3 - B23F Camshaft Position Sensor - Intake
4 - Q6F Camshaft Position Actuator Solenoid Valve - Intake
5 - G13 Generator
6 - B68 Knock Sensor
7 - B52B Heated Oxygen Sensor 2
8 - B26 Crankshaft Position Sensor
9 - M64 Starter Motor
