Fuel Pump Flow Control Module Replacement

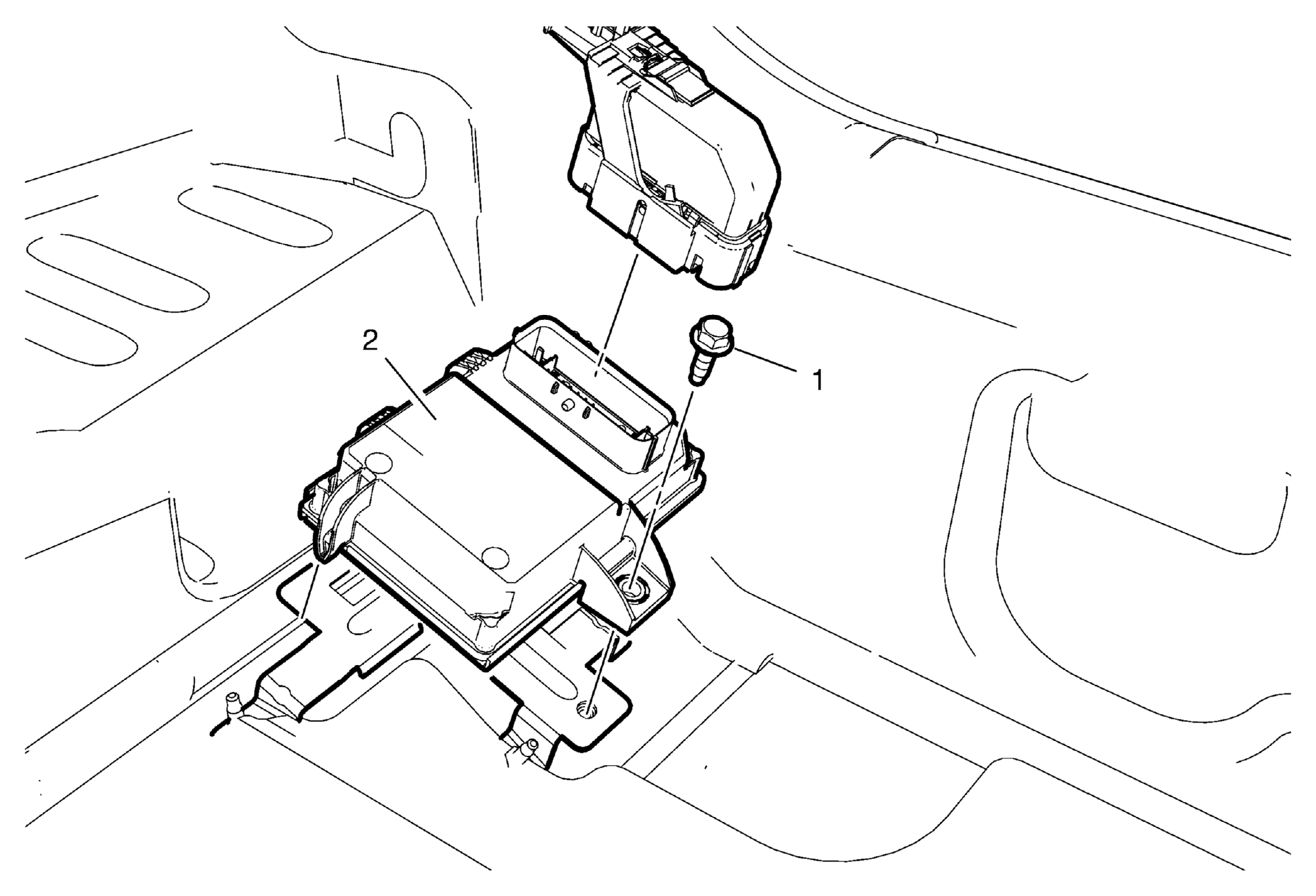

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the rear compartment floor stowage compartment. Refer to Rear Compartment Floor Stowage Compartment Replacement . |
|
| 1 | Fuel Pump Flow Control Module Bolt
CAUTION:
Refer to Fastener Caution . Tighten 8 N.m (71 lb in) |
| 2 | Fuel Pump Flow Control Module Procedure
|
