2012 Chevrolet Orlando (CANADA) L4-2.4LFACTORY OEM SERVICE PROCEDURE
Front of the Passenger Compartment
Passenger Compartment/Roof Component Views

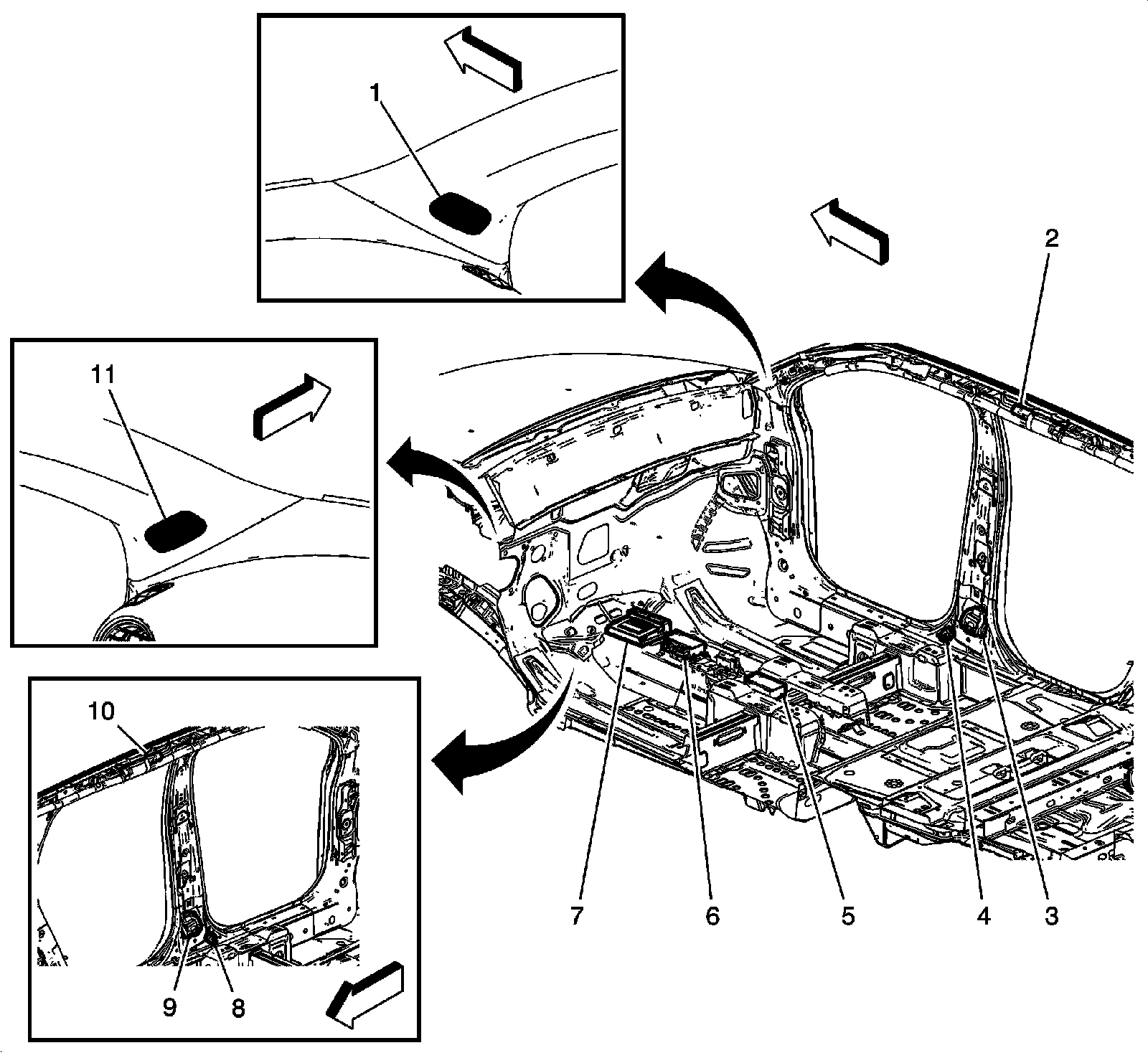

Front of the Passenger Compartment
1 - P19V Speaker - Right Front Tweeter
2 - F105R Roof Rail Air Bag - Right
3 - F112P Seat Belt Retractor Pretensioner - Passenger
4 - B63RF Side Impact Sensor - Right Front
5 - B119 Multi-axis Acceleration Sensor
6 - K36 Inflatable Restraint Sensing and Diagnostic Module
7 - K9 Body Control Module
8 - B63LF Side Impact Sensor - Left Front
9 - F112D Seat Belt Retractor Pretensioner - Driver
10 - F105L Roof Rail Air Bag - Left
11 - P19H Speaker - Left Front Tweeter
