2012 Chevrolet Orlando (CANADA) L4-2.4LFACTORY OEM SERVICE PROCEDURE
Control Module HVAC: Locations

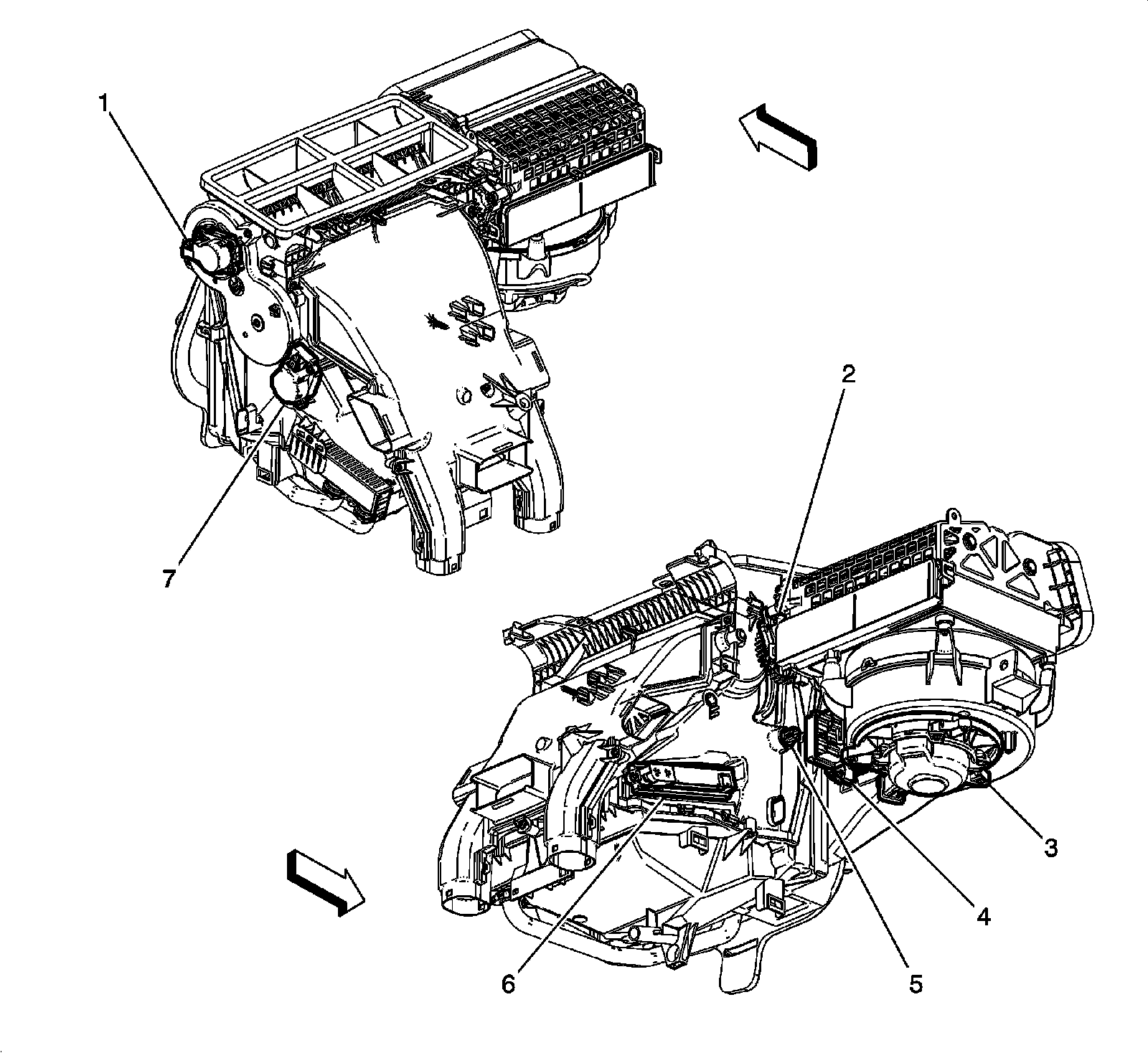

Instrument Panel/Center Console Component Views
Interior HVAC
1 - M37 Mode Door Actuator
2 - M46 Air Recirculation Door Actuator
3 - M8 Blower Motor
4 - K8 Blower Motor Control Module
5 - B7A Inside Air Temperature Sensor
6 - E40 Electrical Auxiliary Heater
7 - M6 Air Temperature Door Actuator
