2012 Chevrolet Malibu L4-2.4LFACTORY OEM SERVICE PROCEDURE
Floor Console Components
Instrument Panel/Center Console Component Views

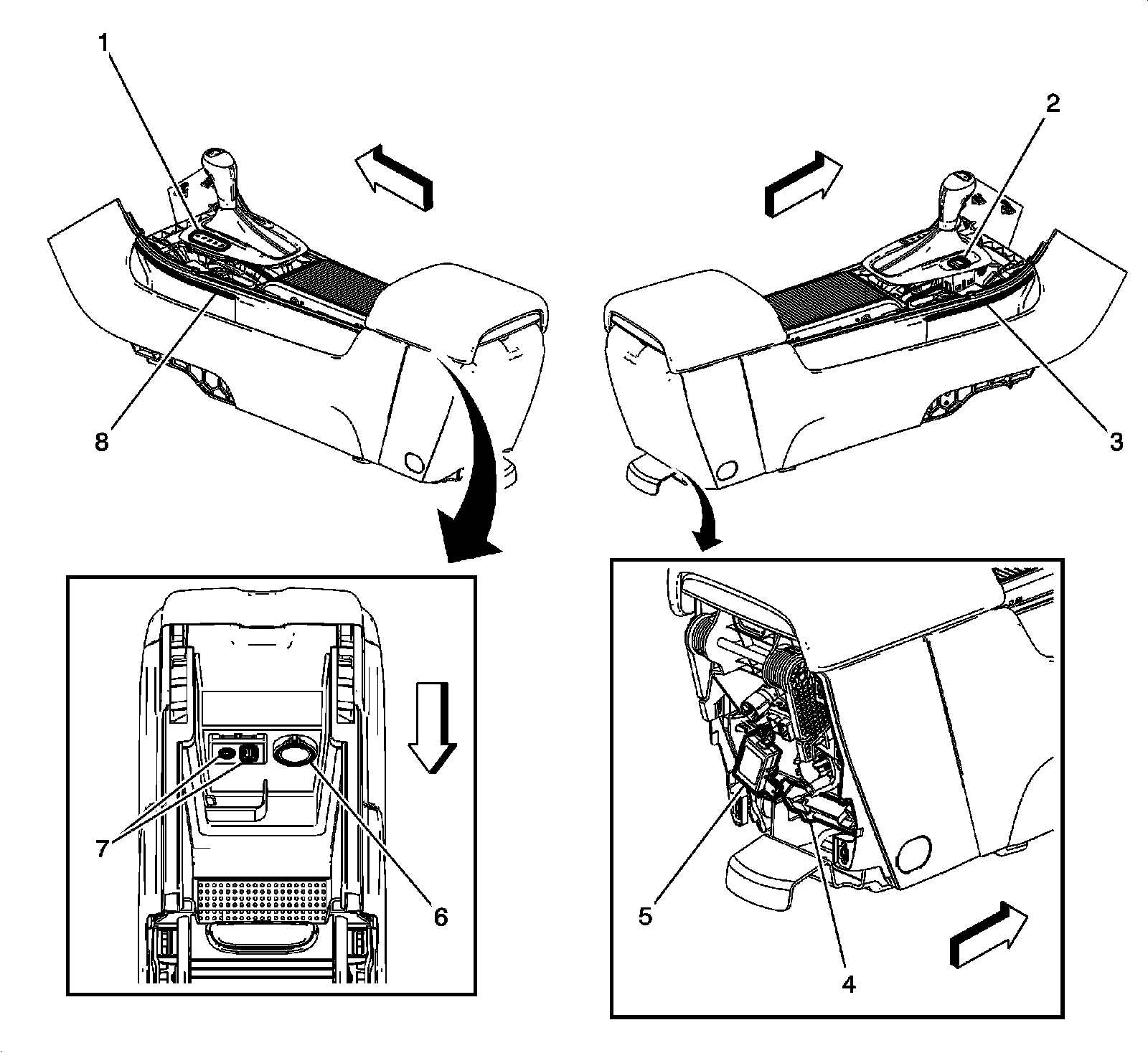

Floor Console Components
1 - P2 Transmission Shift Lever Position Indicator (MDK, MH8 or MHK)
2 - S91 Park Brake Control Switch
3 - E1Y Accent Lamp - Center Console Right (TSQ)
4 - K89 Immobilizer Control Module (BTM)
5 - T10K Keyless Entry Antenna - Center Console Rear (ATS)
6 - X80H Accessory Power Receptacle - Center Console (KPA)
7 - X83 Auxiliary Audio Input (without MCR) or X83A Auxiliary Audio Input with Memory Card Recptacle (MCR)
8 - E1X Accent Lamp - Center Console Left (TSQ)
