2012 Chevrolet Impala V6-3.6LFACTORY OEM SERVICE PROCEDURE
Shift Speed
Shift Speed
Note:

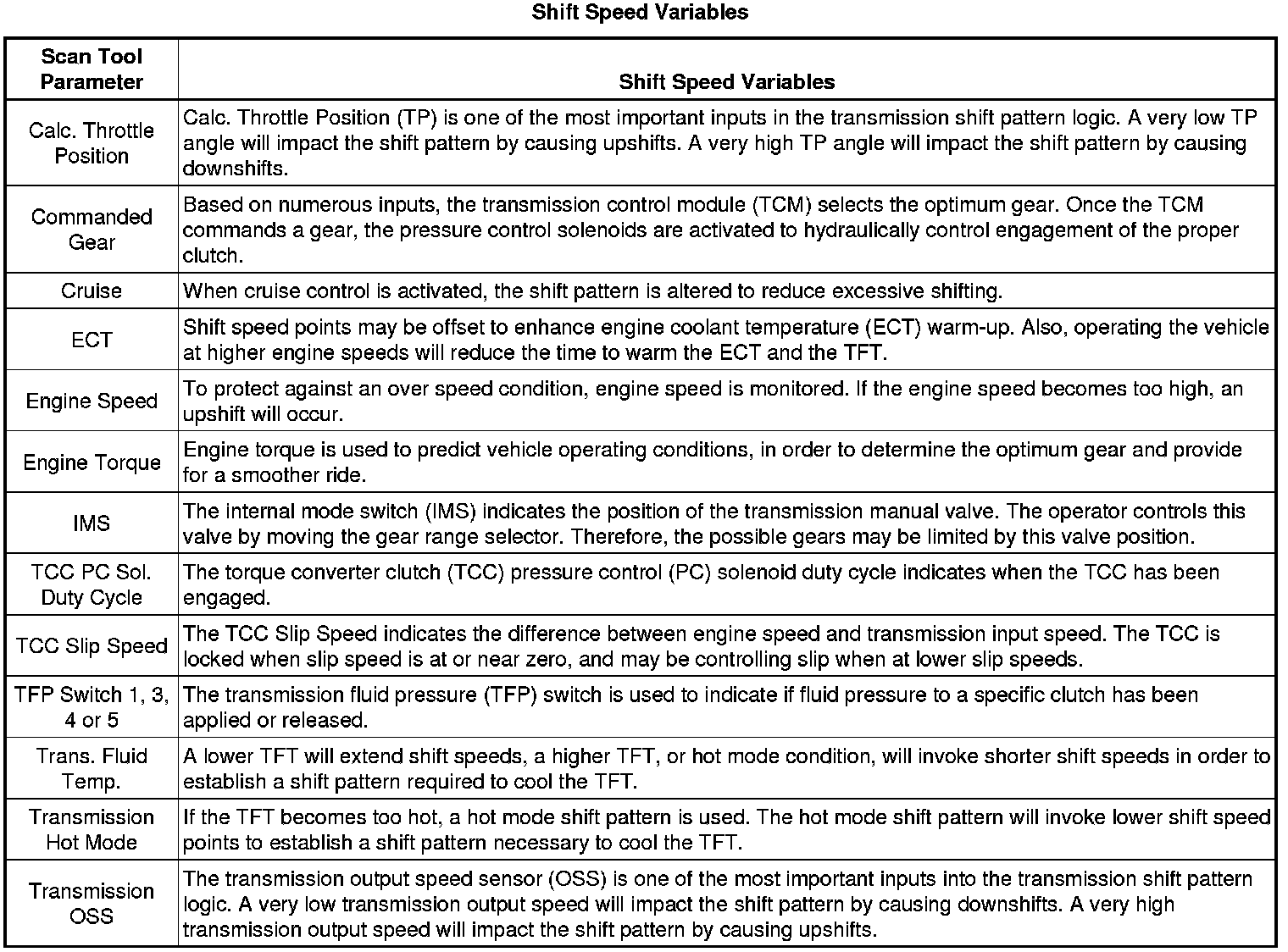

Shift speed points are affected by many different vehicle and transmission operating conditions. The table above represents shift speed points calibrated at specific throttle angles during normal operating conditions and a temperature range between 0-130°C (32-266°F). These shift speed points are also based on an effective final drive ratio of 2.77, and assume a production-intent tire size. The table below illustrates a number of different variables that influence these shift speed points. Based on a given operating condition, these variables may override the normal shift speed points. To assist in monitoring the different variables, the respective scan tool data parameter is also listed.
