Engine Oil: Service and Repair

Engine Oil and Oil Filter Replacement

Removal Procedure





Note:
This vehicle is equipped with an oil filter drain deflector. This is used to prevent engine oil from draining onto the front engine mount. With this deflector in place, the oil filter is easier to access from under the hood.

1. Place a drain pan under the oil filter drain deflector.

Warning:
Refer to Hot Exhaust System Warning Hot Exhaust System Warning.

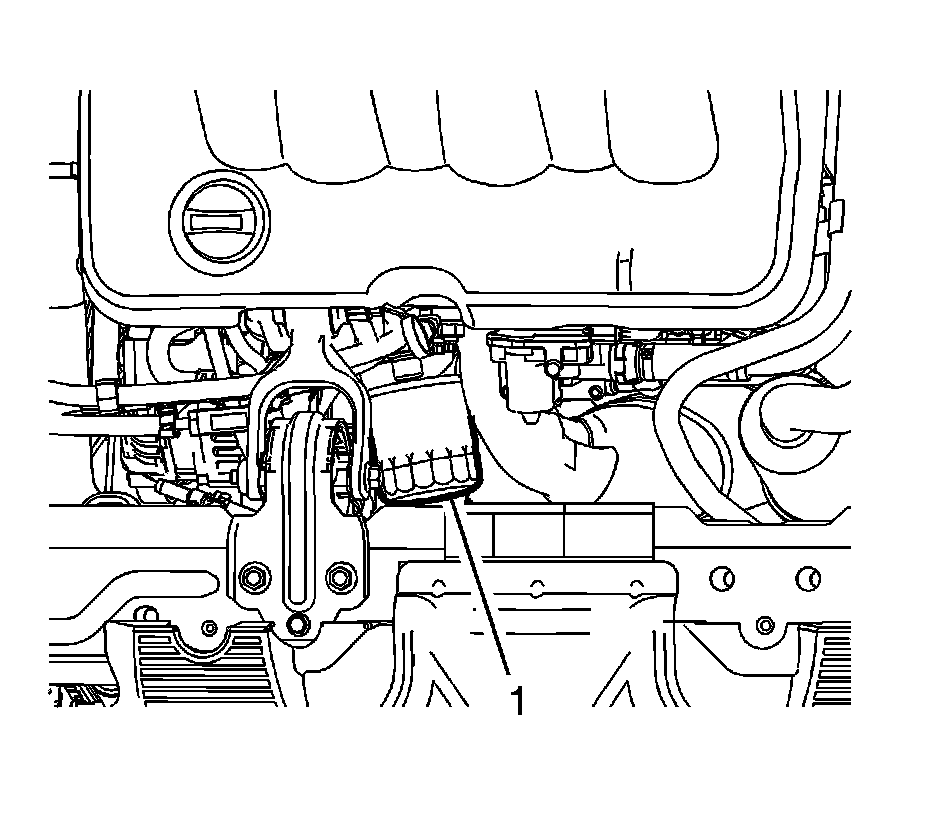

2. Remove the oil filter (1). Allow the oil to drain completely.





3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.

4. Place a drain pan under the oil pan drain plug.

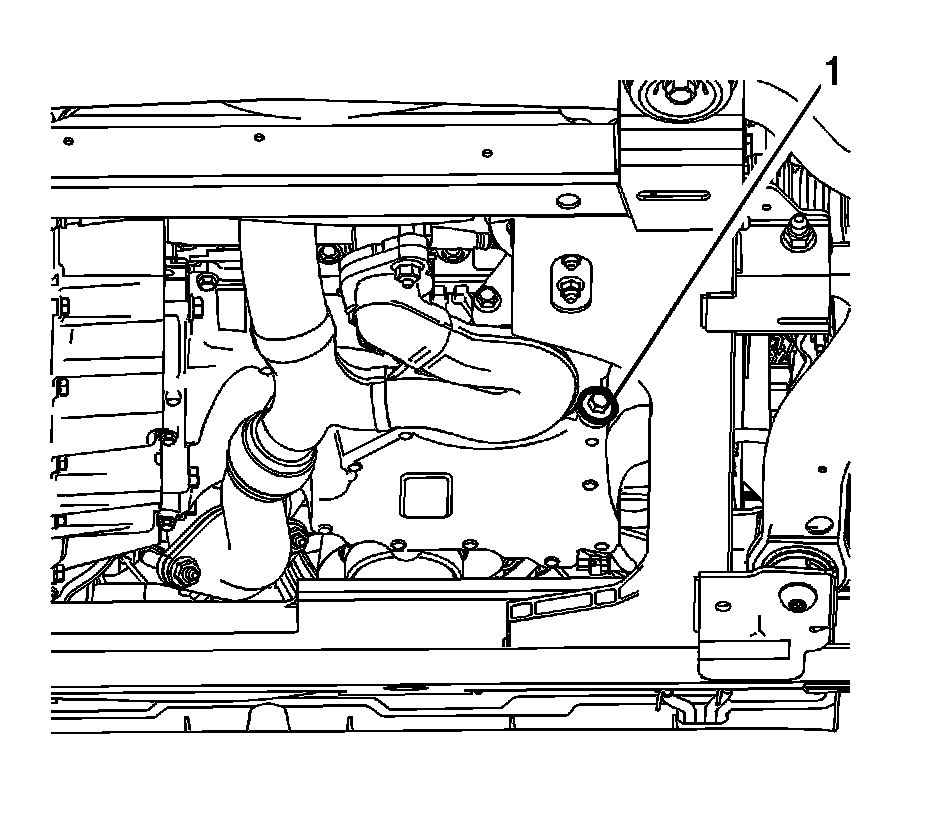

5. Remove the oil pan drain plug (1). Allow the oil to drain completely.

Installation Procedure





Caution:
Refer to Fastener Caution Fastener Caution.

1. Install the oil pan drain plug (1) and tighten to 20 Nm (15 lb ft).

2. Lower the vehicle.





3. Lubricate the NEW oil filter gasket with clean engine oil.

4. Tighten the oil filter (1) to 30 Nm (22 lb ft).

5. Refill the engine oil. Refer to Approximate Fluid Capacities [1][2]Capacity Specifications.

6. Start the engine and inspect for leaks.
