2012 Chevrolet Impala V6-3.6LFACTORY OEM SERVICE PROCEDURE
Compressor Control Valve Assembly: Locations
Powertrain Component Views

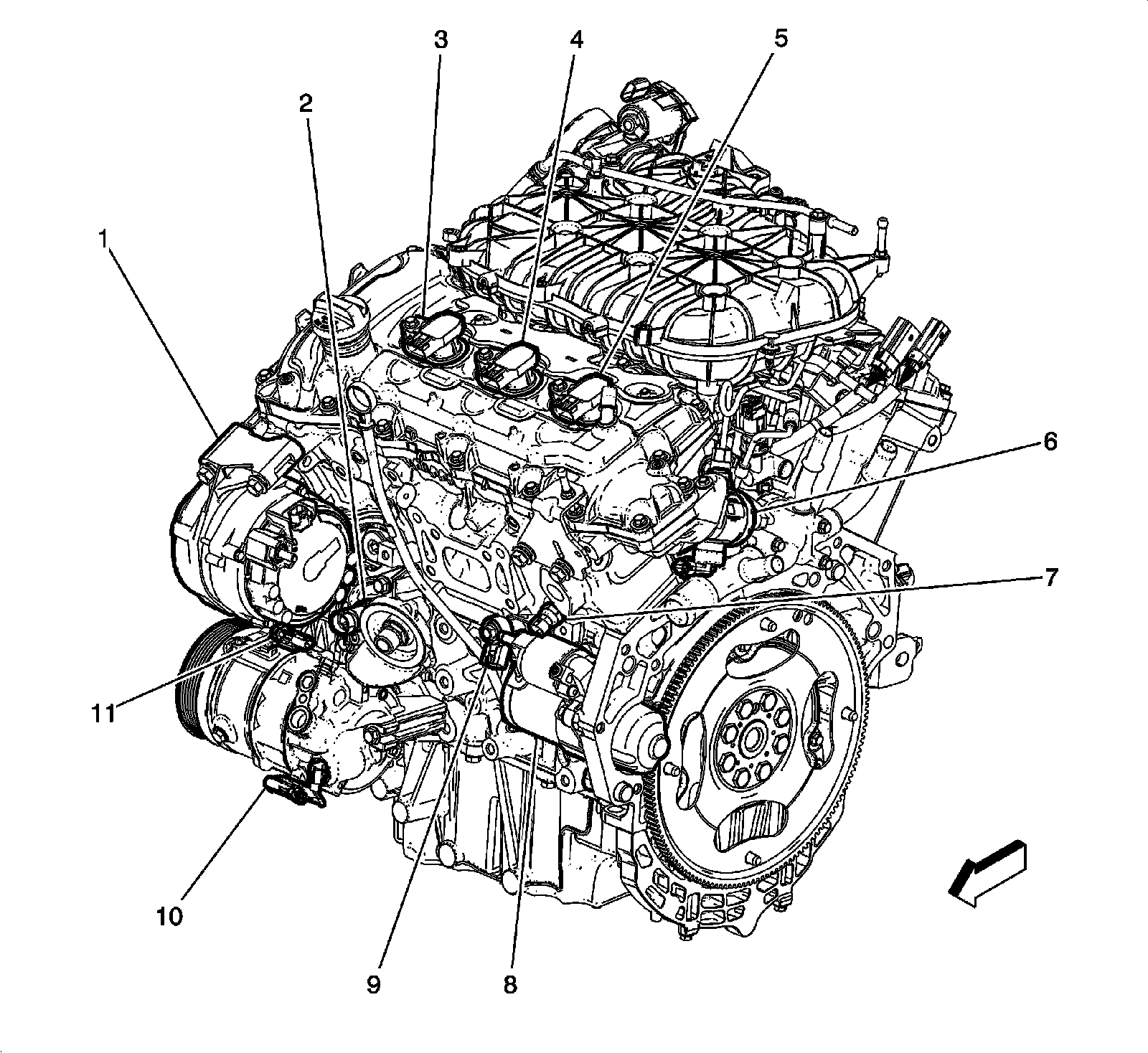

Left Front of Engine Components
1 - Generator
2 - Engine Oil Pressure (EOP) Switch
3 - Ignition Coil 2
4 - Ignition Coil 4
5 - Ignition Coil 6
6 - High Pressure Fuel Pump
7 - Engine Coolant Temperature (ECT) Sensor
8 - Starter Motor
9 - Knock Sensor (KS) 2
10 - A/C Compressor Solenoid Valve
11 - A/C Compressor Clutch
