2012 Chevrolet Impala V6-3.6LFACTORY OEM SERVICE PROCEDURE
Thread Repair Specifications
Thread Repair Specifications

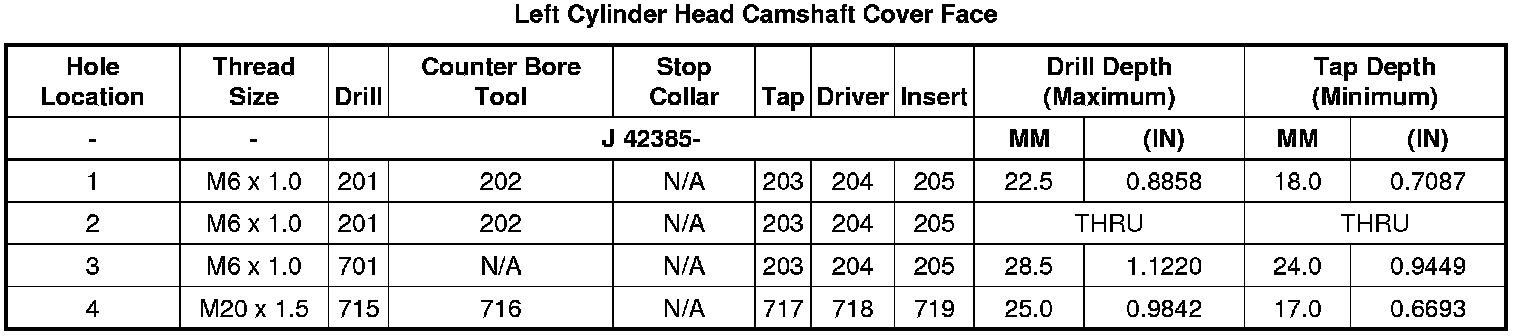

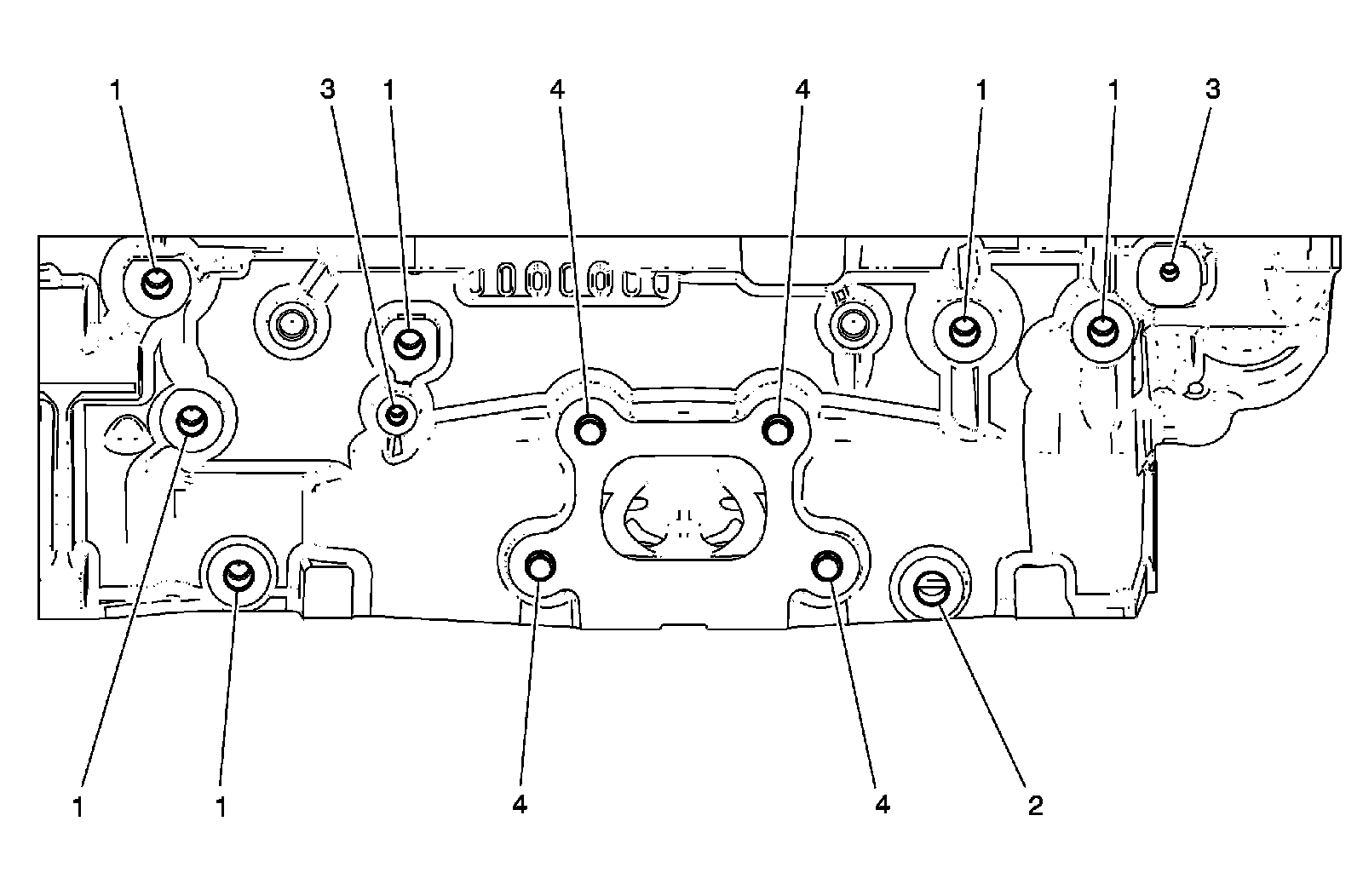

Left Cylinder Head Camshaft Cover Face

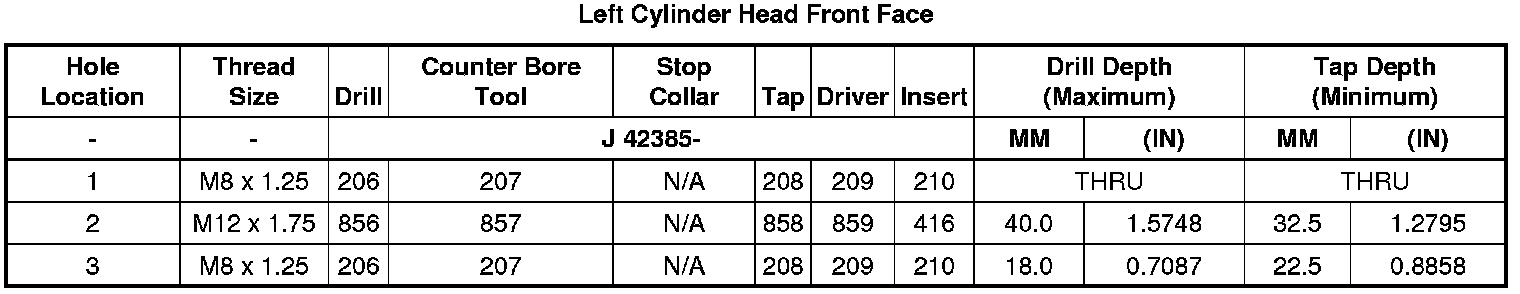

Left Cylinder Head Front Face

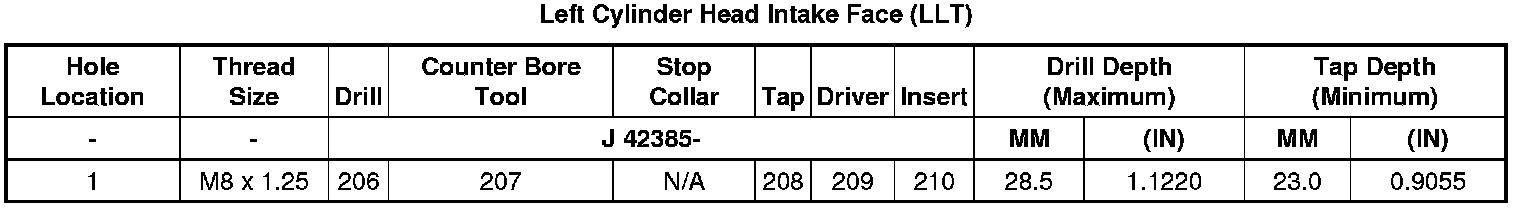

Left Cylinder Head Intake Face (LLT)
Left Cylinder Head Intake Face (LF1)

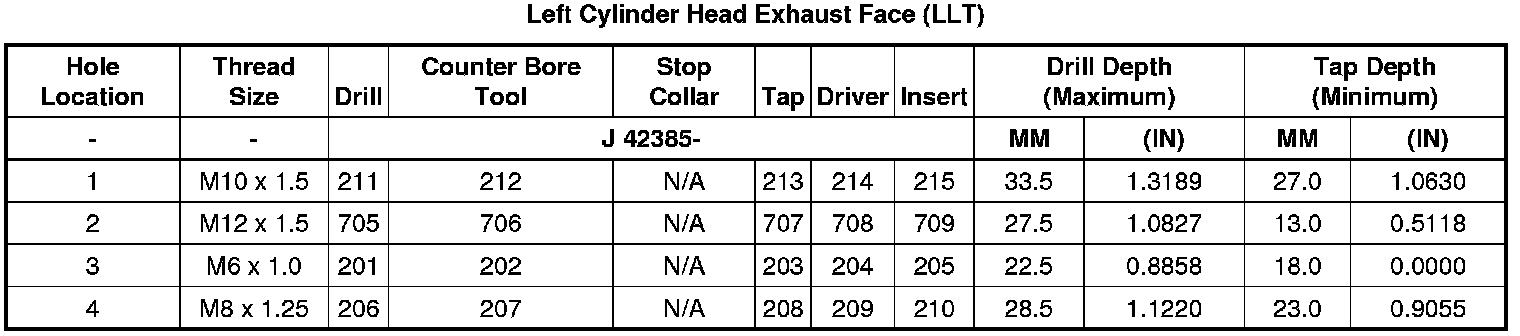

Left Cylinder Head Exhaust Face (LLT)
Left Cylinder Head Exhaust Face (LF1)

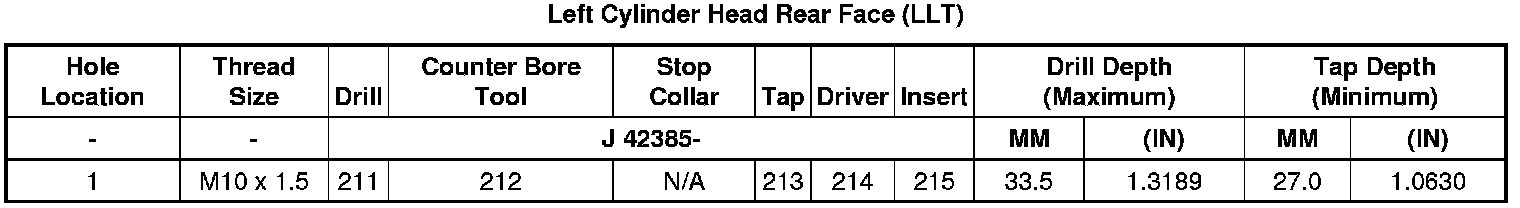

Left Cylinder Head Rear Face (LLT)

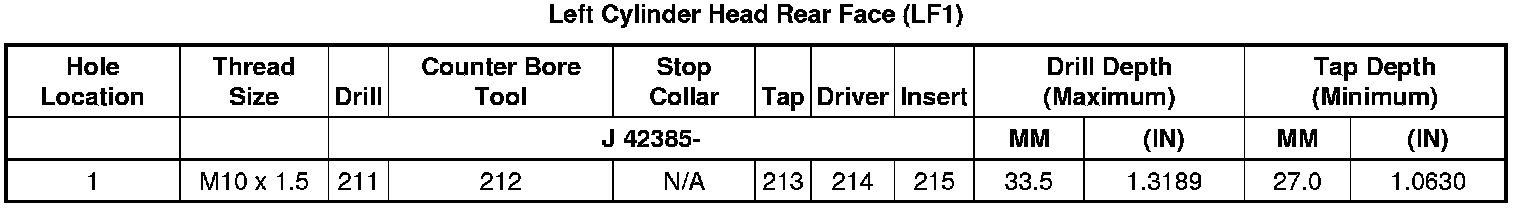

Left Cylinder Head Rear Face (LF1)

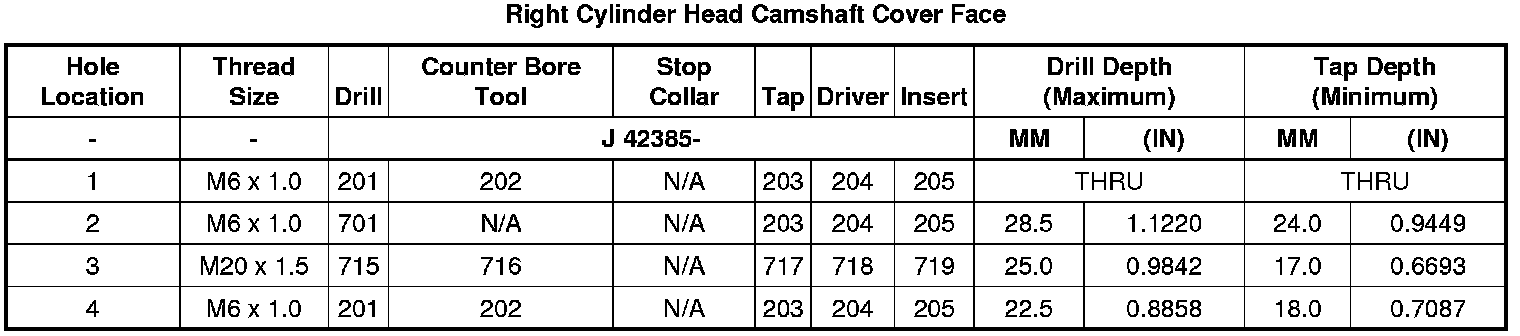

Right Cylinder Head Camshaft Cover Face

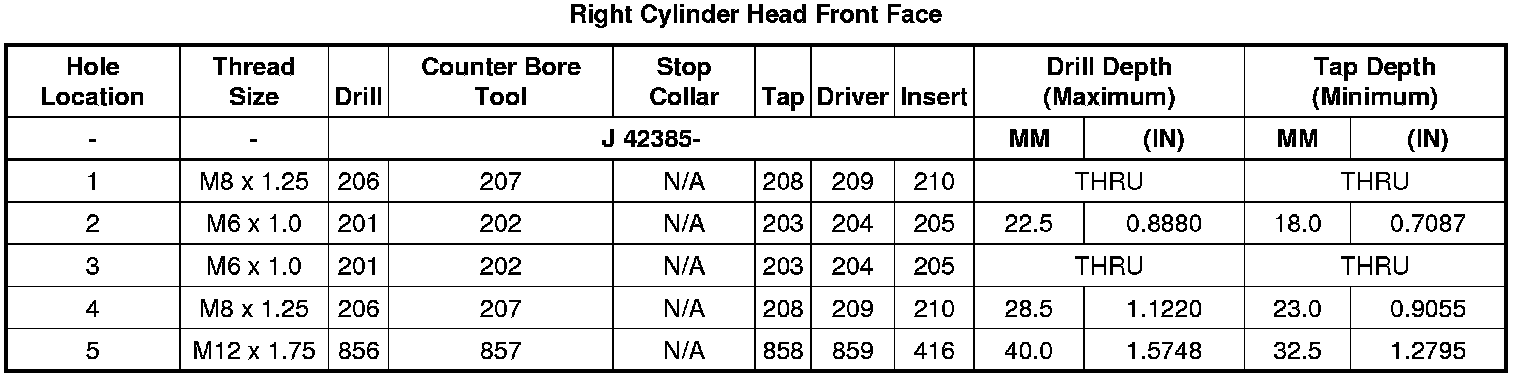

Right Cylinder Head Front Face

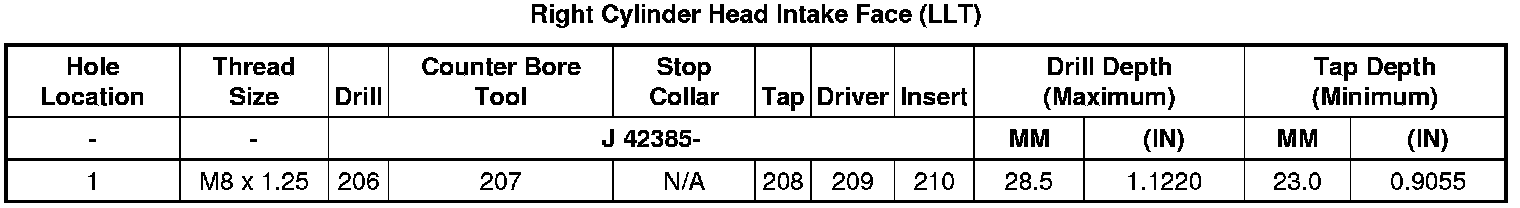

Right Cylinder Head Intake Face (LLT)
Right Cylinder Head Intake Face (LF1)

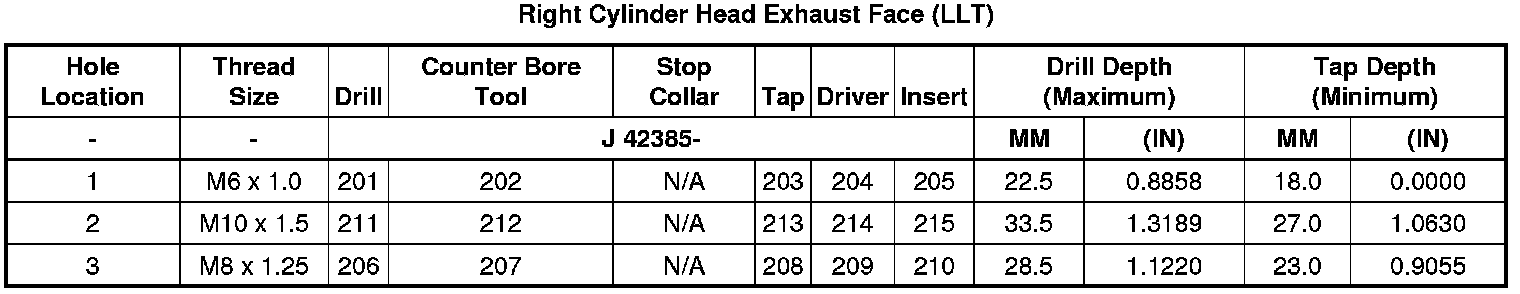

Right Cylinder Head Exhaust Face (LLT)

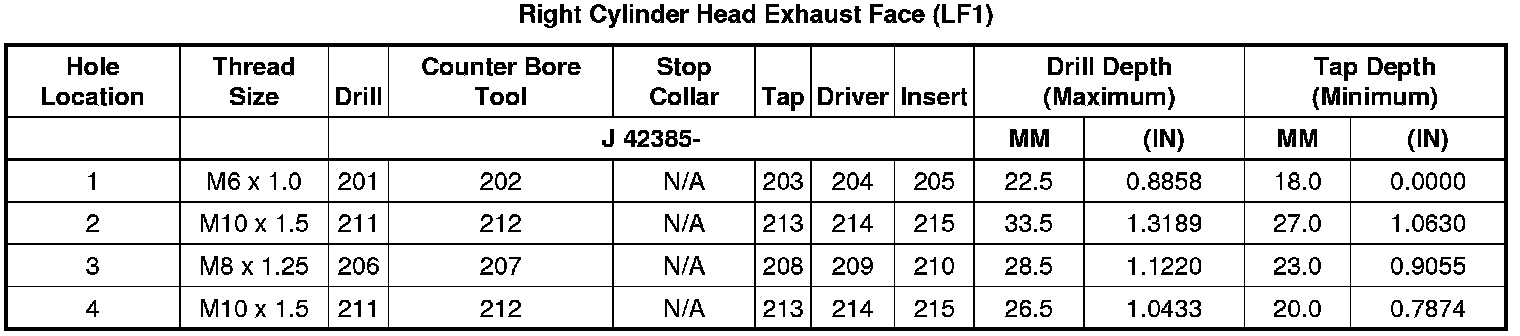

Right Cylinder Head Exhaust Face (LF1)

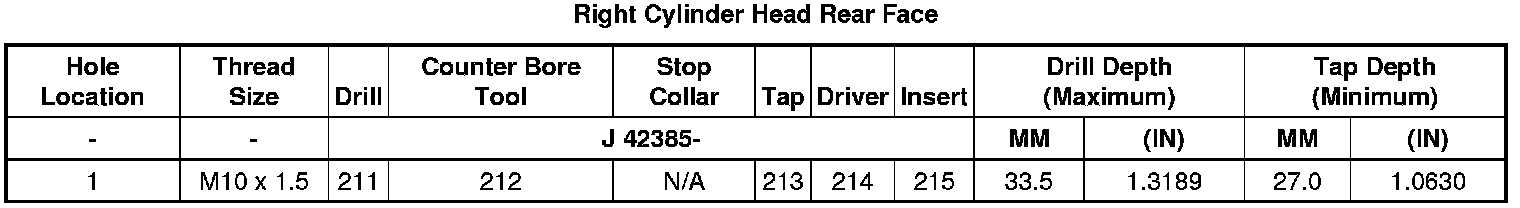

Right Cylinder Head Rear Face

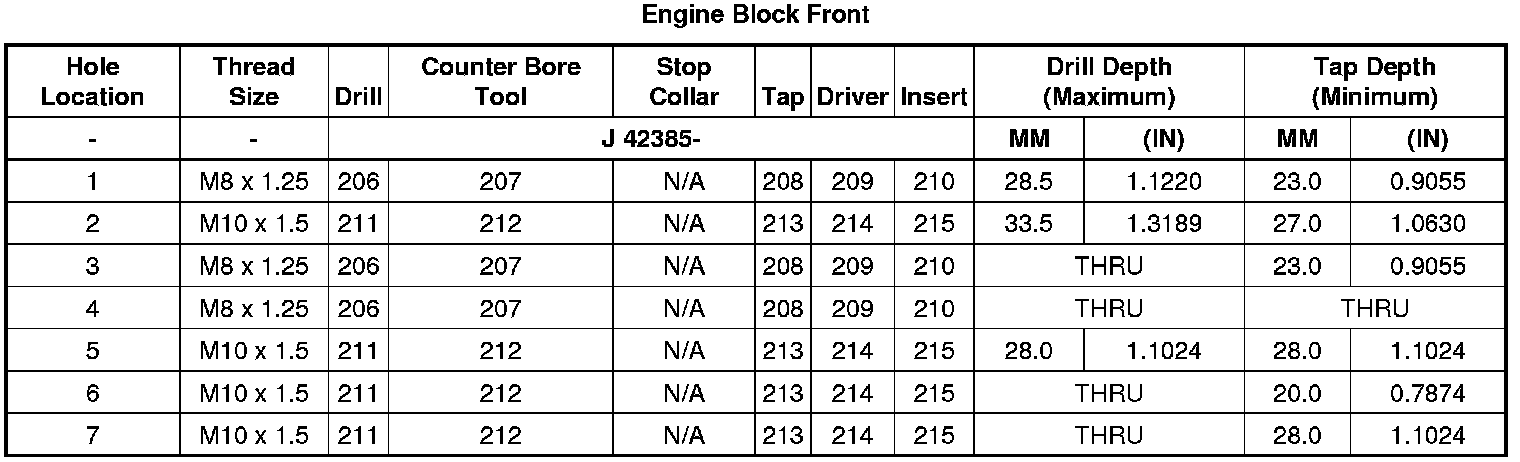

Engine Block Front

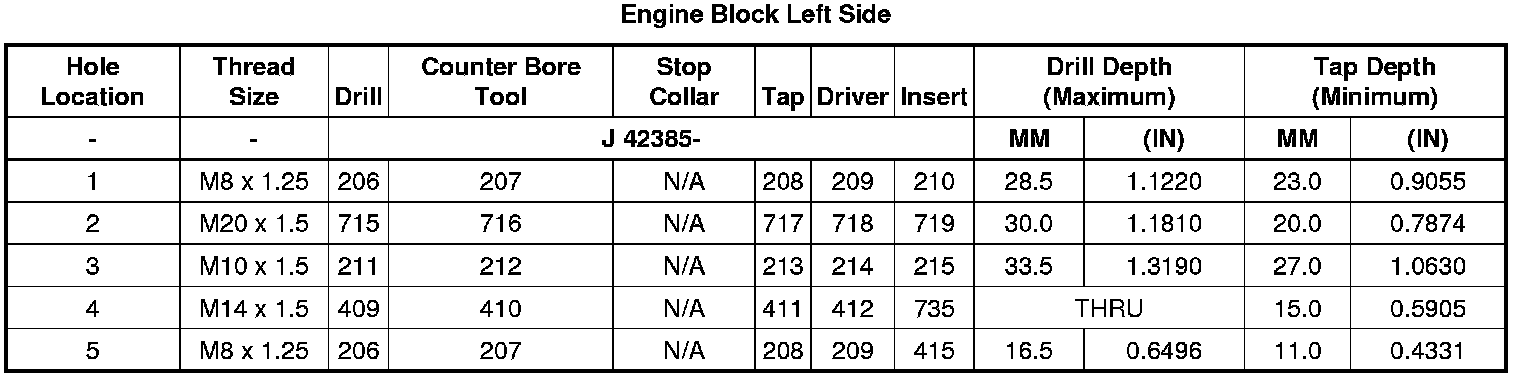

Engine Block Left Side

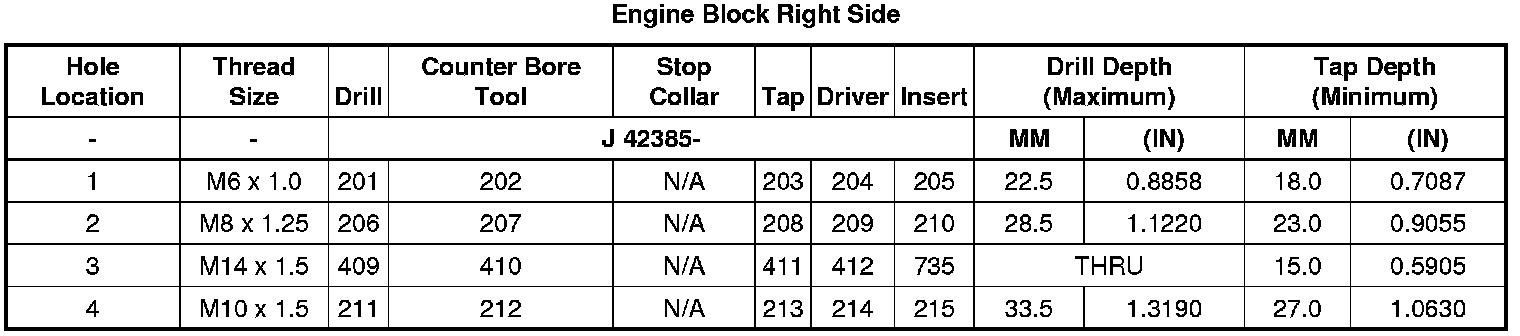

Engine Block Right Side

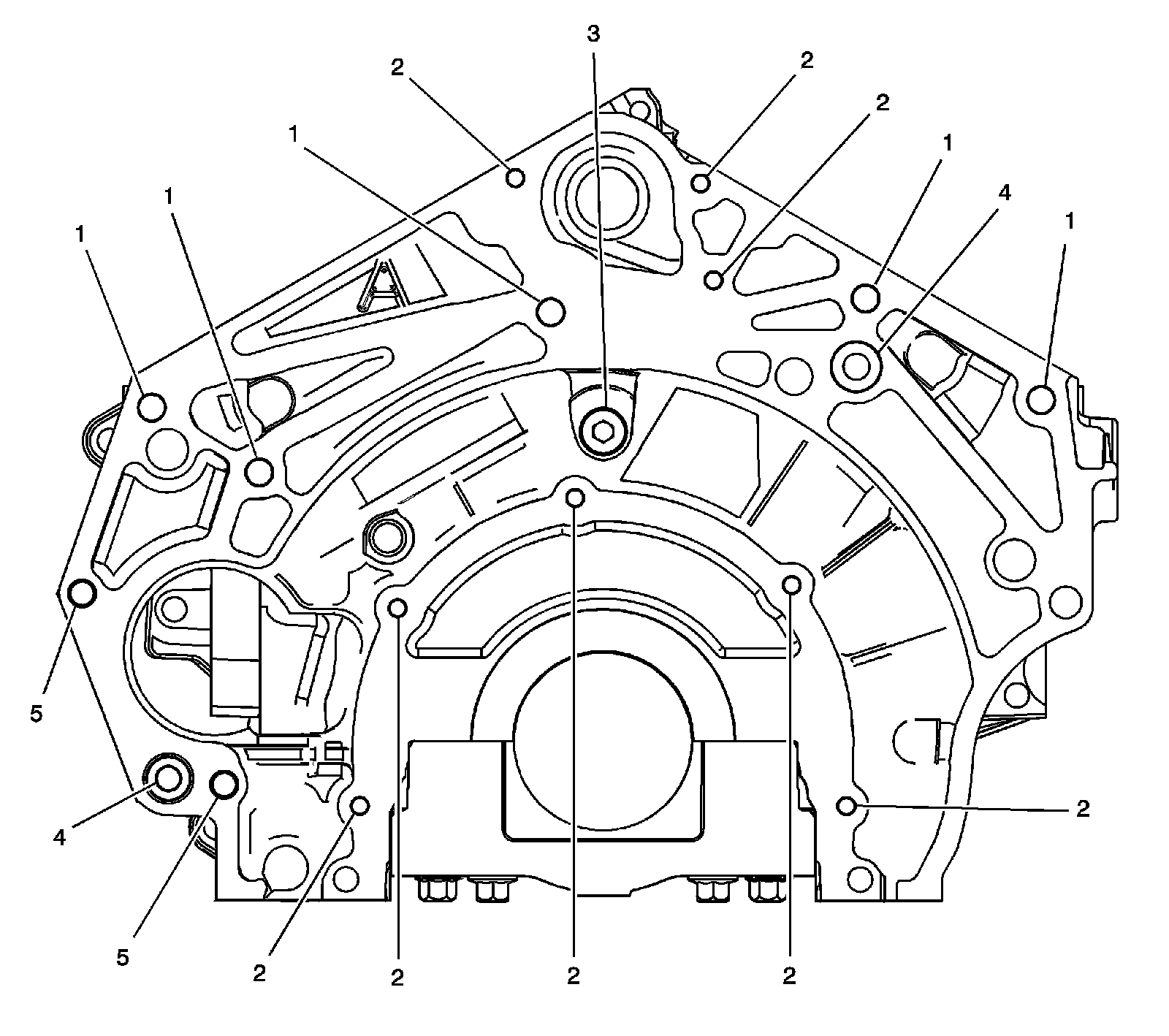

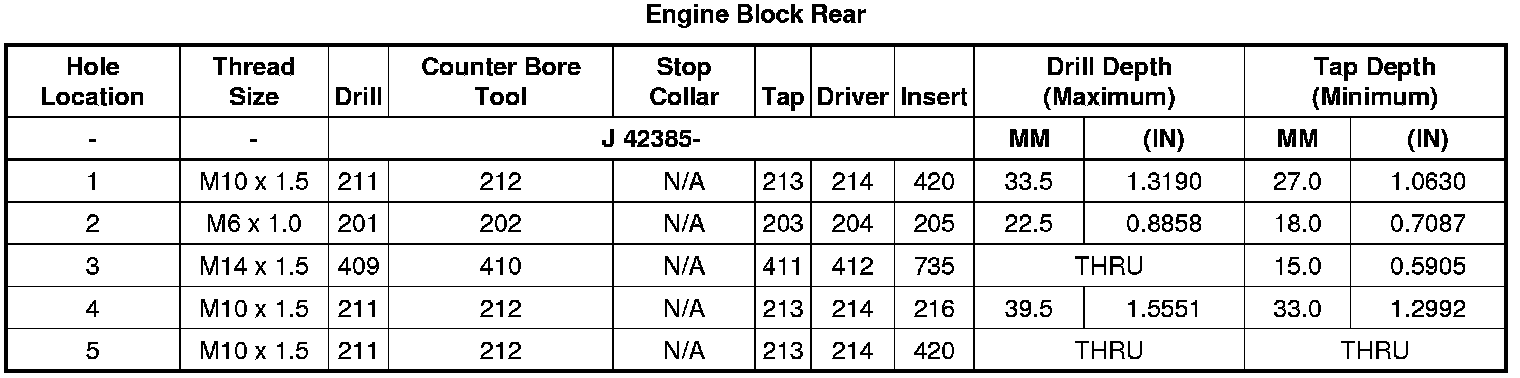

Engine Block Rear

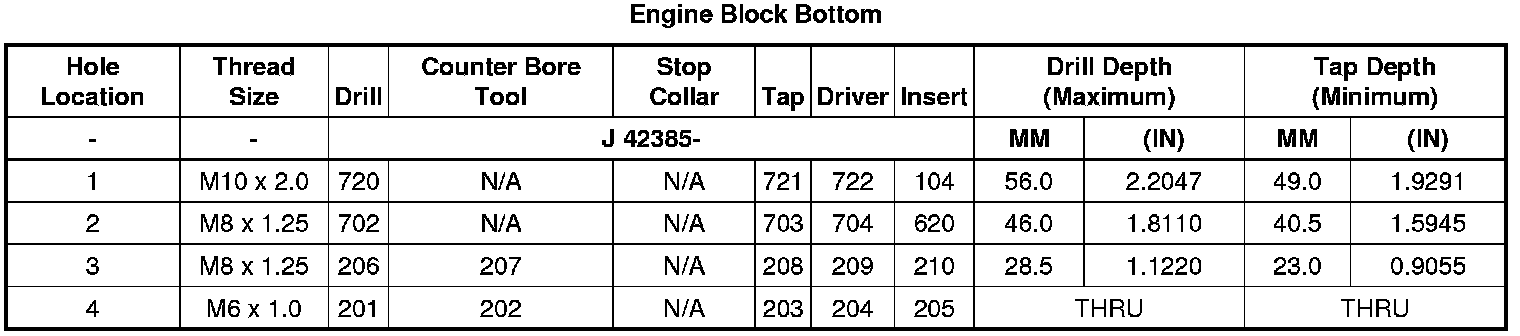

Engine Block Bottom

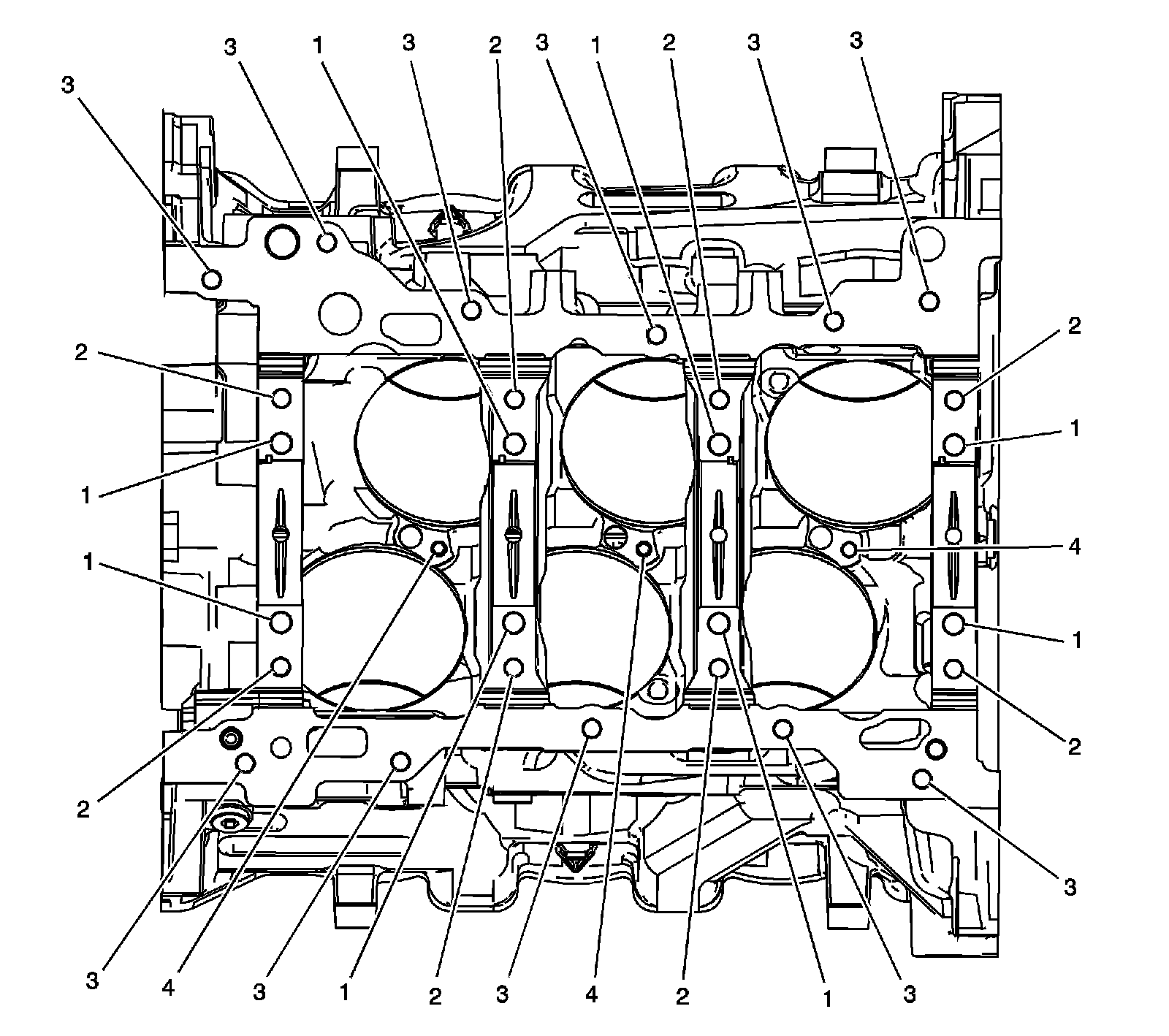

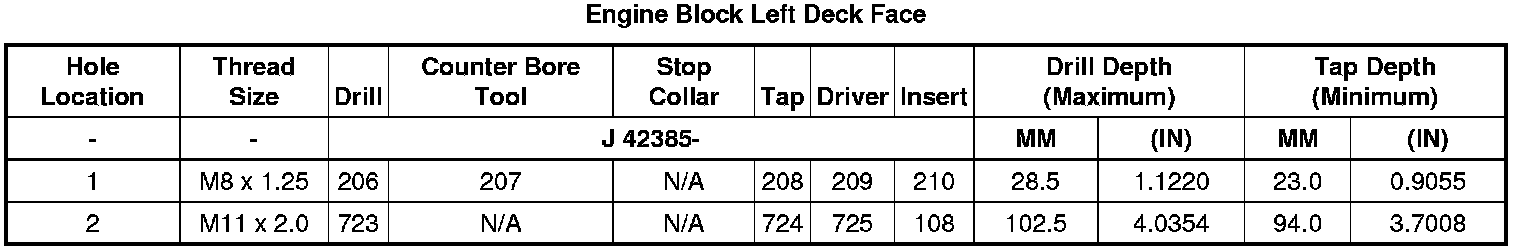

Engine Block Left Deck Face

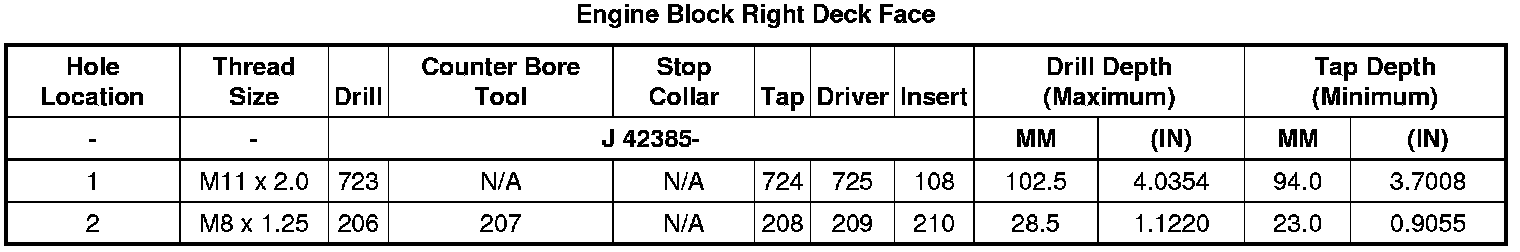

Engine Block Right Deck Face

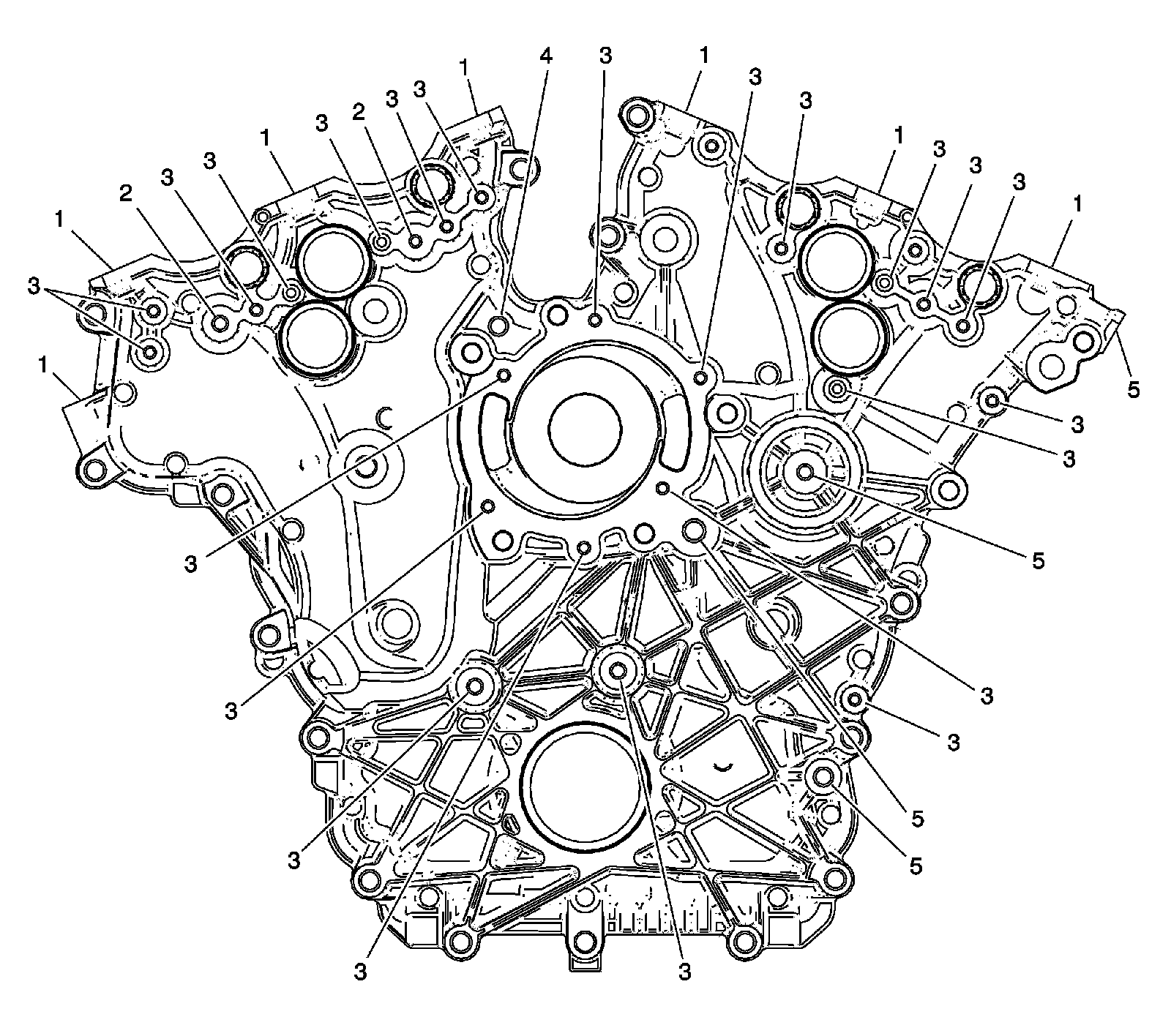

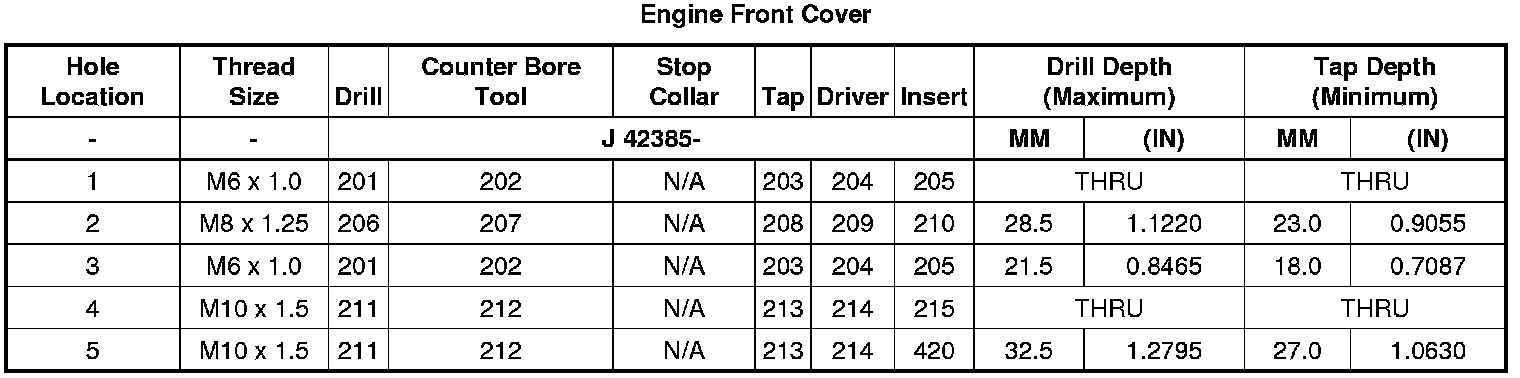

Engine Front Cover

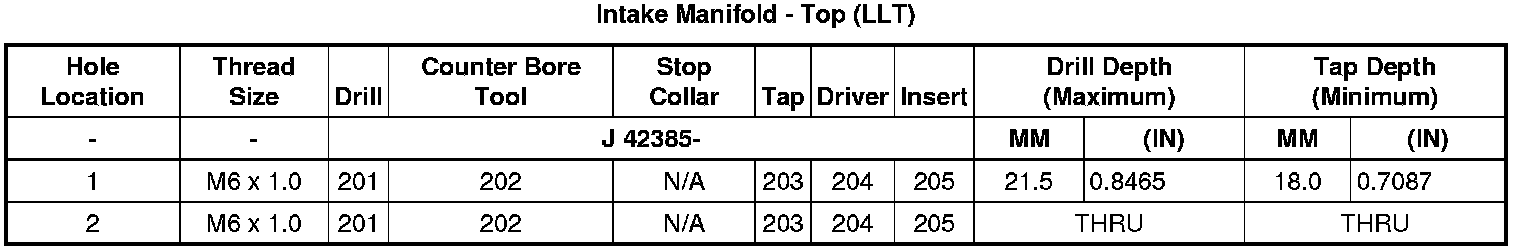

Intake Manifold- Top (LLT)

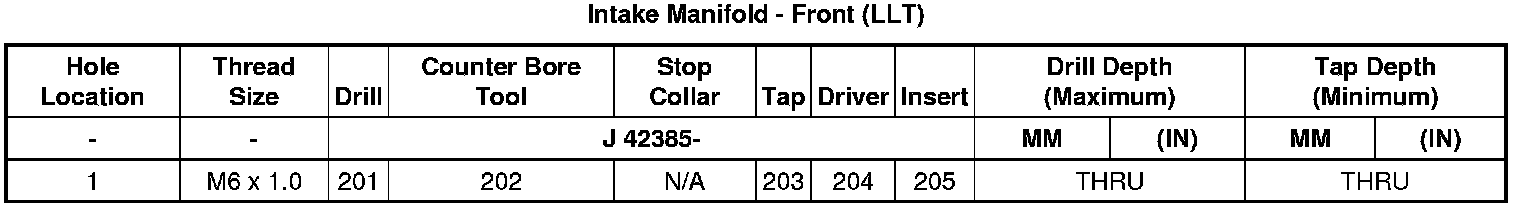

Intake Manifold- Front (LLT)
Intake Manifold- Left (LLT)
Intake Manifold- Right (LLT)

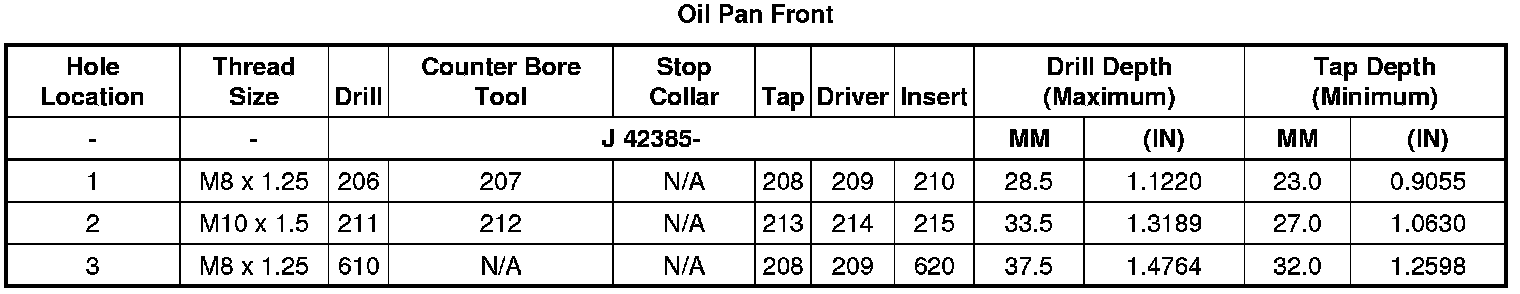

Oil Pan Front
Oil Pan Left Side

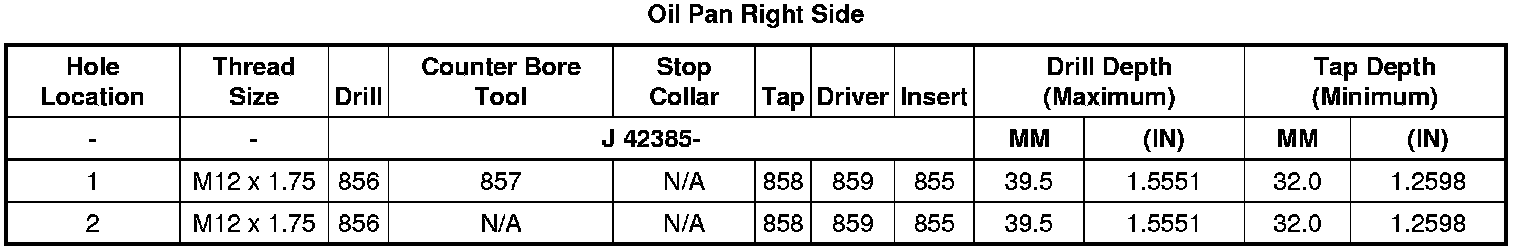

Oil Pan Right Side
Oil Pan Rear

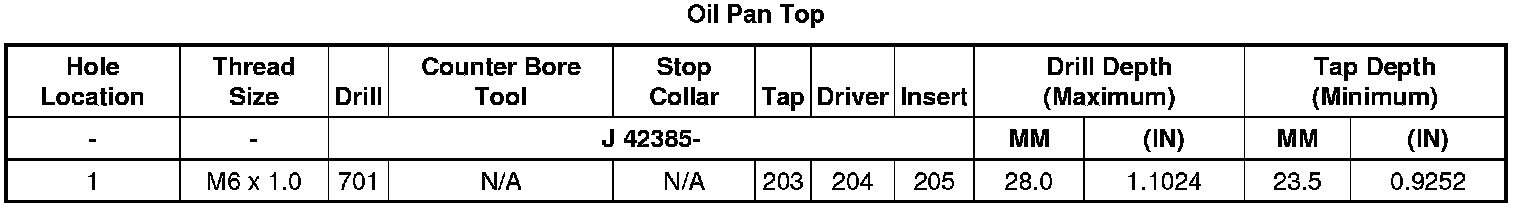

Oil Pan Top
