2012 Chevrolet Express 2500 V8-4.8LFACTORY OEM SERVICE PROCEDURE
Window Handle: Service and Repair
Door Window Regulator Handle Replacement
Tools Required
J 9886-01 Door Handle Clip Remover
Removal Procedure
1. Note the position of the door window regulator handle with the window in the full up position.
2. Place the door window regulator handle in the upward position.

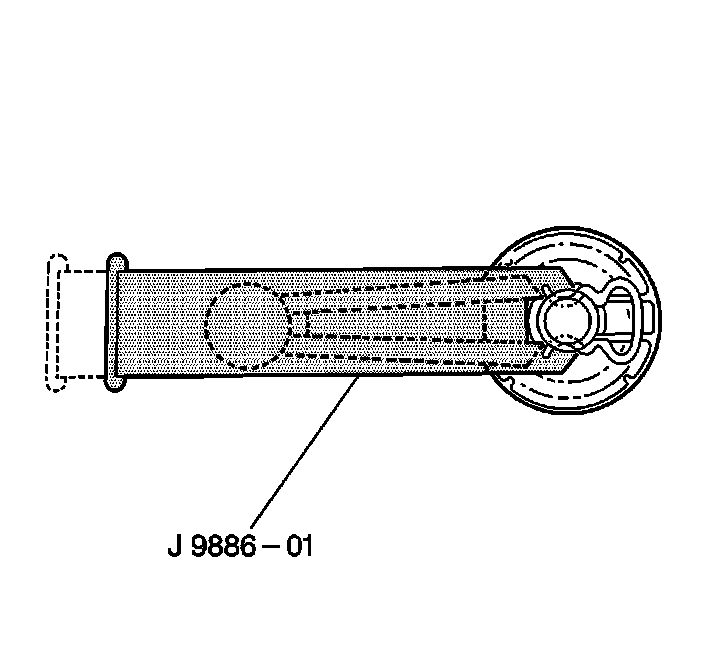

3. Remove the spring clip by inserting J 9886-01 between the window regulator handle and the door window regulator handle bearing plate. Press down to remove the spring clip.
4. Remove the window regulator handle.
5. Remove the door window regulator handle bearing plate.
Installation Procedure
1. Position the window to the full up position.

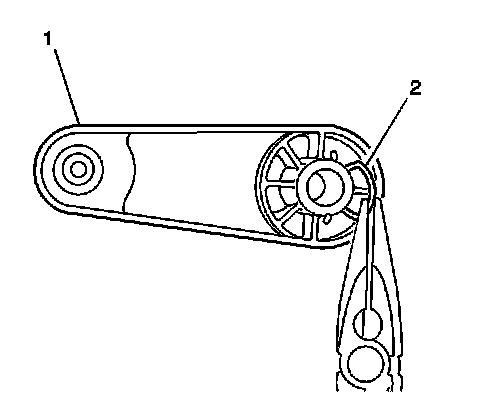

2. Install the spring clip (2) to the door window regulator handle (1).
3. Install the door window regulator handle (1) bearing plate.
4. Position the door window regulator (1) handle to the regulator.
5. Install the door window regulator handle (1), press in until fully seated.
