2012 Chevrolet Express 2500 V8-4.8LFACTORY OEM SERVICE PROCEDURE
Vehicle Speed Sensor: Service and Repair
Vehicle Speed Sensor Replacement

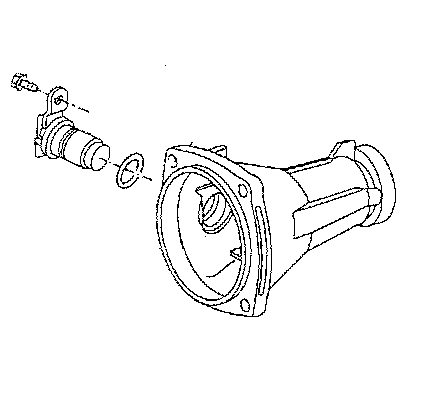

Removal Procedure
1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.
2. Remove the electrical connector from the speed sensor.
3. Remove the bolt.
4. Remove the speed sensor and the O-ring seal.
5. Inspect the seal and the transmission case. Replace the seal, if necessary.
Installation Procedure
1. Install the speed sensor and the O-ring seal into the transmission.
Caution:
Refer to Fastener Caution Fastener Caution.
2. Install the bolt and tighten to 11 Nm (97 lb in).
3. Install the electrical connector to the speed sensor.
4. Lower the vehicle.
