2012 Chevrolet Express 2500 V8-4.8LFACTORY OEM SERVICE PROCEDURE
Oil Pressure Sensor: Service and Repair
Engine Oil Pressure Sensor and/or Switch Replacement
Special Tools
J 41712 Oil Pressure Sensor Socket
Removal Procedure
1. Remove the engine cover. Refer to Engine Cover Replacement Service and Repair.

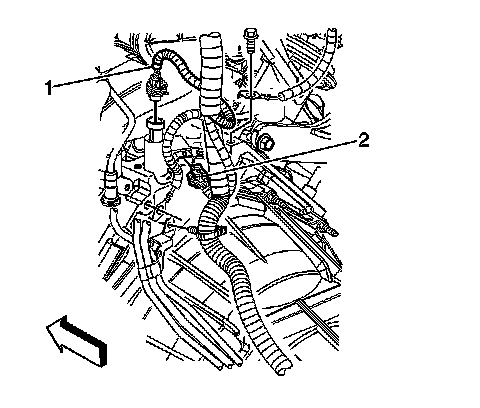

2. Disconnect the oil pressure sensor electrical connector (1).
3. Using J 41712 or equivalent, remove the oil pressure sensor.
Installation Procedure
1. Apply sealant to the threads of the oil pressure sensor. Refer to Adhesives, Fluids, Lubricants, and Sealers Adhesives, Fluids, Lubricants, and Sealers for the correct part number.
Caution:
Refer to Fastener Caution Fastener Caution.
2. Using J 41712 or equivalent, install the oil pressure sensor and tighten to 35 Nm (26 lb ft).
3. Connect the oil pressure sensor electrical connector (1).
4. Install the engine cover. Refer to Engine Cover Replacement Service and Repair.
