2012 Chevrolet Express 2500 V8-4.8LFACTORY OEM SERVICE PROCEDURE
HVAC Control Module- Auxiliary (C69 with Rear Auxiliary Controls)

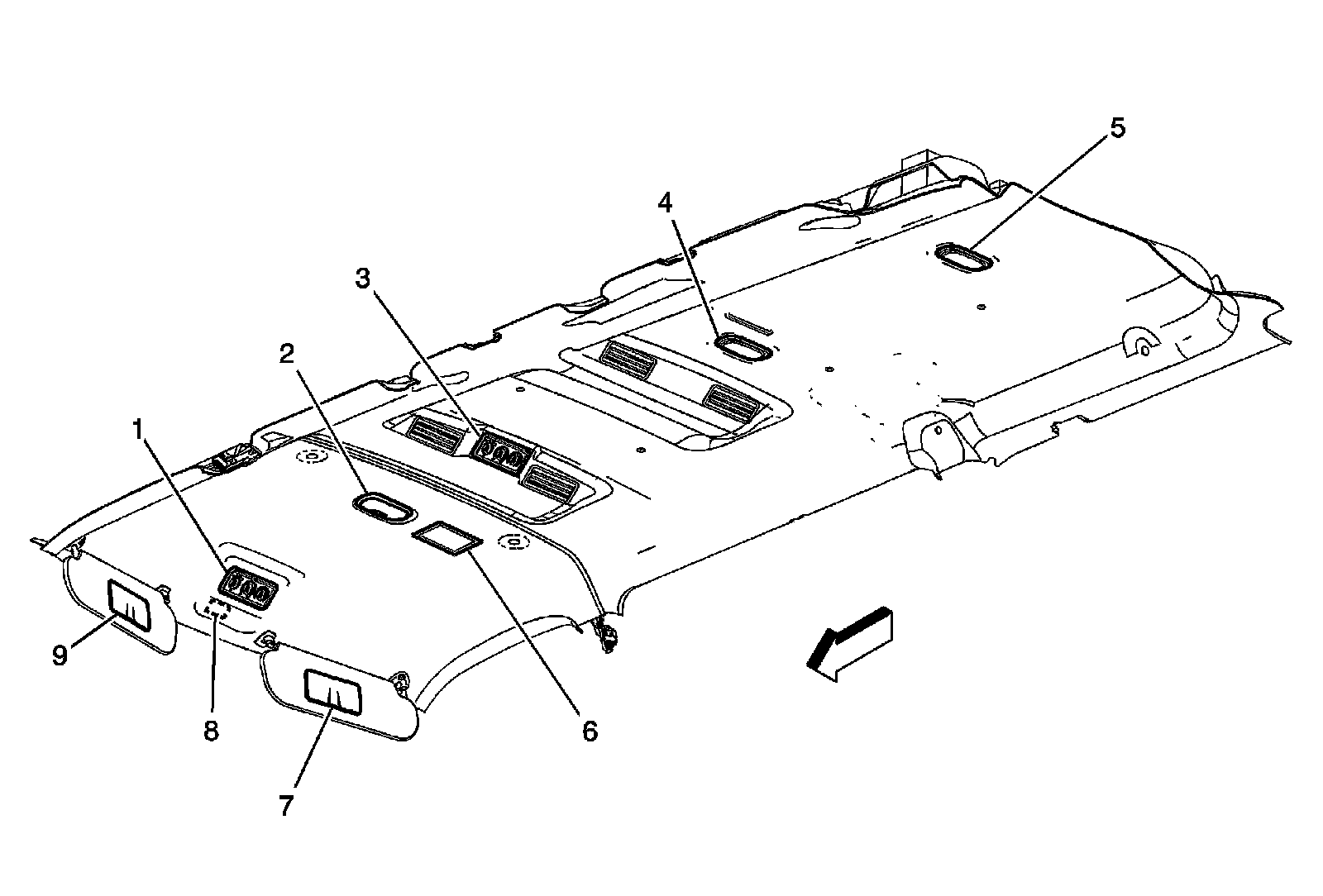

Passenger Compartment/Roof Component Views
Headliner
1 - HVAC Control Assembly- Front Auxiliary (C69)
2 - Dome/Reading Lamp- Front
3 - HVAC Control Assembly- Rear Auxiliary (C69 with Rear Auxiliary Controls)
4 - Dome/Reading Lamp- Middle (Passenger)
5 - Dome/Reading Lamp- Rear (Passenger)/Dome Lamp (Cargo)
6 - Electronic Compass Module (U80)
7 - Sunshade- Right (DH6)
8 - HVAC Control Module- Auxiliary (C69 with Rear Auxiliary Controls)
9 - Sunshade- Left (DH6 with YF7)
