2012 Chevrolet Cruze LTZFACTORY OEM SERVICE PROCEDURE
Installation Procedure

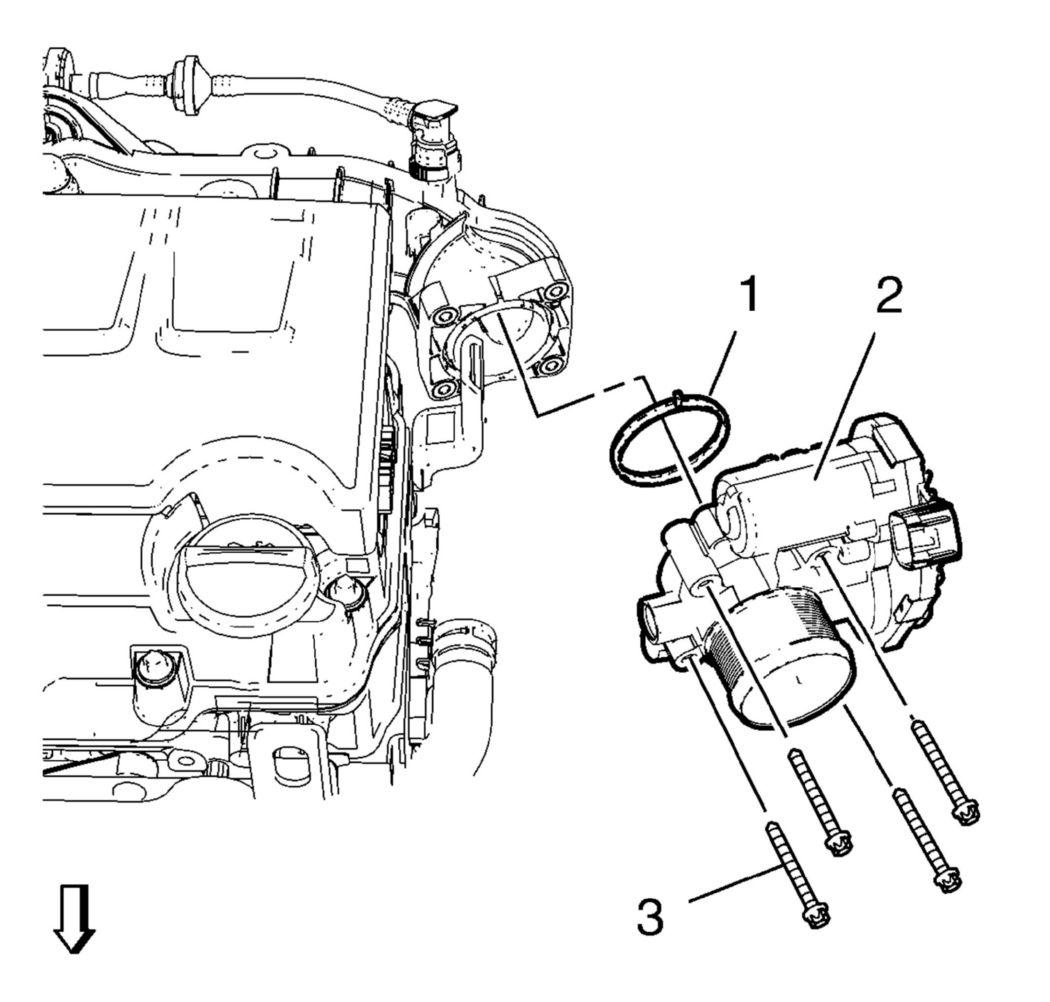

- Install the throttle body (2) along with a NEW throttle body seal ring (1).
- Install the 4 throttle body bolts (3) and tighten to 8 N.m (71 lb in).
- Install the charge air cooler outlet air hose to the throttle body. Refer to Charge Air Cooler Outlet Air Hose Replacement (Manual Transmission) , Charge Air Cooler Outlet Air Hose Replacement (Automatic Transmission) .

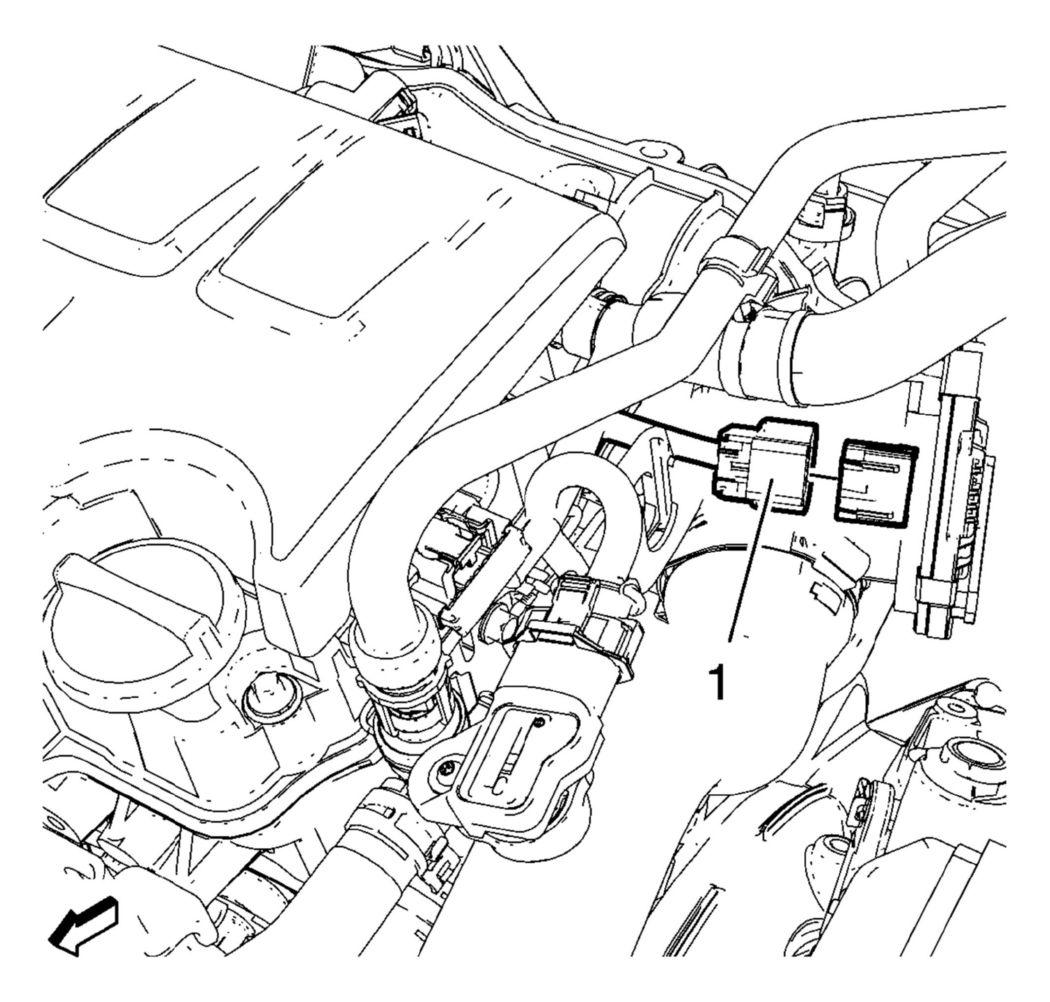

- Connect the throttle body wiring harness plug (1).
- Close the hood.
CAUTION:
Refer to Fastener Caution .
