2012 Chevrolet Cruze LTZFACTORY OEM SERVICE PROCEDURE
Air Cleaner Assembly Replacement
Air Cleaner Assembly Replacement

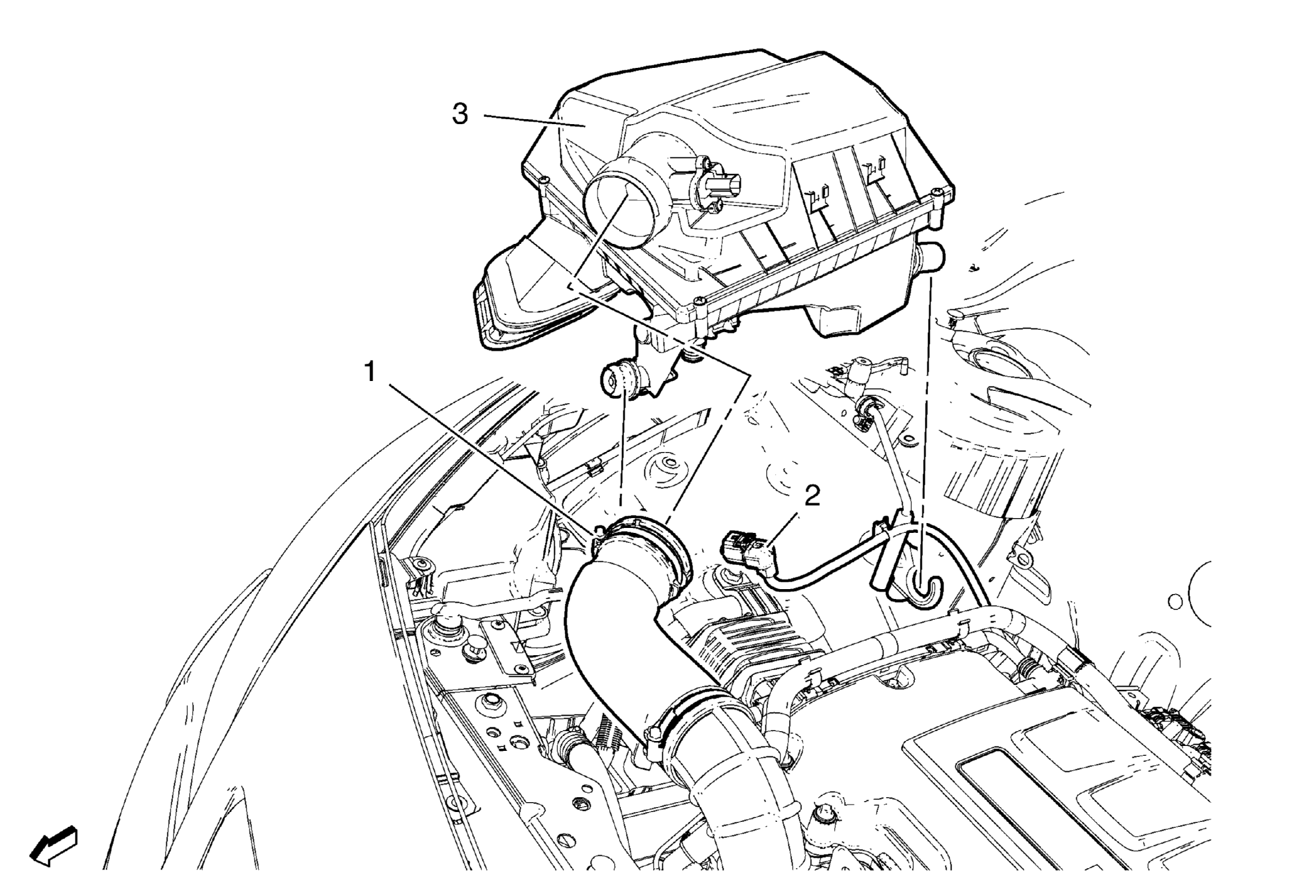

| Callout | Component Name |
|---|---|
| 1 | Air Cleaner Outlet Duct Clamp. Procedure Loosen clamp and remove air cleaner outlet duct from air cleaner assembly. |
| 2 | Mass Flow Sensor Procedure Disconnect mass air flow sensor wiring harness plug from mass air flow sensor and unclip from retainer clip. |
| 3 | Air Cleaner Assembly |
