2012 Chevrolet Cruze LS, Automatic TransFACTORY OEM SERVICE PROCEDURE
Installation Procedure
- Install a NEW throttle body gasket.

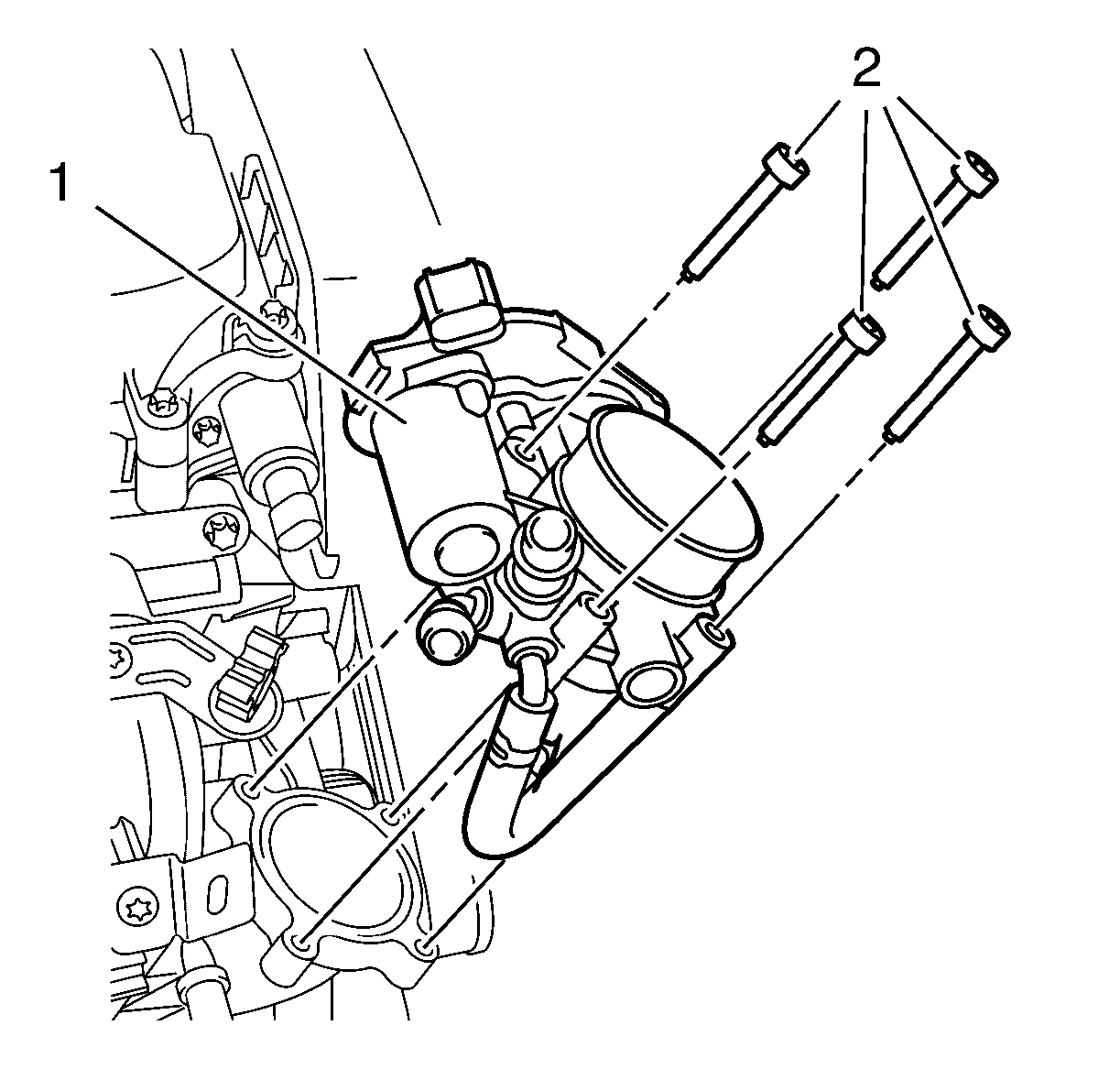

- Install the throttle body (1).
- Install the 4 throttle body bolts (2) and tighten to 8 N.m (71 lb in).
- Connect the throttle body heater inlet pipe (3).
- Connect the throttle body heater outlet pipe (4).
- Connect the positive crankcase ventilation pipe (1).
- Connect the wiring harness plug (2).
- Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
- Perform the throttle/idle learn procedure. Refer to Throttle/Idle Learn .
CAUTION:
Refer to Fastener Caution .

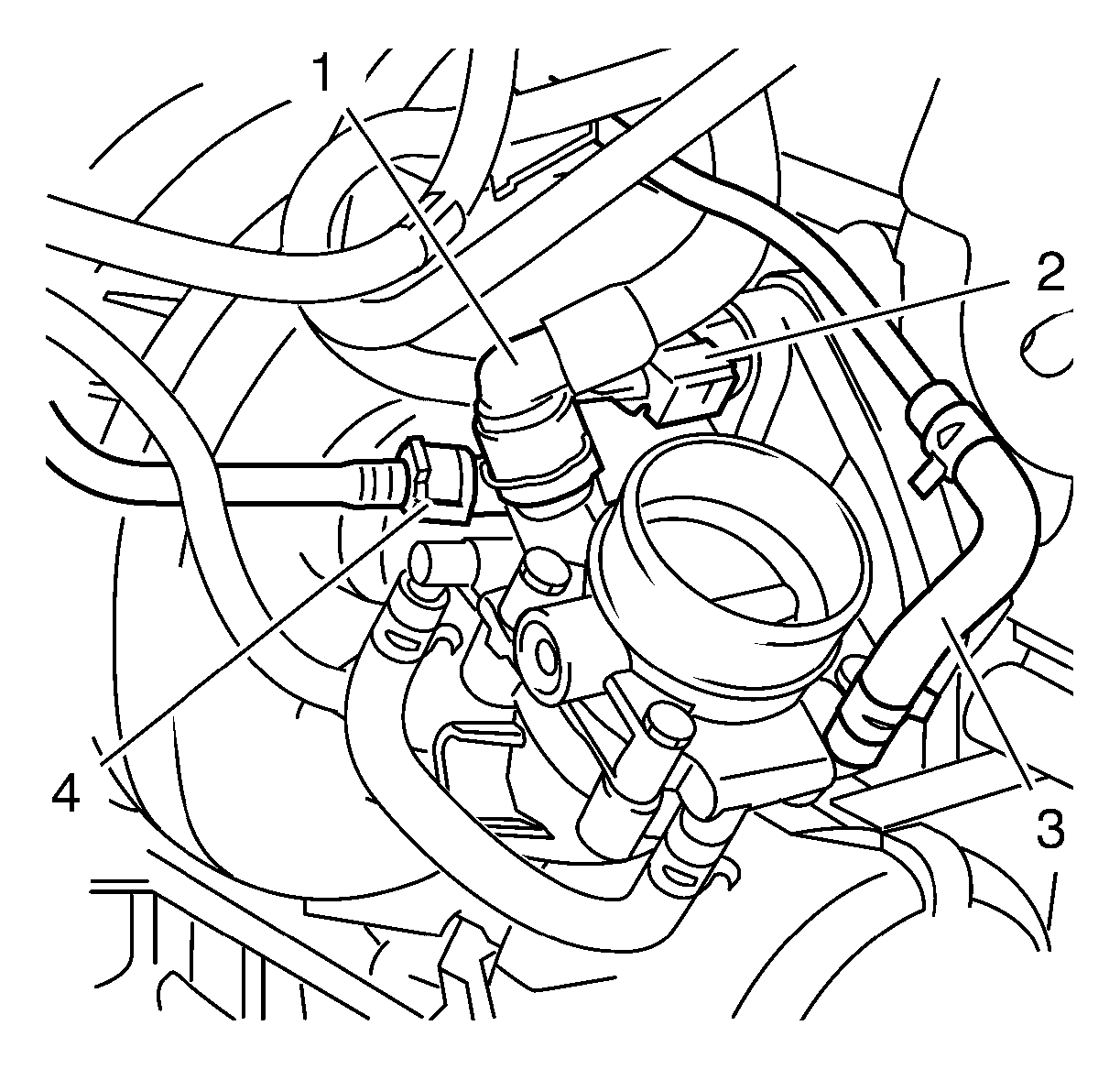

Fig 2: Throttle Body Heater Outlet Pipe, Throttle Body Heater Inlet Pipe And Positive Crankcase Ventilation Pipe
