2012 Chevrolet Cruze LS, Automatic TransFACTORY OEM SERVICE PROCEDURE
Installation Procedure

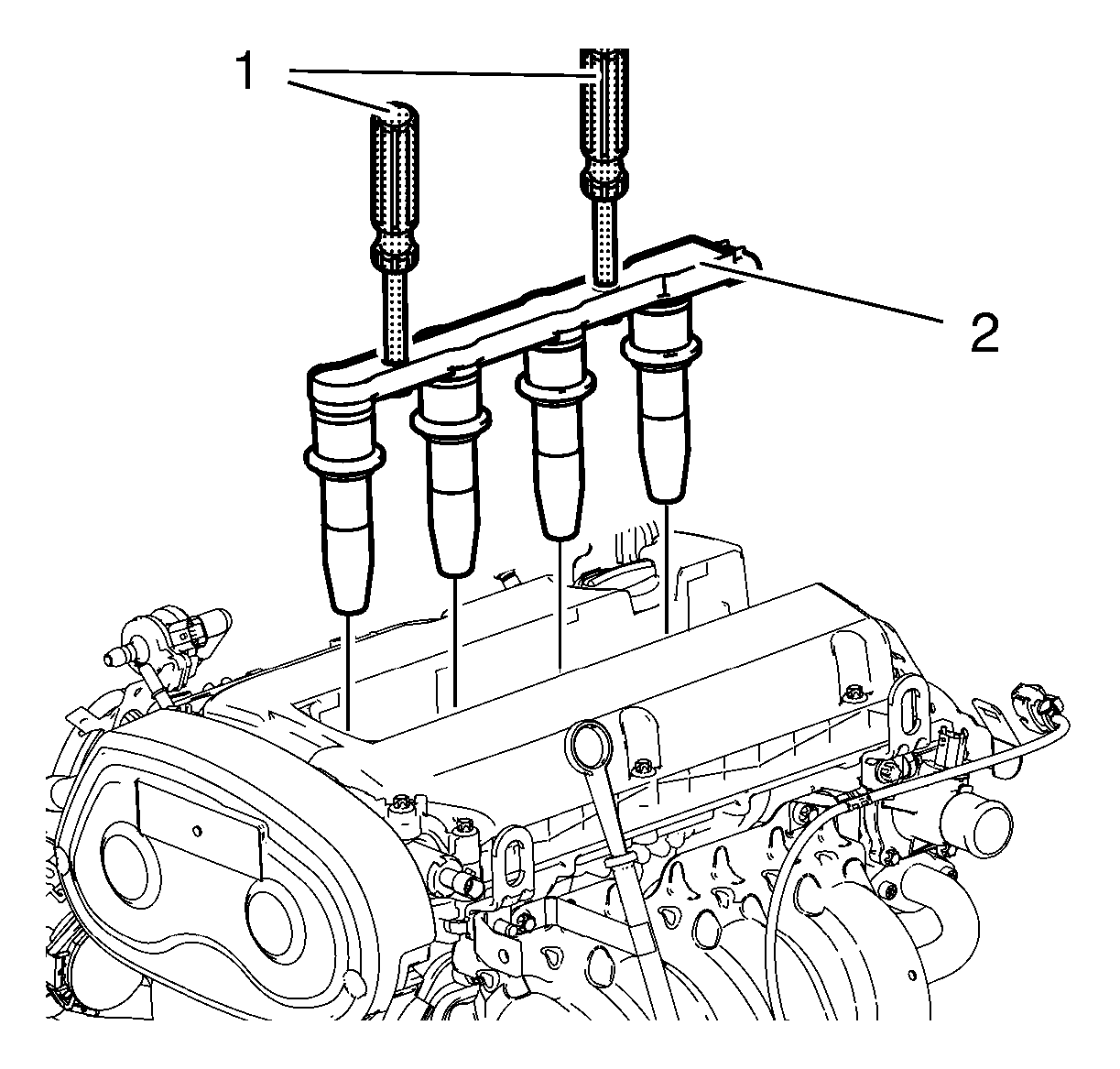

- Install the EN-6009 remover/installer (1).
- Remove the ignition coil (2).
- Remove the EN-6009 remover/installer (1).
- Install the 2 ignition coil bolts an tighten to 8 N.m (71 lb in).NOTE:
Note the arrow on the cover.
- Install the ignition coil cover in the direction of the arrow.

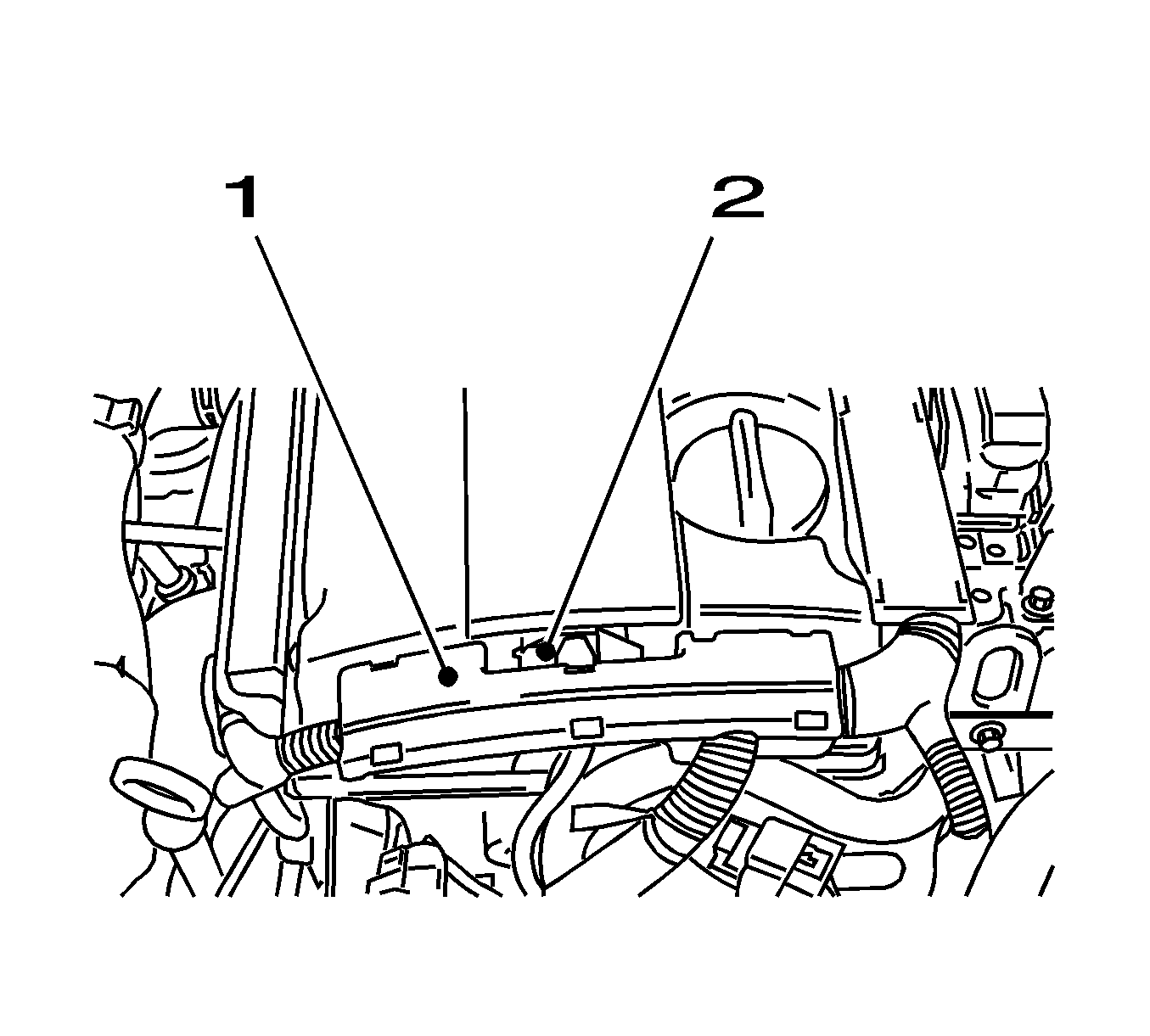

- Connect the ignition coil plug (2).
- Install the engine wiring harness guide (1) at the cylinder head.
