2012 Chevrolet Cruze LS, Automatic TransFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor Replacement
Camshaft Position Sensor Replacement

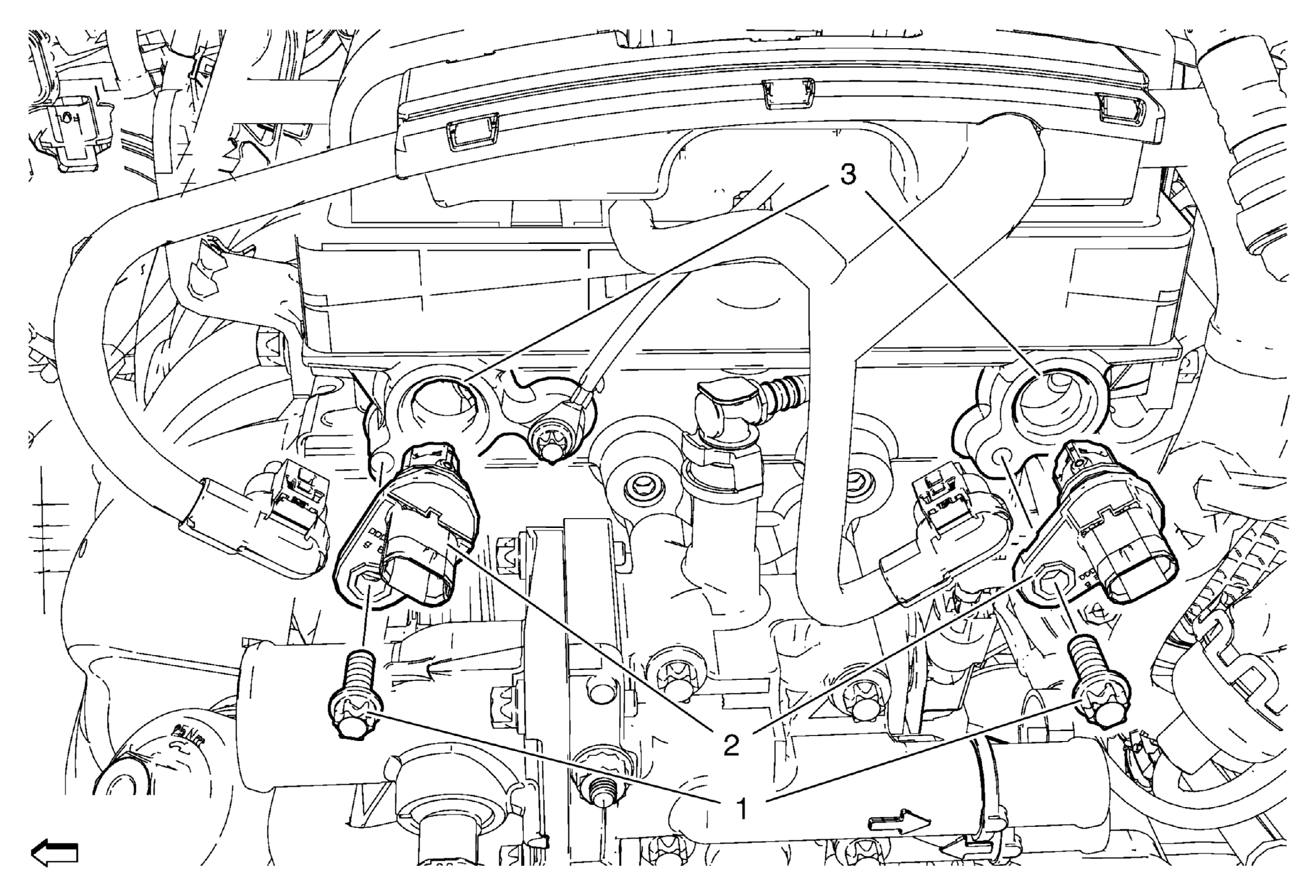

| Callout | Component Name |
|---|---|
| 1 | Camshaft Position Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 6 N.m (53 lb in) |
| 2 | Camshaft Position Sensor Procedure Disconnect electrical connectors as needed. |
| 3 | Camshaft Position Sensor Seal Ring |
