2012 Chevrolet Cruze LS, Automatic TransFACTORY OEM SERVICE PROCEDURE
Installation Procedure

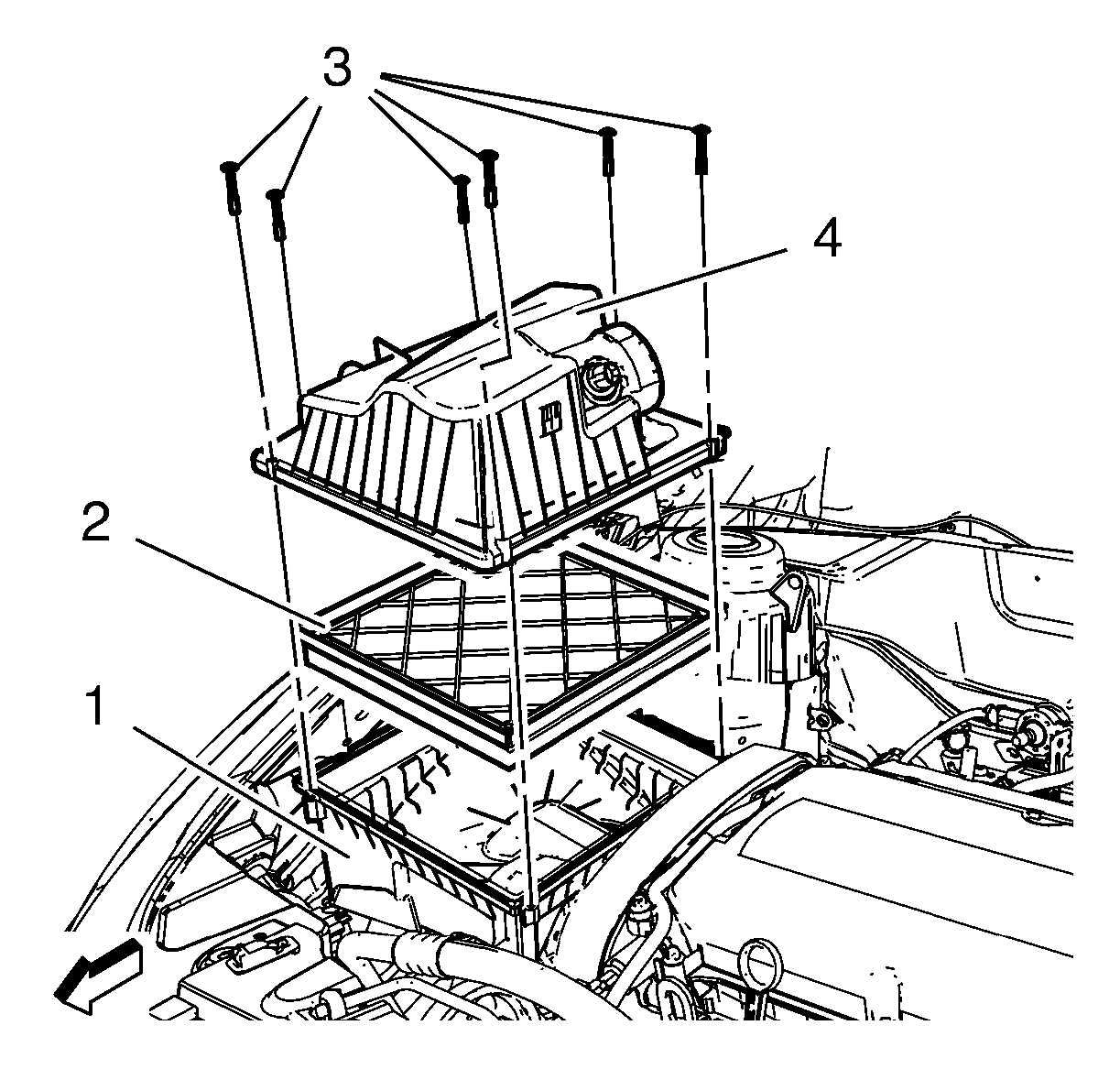

- Install the air cleaner element (2) into the air cleaner housing (1).
- Install the air cleaner housing cover (4).
- Install the 6 air cleaner housing cover bolts (3) and tighten to 5 N.m (44 lb in).
- Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
- Connect the intake air sensor wiring harness plug (1).
- Close the hood.
CAUTION:
Refer to Fastener Caution .
