2012 Chevrolet Cruze L4-1.8LFACTORY OEM SERVICE PROCEDURE
Engine Control Module: Locations
Powertrain Component Views

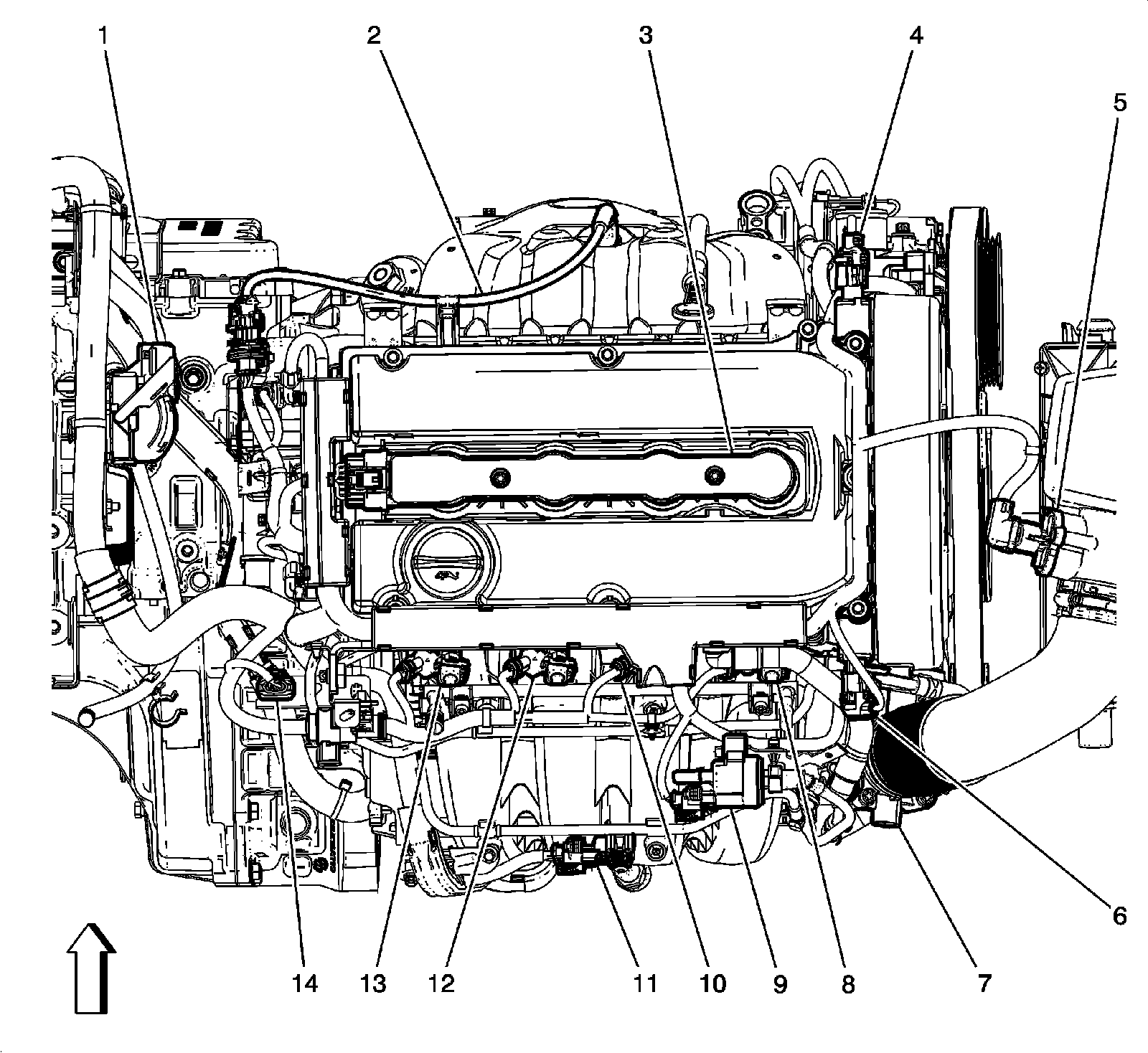

Top of Engine Components (LUW)
1 - K20 Engine Control Module
2 - B52A Heated Oxygen Sensor 1
3 - T8 Ignition Coil
4 - Q6E Camshaft Position Actuator Solenoid Valve - Exhaust
5 - B75B Mass Air Flow/Intake Air Temperature Sensor
6 - Q6F Camshaft Position Actuator Solenoid Valve - Intake
7 - Q38 Throttle Body
8 - Q17A Fuel Injector 1
9 - Q12 Evaporative Emission Purge Solenoid Valve
10 - Q17B Fuel Injector 2
11 - B74 Manifold Absolute Pressure Sensor
12 - Q17C Fuel Injector 3
13 - Q17D Fuel Injector 4
14 - B26 Crankshaft Position Sensor
