2012 Chevrolet Cruze L4-1.8LFACTORY OEM SERVICE PROCEDURE
Fuel Level Sensor: Service and Repair
Fuel Level Sensor Replacement
Removal Procedure
Warning: Refer to Gasoline/Gasoline Vapors Warning Service Precautions.
1. Remove and disassemble fuel tank. Refer to Fuel Tank Fuel Pump Module Replacement (1.8L 2H0 and LUW) Fuel Tank Fuel Pump Module Replacement.

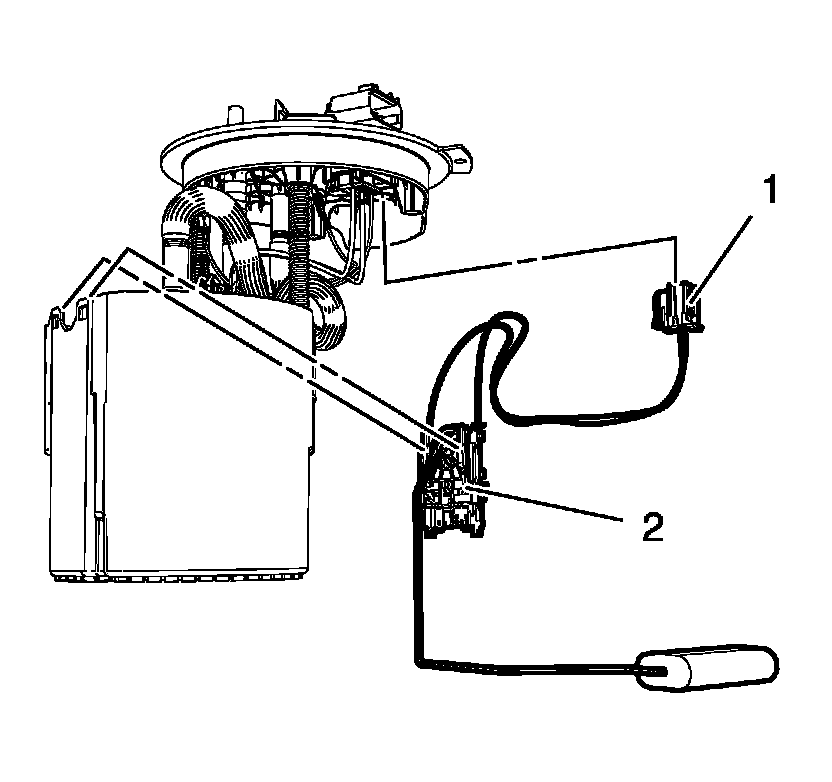

2. Disconnect the fuel sender assembly wiring harness plug (1).
3. Unclip the 2 fuel sender retainer pins.
4. Remove the fuel sender assembly (2).
Installation Procedure
1. Install the fuel sender assembly (2).
2. Clip in the 2 fuel sender retainer pins.
3. Connect the fuel sender assembly wiring harness plug (1).
4. Assemble and install the fuel tank. Refer to Fuel Tank Fuel Pump Module Replacement (1.8L 2H0 and LUW) Fuel Tank Fuel Pump Module Replacement.
