2012 Chevrolet Cruze L4-1.8LFACTORY OEM SERVICE PROCEDURE
Battery Current Sensor: Service and Repair
Battery Current Sensor Replacement
Removal Procedure
1. Open the hood.
2. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without Start/Stop System) Battery Negative Cable Disconnection and Connection (without Start/Stop System).

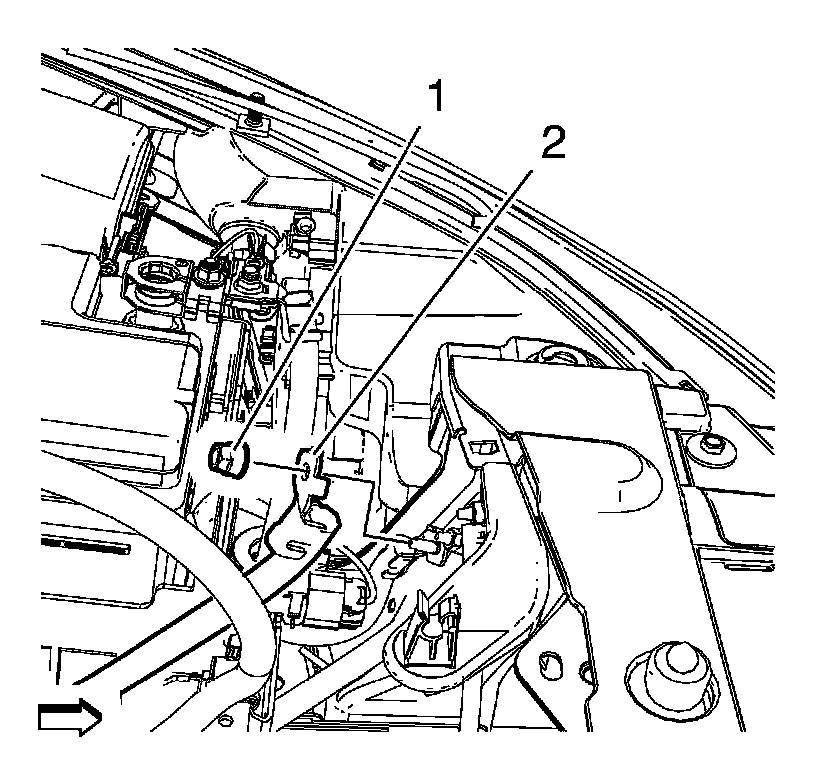

3. Remove the battery ground cable nut (1).

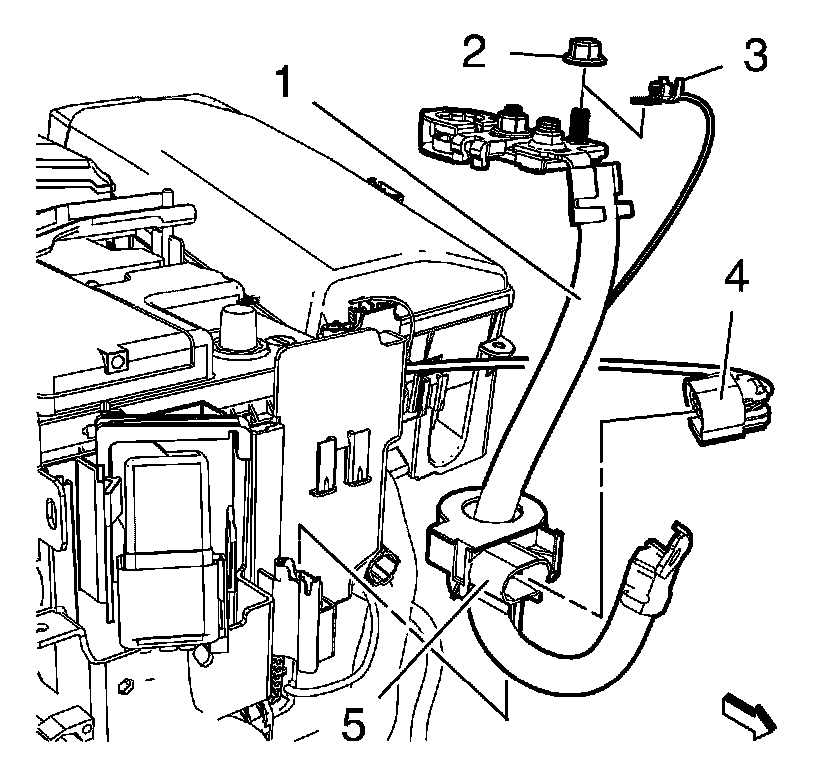

4. Remove the battery negative cable (2).
5. Disconnect the wiring harness current sensor plug (4).
6. Remove the current sensor (5) from the battery tray.

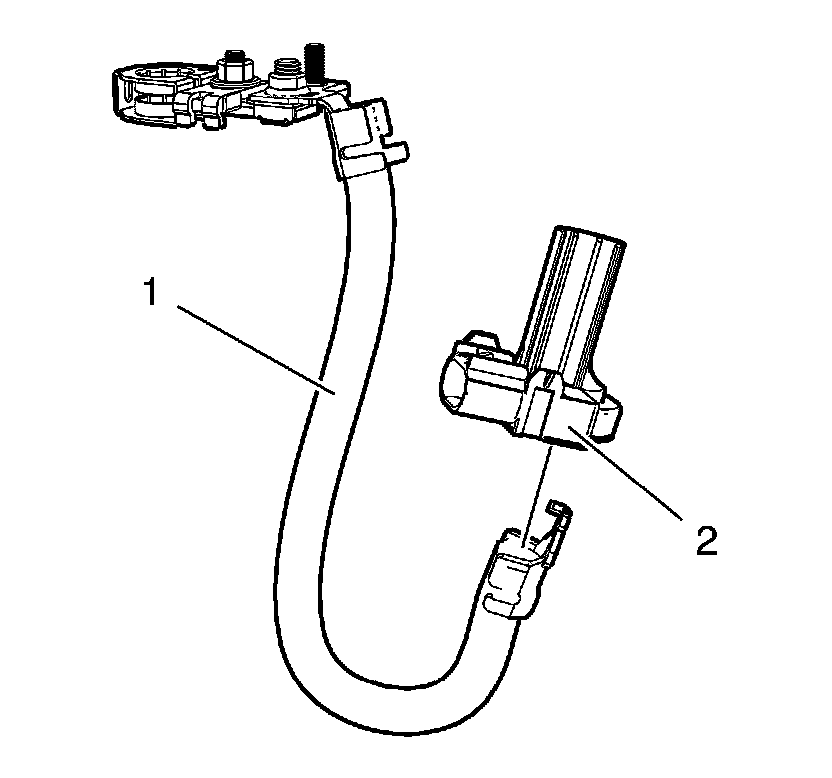

7. Remove the current sensor (2) from the battery negative cable (1).
Installation Procedure
1. Install the current sensor (2) to the battery negative cable (1).
2. Install the current sensor (5) to the battery tray.
3. Connect the wiring harness current sensor plug (4).
4. Install the battery negative cable (2).
Caution: Refer to Fastener Caution Fastener Caution.
5. Install the battery ground cable nut (1) and tighten to 9 Nm (80 lb in).
6. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without Start/Stop System) Battery Negative Cable Disconnection and Connection (without Start/Stop System).
7. Close the hood.
