2012 Chevrolet Cruze L4-1.8LFACTORY OEM SERVICE PROCEDURE
Battery Current Sensor: Locations

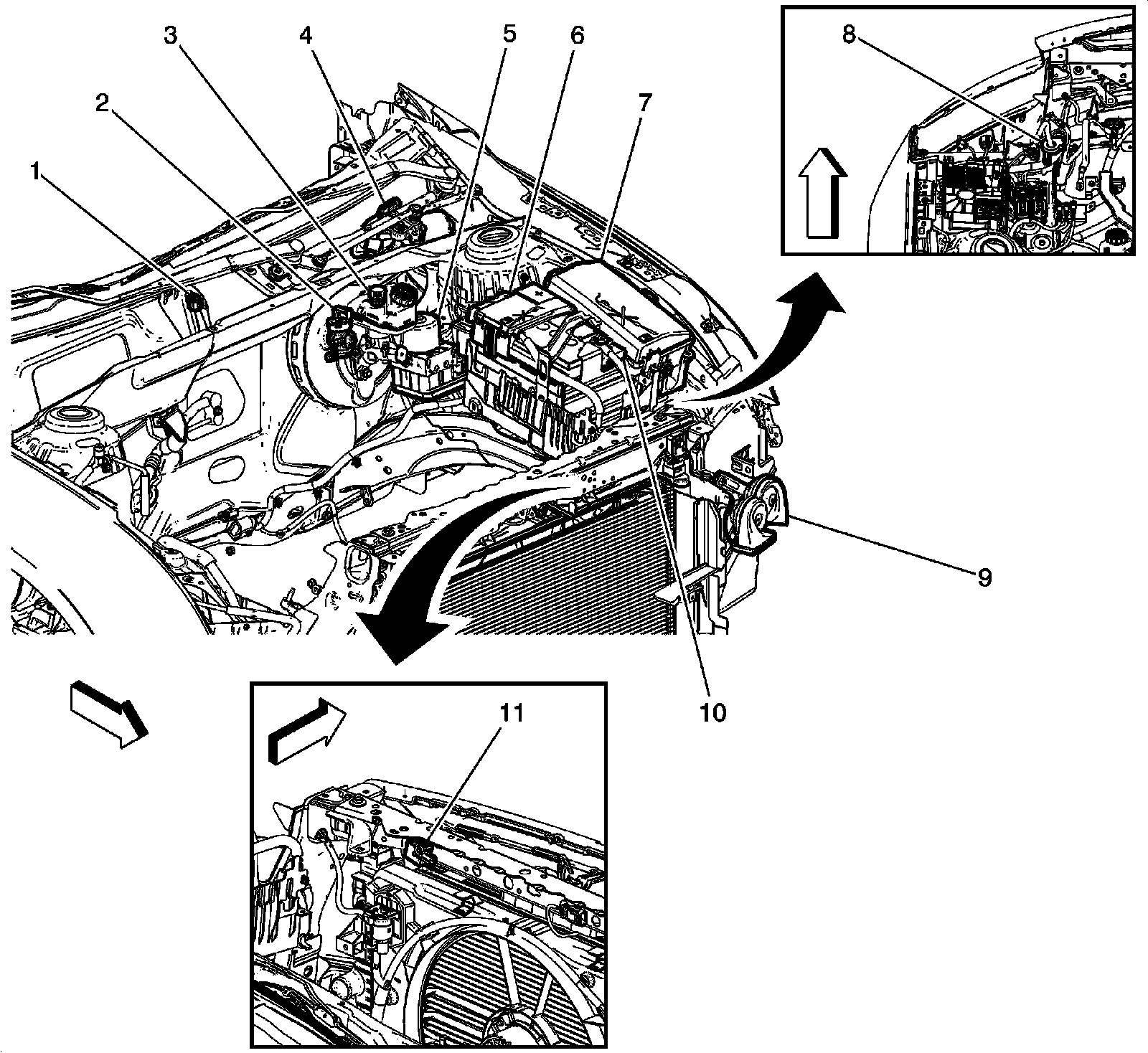

Front of Vehicle/Engine Compartment Component Views
Left Side of Engine Compartment Components
1 - B108 Air Quality Sensor (C68)
2 - B19C Brake Booster Vacuum Switch
3 - B20 Brake Fluid Level Switch
4 - M75 Windshield Wiper Motor
5 - K17 Electronic Brake Control Module
6 - X50D Fuse Block - Battery
7 - X50A Fuse Block - Underhood
8 - B18 Battery Current Sensor
9 - P12 Horn
10 - C1 Battery
11 - B59L Front Impact Sensor - Left
