2012 Chevrolet Cruze L4-1.8LFACTORY OEM SERVICE PROCEDURE
Park System Components

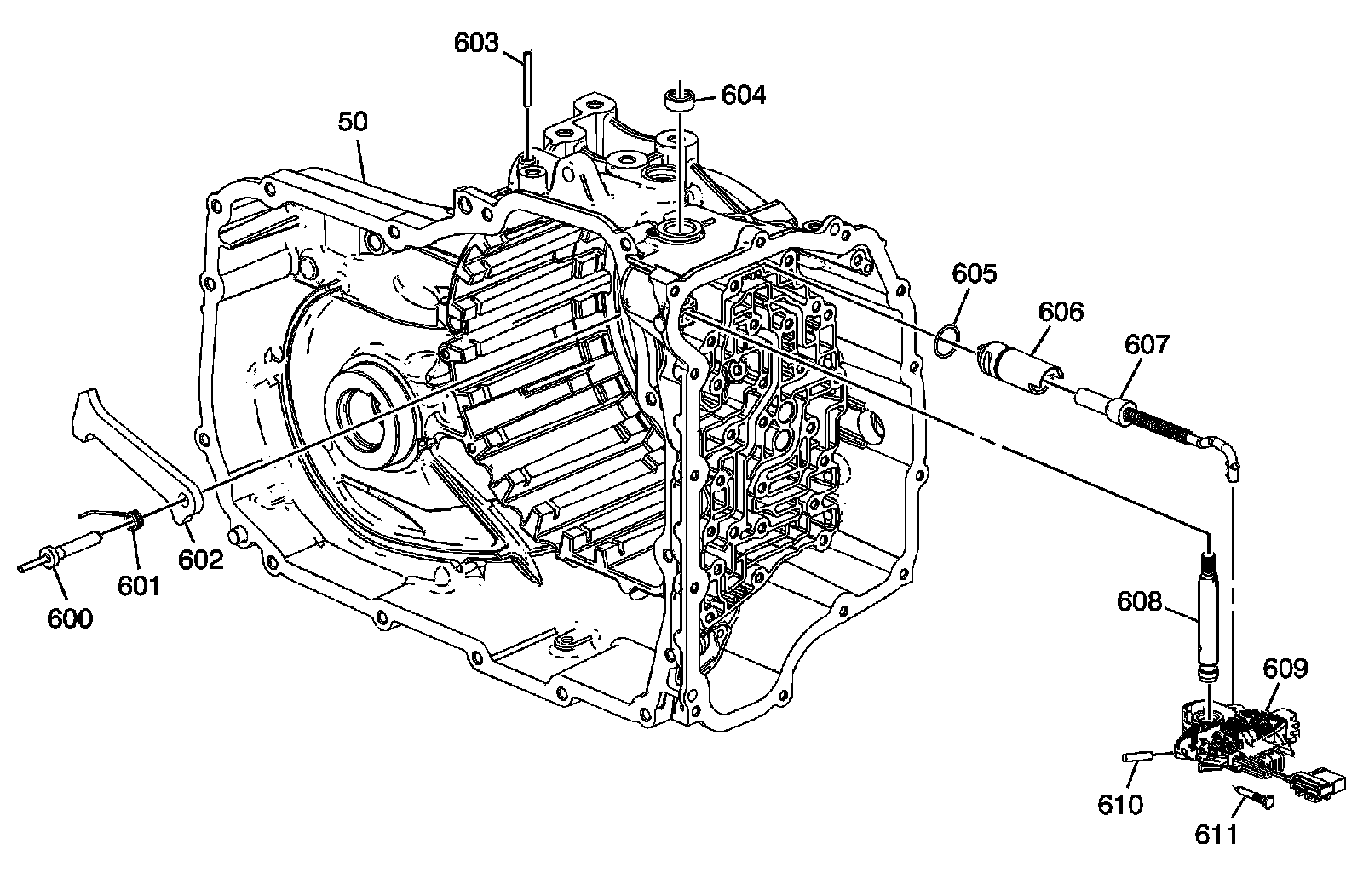

Disassembled Views (6T40/45)
Park System Components
50 - A/Trans Case
600 - Park Pawl Shaft
601 - Park Pawl Spring
602 - Park Pawl
603 - Park Pawl Actuator Guide Pin
604 - Manual Shift Shaft Seal
605 - Park Pawl Actuator Guide Seal
606 - Park Pawl Actuator Guide
607 - Park Pawl Actuator Assembly
608 - Manual Shift Detent Lever Shaft
609 - Manual Shift Detent (w/Shaft Position Switch) Lever Assembly
610 - Manual Shift Detent Lever Pin
611 - Manual Shift Shaft Pin
