2012 Chevrolet Corvette V8-6.2L SCFACTORY OEM SERVICE PROCEDURE
Behind the Instrument Panel Components- HVAC Module
Instrument Panel/Center Console Component Views

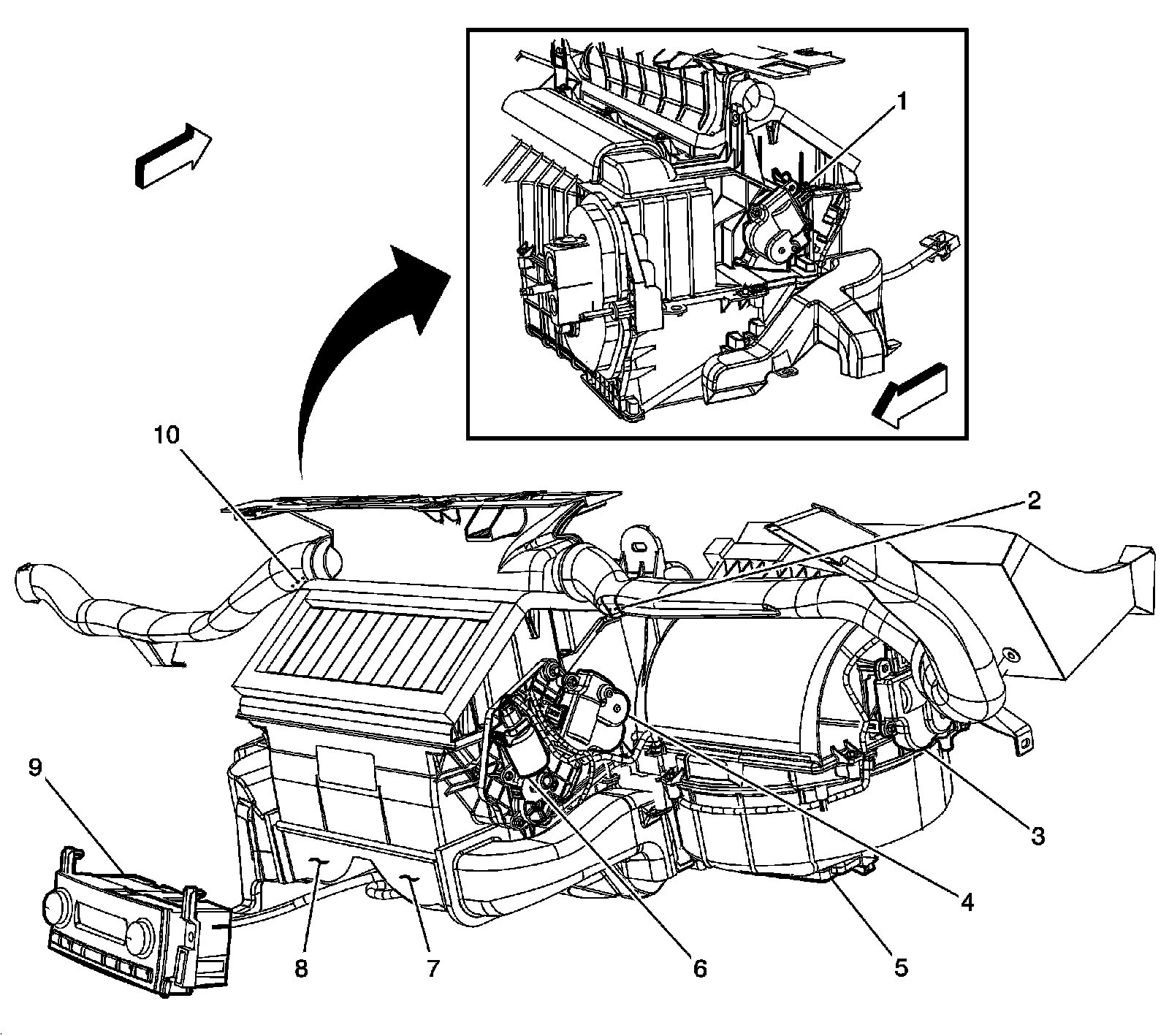

Behind the Instrument Panel Components- HVAC Module
1 - Air Temperature Actuator- Left
2 - Air Temperature Sensor- Upper Right
3 - Recirculation Actuator
4 - Air Temperature Actuator- Right
5 - Blower Motor and Blower Motor Control Module
6 - Mode Actuator
7 - Air Temperature Sensor- Lower Right
8 - Air Temperature Sensor- Lower Left
9 - HVAC Control Module
10 - Air Temperature Sensor- Upper Left
